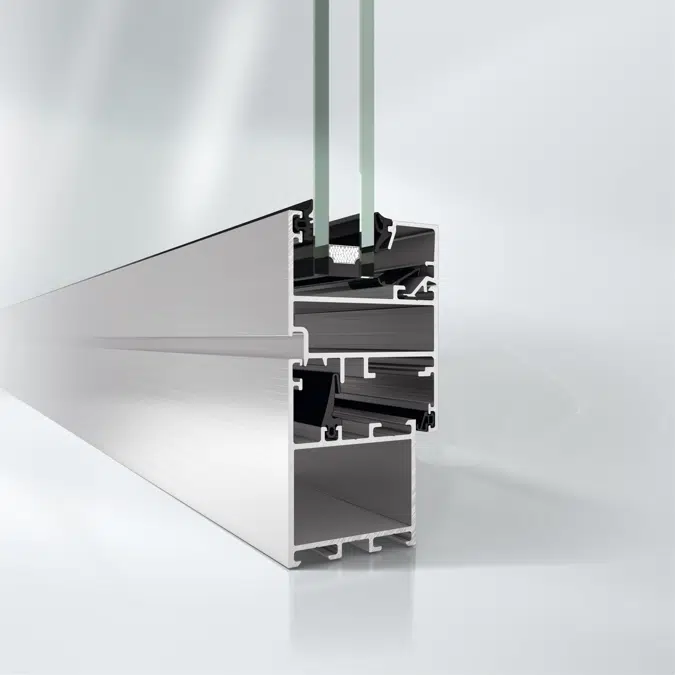

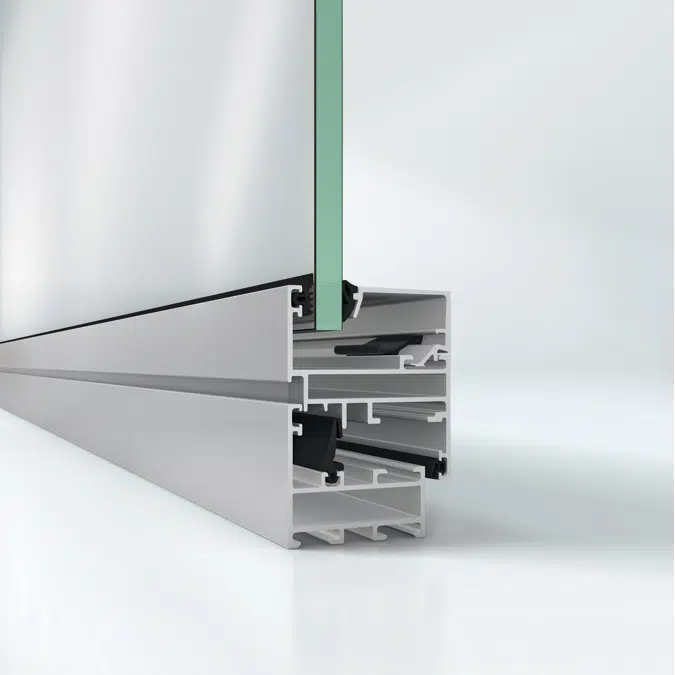

Window AWS 50.NI, Tilt/Slide

Aluminium Window system with a basic depth of 50 mm

The Schüco AWS 50.NI (Non Insulated) window system offers extensive solutions for a wide range of requirements as well as specifically for interior construction.

A vent weight of up to 160 kg can be supported with the Schüco AvanTec SimplySmart fitting,
Additional corner angles ensure smooth mitred vent corners
Smooth single-chamber profiles for simple, robust connections
Glass thicknesses of 4 mm - 40 mm can be used
Burglar resistance up to RC 1 N in accordance with DIN V ENV 1627
Compatible with the Schüco ASS 50 FD.NI series

Özellikler

Schüco AWS 50.NI, non-insulated aluminium window system
With 50 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge.
The window designs are provided with a central gasket.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.

Profile depths:
- 50 mm Outer frame, mullion, transom
- 60 mm Vent frame (window)
Profile face widths:
- 88 mm Outer frame, bottom
- 66 mm Outer frame, side and top
- 88 mm Mullion
- 88 mm Transom
- 40 mm Vent frame (window)
- 40 mm Vent frame (window door)
- 61 mm Double-vent profile (window)
