Bottom operated pinewood tophung roof window - GPL

4.5(65 incelemeler)

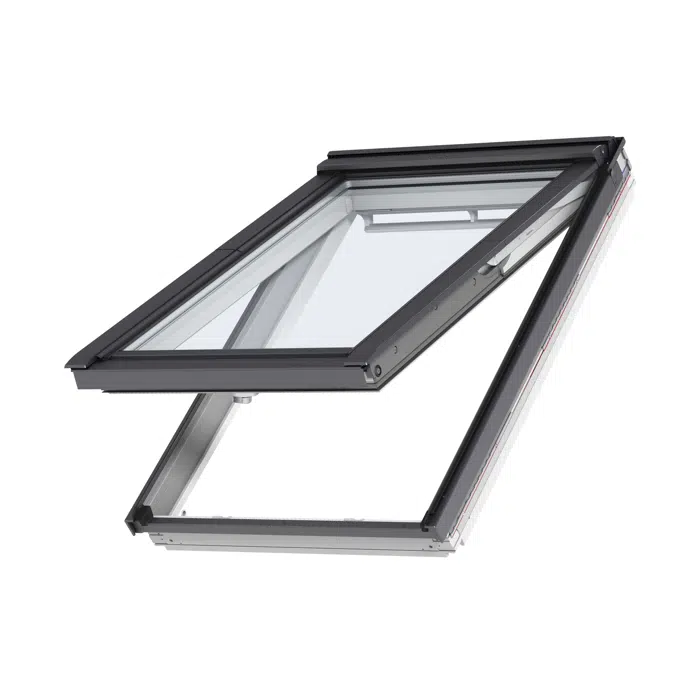

VELUX, roof window GPL is top-hung.

Features:

The sash can remain open in any position up to an angle of 45°. The roof window is operated with a handle on the bottom sash.
The ventilation flap on the top sash allows fresh air to enter the room through a dust and insect filter.
For easy cleaning of the outer glass surface, the roof window can also be operated as a centre-pivot roof window.
Frame and sash made of laminated pine wood and ventilation flap made of pine wood are finished with triple coat.
The exterior of the frame and sash is metal-clad and therefore maintenance-free.
The window is equipped with an insulating glass unit.

Window Sizes :	External frame W x H mm:	Effective daylight areas: m²	Geometric free area: m²
CK04	550 x 978	0.29	0.39
CK06	550 x 1178	0.37	0.48
FK06	660 x 1178	0.47	0.60
FK08	660 x 1398	0.58	0.72
MK04	780 x 978	0.47	0.58
MK06	780 x 1178	0.59	0.72
MK08	780 x 1398	0.72	0.87
MK10	780 x 1600	0.85	1.01
PK04	942 x 978	0.60	0.72
PK06	942 x 1178	0.75	0.89
PK08	942 x 1398	0.92	1.08
PK10	942 x 1600	1.07	1.25
SK06	1140 x 1178	0.95	1.09
SK08	1140 x 1398	1.16	1.32
SK10	1140 x 1600	1.35	1.54
UK04	1340 x 978	0.91	1.05
UK08	1340 x 1398	1.40	1.58

VELUX roofwindows roofwindow roof windows roof window skylight skylights Top hung TOPHUNG

Özellikler

Background Ventilation (via Ventilation Flap - based on double glazed window):

Ventilation Capacity	at 4Pa :	at 8Pa :	at 10Pa :	at 20Pa :
CK04	4.0 l/s	5.7 l/s	6.4 l/s	9.3 l/s
CK06	4.0 l/s	5.7 l/s	6.4 l/s	9.3 l/s
FK06	4.8 l/s	6.9 l/s	7.8 l/s	11.3 l/s
FK08	4.8 l/s	6.9 l/s	7.8 l/s	11.3 l/s
MK04	5.8 l/s	8.4 l/s	9.5 l/s	13.7 l/s
MK06	5.8 l/s	8.4 l/s	9.5 l/s	13.7 l/s
MK08	5.8 l/s	8.4 l/s	9.5 l/s	13.7 l/s
MK10	5.8 l/s	8.4 l/s	9.5 l/s	13.7 l/s
PK04	7.1 l/s	10.2 l/s	11.5 l/s	16.6 l/s
PK06	7.1 l/s	10.2 l/s	11.5 l/s	16.6 l/s
PK08	7.1 l/s	10.2 l/s	11.5 l/s	16.6 l/s
PK10	7.1 l/s	10.2 l/s	11.5 l/s	16.6 l/s
SK06	8.5 l/s	12.3 l/s	13.9 l/s	20.1 l/s
SK08	8.5 l/s	12.3 l/s	13.9 l/s	20.1 l/s
SK10	8.5 l/s	12.3 l/s	13.9 l/s	20.1 l/s
UK04	10.0 l/s	14.5 l/s	16.3 l/s	23.5 l/s
UK08	10.0 l/s	14.5 l/s	16.3 l/s	23.5 l/s

Ventilation :	Equivalent Area : mm²	Geometrical Free Area : mm²
CK**	2600	2800
FK**	3100	3700
MK**	3700	4500
PK**	4600	6100
SK**	5600	7200
UK**	6600	10600

Finishes:

Internal -
Laminated pinewood coated with impregnation in two variations:

Variation 1 - Clear Lacquer.
Variation 2 - White Paint (NCS standard colour: S 0500-N, nearest RAL standard colour: 9003).

External –
Maintenance-free cover parts in three variations:

Variation 1 - Lacquered Aluminium (NCS standard colour: S 7500-N, nearest RAL standard colour 7043).
Variation 2 - Untreated Copper.
Variation 3 - Titanium Zinc.

Teknik özellikler

Benzersiz ref.GPL
Ürün ailesiTop hung
Ürün grubuManual bottom operated
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-01-21
Baskı numarası4

Bağlantılar

As builthttps://installationdetail.velux.com/
Ürün URL’sihttps://www.velux.co.uk/technical-library/sloped-roof-windows/standard-windows/manual/gpl
Kurulum talimatlarıhttps://www.youtube.com/watch?v=lr-T-QGBoas
Talimat videosuhttps://www.youtube.com/@VELUXsimulationtools
Ürün belgelendirmesihttps://www.velux.com/ce-marking
Teknik açıklamahttps://contenthub.velux.com/api/public/content/bed3d-3c577-93412_downloadOriginal?v=330b79a4

İlgili

Ana malzemeÇam
İkincil malzemeCam

Sınıflandırma

BIMobject kategorisiPencereler - Çatı Penceresi
IFC sınıflandırmasıPencere
ETIM KoduEC003112
ETIM AdıSkylight
UNSPSC adıVented skylights
UNSPSC kodu30171802
Uniclass 2015 koduSs_30_30_72
Uniclass 2015 açıklamasıRooflight and roof window systems
CSI MasterFormat 2014 kodu08 61 00
CSI MasterFormat 2014 başlığıRoof Windows
OmniClass numarası23-17 13 23
OmniClass başlığıRoof Windows
CSI UniFormat II koduB3020
CSI UniFormat II başlığıRoof Openings
