Shade Systems Engineered for Comfort and Endurance

Building-attached sun control engineered for facade integration — Brow Type horizontal sunshades, Vertical Type fins, and Shadow Box window surrounds — delivering solar performance and design impact across exterior envelopes.

Özellikler

Sun Control System Type

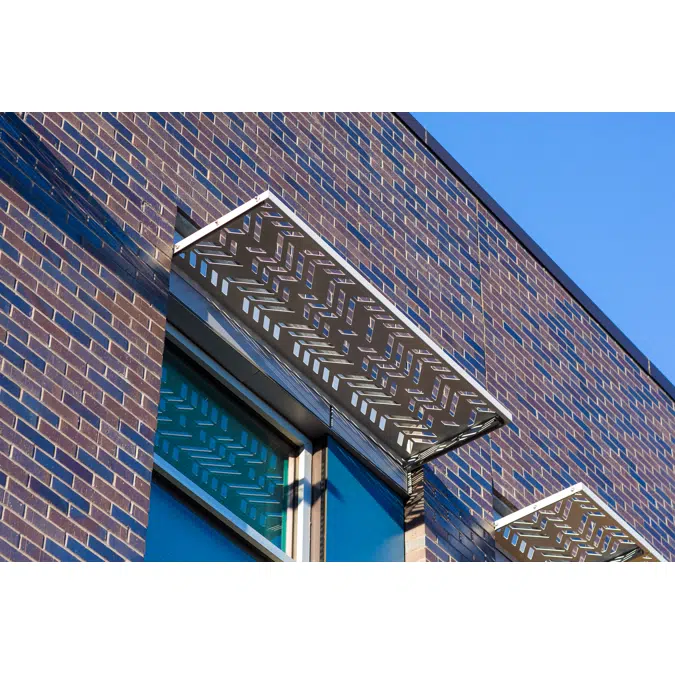

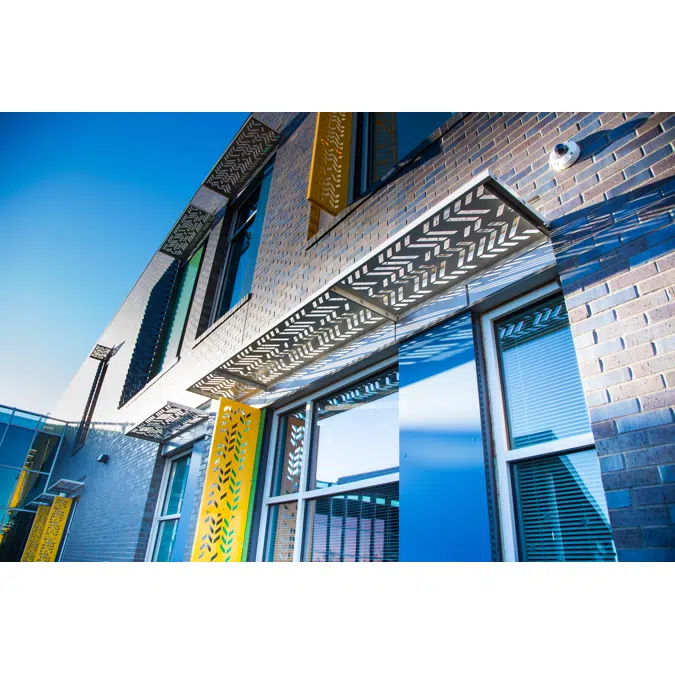

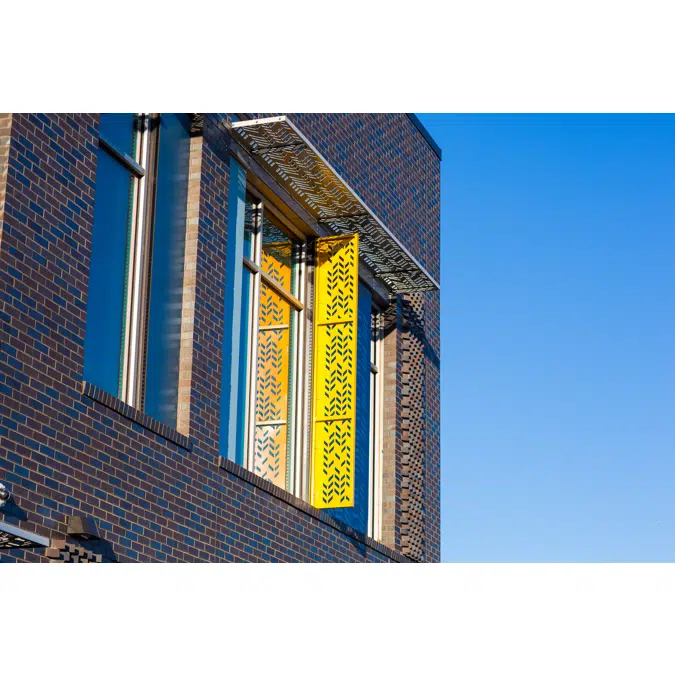

Brow (Type B)
Standard Dimensions: 12 x 36 up to 24 x 72, various standard dimensions
Panel Material: Aluminum 1/8"
Finish: Powder Coat (AAMA 2604) $², PVDF (AAMA 2605)¹ $$

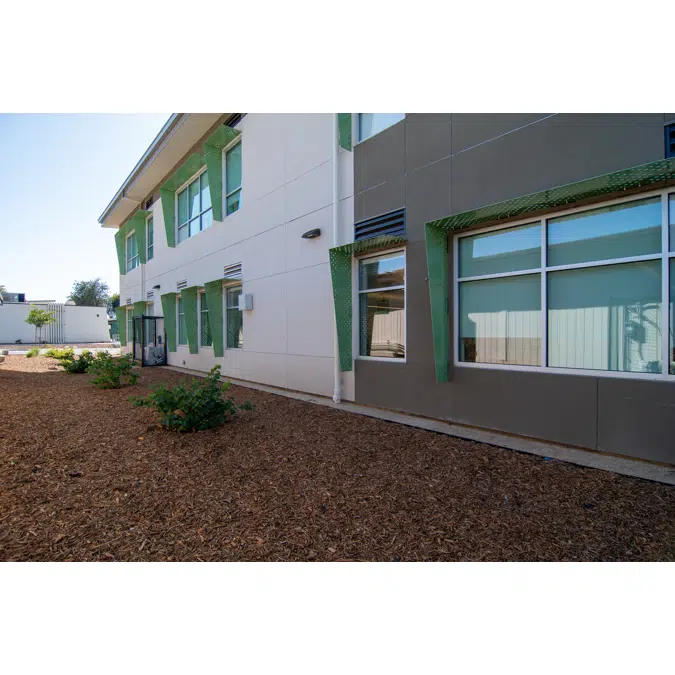

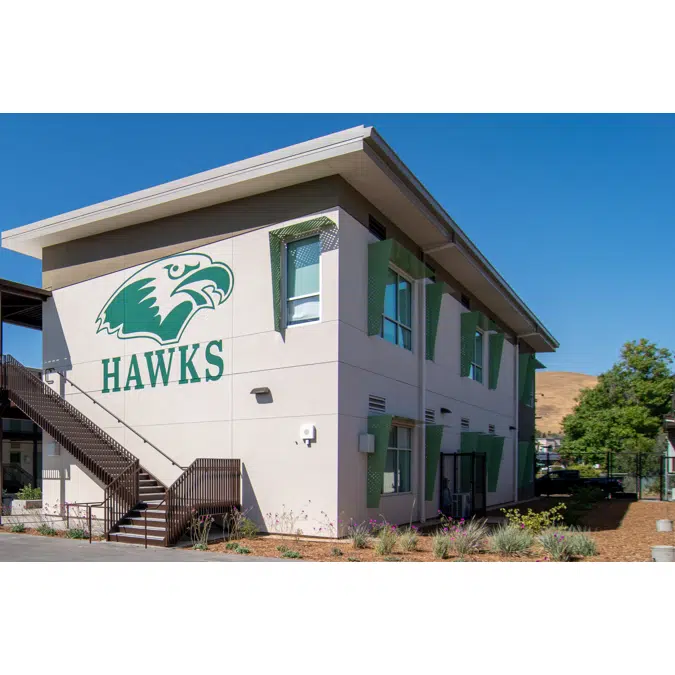

Vertical (Type V)
Standard Dimensions: 12 x 42 up to 24 x 114, various standard dimensions
Panel Material: Steel 14 Ga, Steel 11 Ga
Finish: Zinc Rich Primer + Powder Coat, Mill Finish (paint by others)
Shadow Box (Type SB)
Standard Dimensions: 60" x 48 up to 120" x 120", various standard dimensions
Panel Material: Aluminum 1/4"
Finish: Powder Coat (AAMA 2604) $², PVDF (AAMA 2605)¹ $$
(1) Available as an Upgrade
(2) $ to $$$: Indicates finish type comparative cost.
