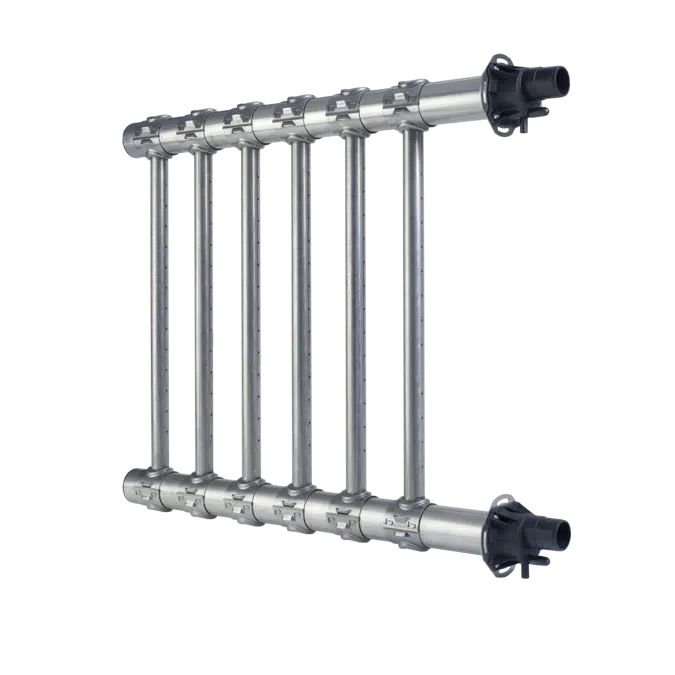

OptiSorp - Steam Distribution System

OptiSorp System 1: Up to 45 kg/h steam capacity

OptiSorp System 2: Up to 90 kg/h steam capacity

OptiSorp System 3: Up to 135 kg/h steam capacity

OptiSorp System 4: Up to 180 kg/h steam capacity

OptiSorp Lengts (Dimension L):

• 350 mm, 500 mm, 650 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm, 2000 mm, 2300 mm, 2500 mm

OptiSorp Distance between Collector Pipes (Dimension D2):

• System 1: 350 mm, 500 mm, 650 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm

• System 2: 350 mm, 500 mm, 650 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm, 2000 mm

• System 3: 2x 325 mm, 2x 400 mm, 2x 500 mm, 2x 600 mm, 2x 750 mm, 2x 900 mm, 2x 1050 mm, 2x 1200 mm, 2x 1350 mm, 2x 1500 mm

• System 4: 2x 300 mm, 2x 375 mm, 2x 475 mm, 2x 575 mm, 2x 725 mm, 2x 875 mm, 2x 1050 mm, 2x 1200 mm, 2x 1350 mm, 2x 1500 mm
