Elvoron CPL - Vertical Platform Lift

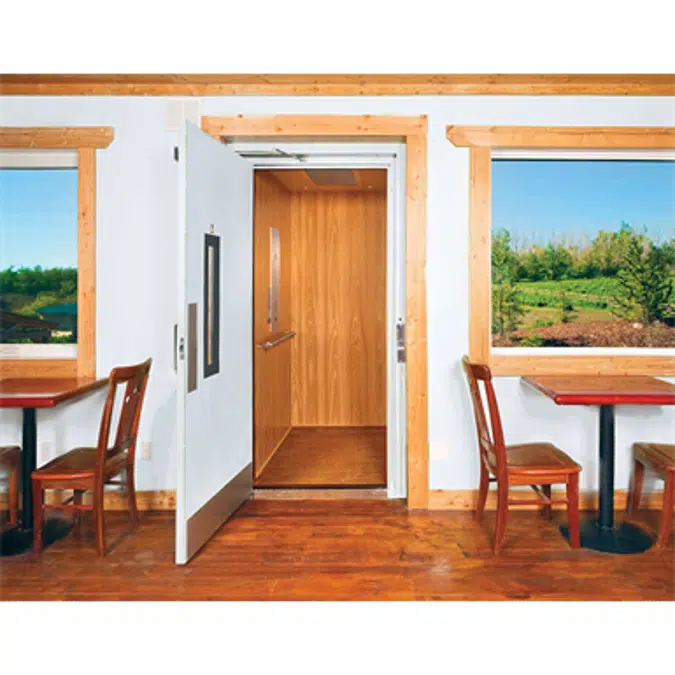

What is an Elvoron CPL Lift?  The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling. It looks and feels like a small elevator but costs much less. The Elvoron CPL is designed to provide access for people with disabilities in commercial buildings.

Features

• Available in 3 standard car sizes as well as custom sizes up to 21 square feet
• Standard Car Sizes:
  • 36" x 60"
  • 42" x 60"
  • 48" x 60"
• Available in 5 landing door configurations, including multiple door configurations.
• Wide choice of laminate and melamine car wall panel colors.
• Choice of three car and wall fixture colors.
• 1:2 Cable Hydraulic Drive.
• Quiet submersed pump and motor.
• Two speed hydraulic valve for smooth start and stop.
• Standard rated load of 750 lbs. - optional up to 1400lbs (635kg).
• Standard travel speed of 30 feet per minute.
• Travel range: USA (A18.1): 14ft (4.2 meters). Canada (CSA B355): 23 ft (7.0 meters). Other heights: contact Garaventa Lift for more information.
• Make up to 6 stops or have a total of 6 landing doors.
• Constant pressure button operation (floor selective).
• Illuminated buttons and digital floor display.
• Automatic car lighting upon passenger entry.
• Recessed ceiling lighting using low-voltage halogen fixtures.
• Full length handrail located below the car operating panel (additional handrails can be added).
• Emergency backup power system for lights, locks and door operators.
• Emergency stop and alarm.
• Floor specific emergency battery lowering system.
• Emergency manual lowering system.
• Slack/broken cable safety brake device.
• Hostway door interlocks.
• Solid car gate with safety switch.
• UL or CSA certified components.
