Varsity® - Campus Surface‑Mounted Bike Rack
Varsity® - Campus Surface‑Mounted Bike Rack
Varsity® - Campus Surface‑Mounted Bike Rack

    Varsity® - Campus Surface‑Mounted Bike Rack

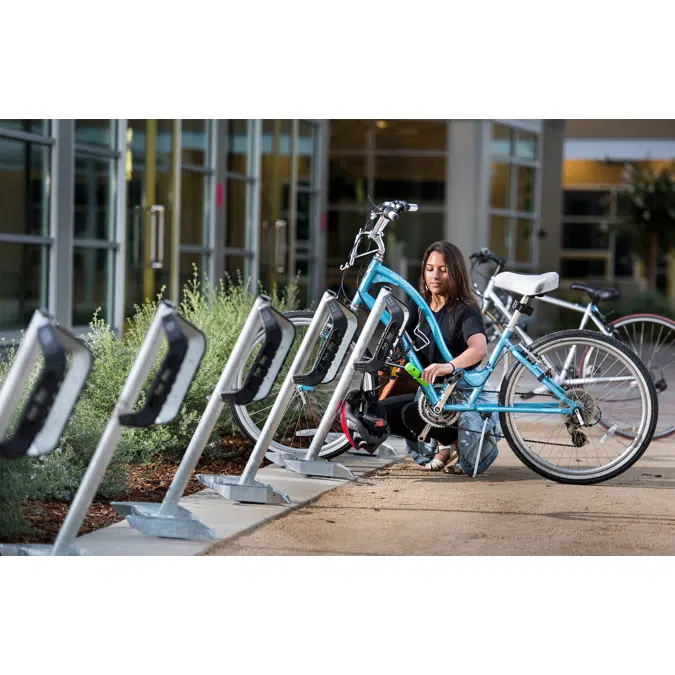

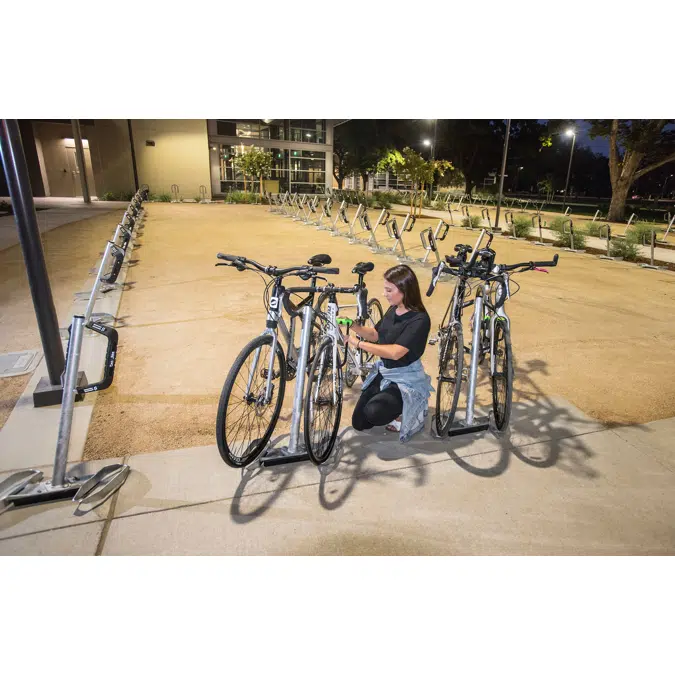

    The ASLA award winning Varsity Campus Bike Dock is currently the bicycle parking solution of choice on over 100 campuses and growing daily. The Varsity's offset wheel pockets emphasize an organized and adaptive footprint for maximizing or limiting the number of bikes in an area. This is accomplished without compromising ease of use or security. The Varsity bike rack is a thoughtfully designed parking solution for any environment. Customize your guards with color, branding or educational statements, This allows for a personalized look without the additional costs of custom coloring just the rack.

    Product Features

    • Best selling Campus University bike rack in the country.
    • Great for E-Bikes
    • Campus standard on over 100 universities
    • Wheel-troughs cradle bicycle & e-bike tires while preventing slipping & tipping
    • Handlebars are offset to prevent conflict and allow for high density parking
    • Black injection molded urethane Smart Guards protect bicycles from metal-to-metal damage
    • Customize your guard with color, branding or messaging, not the rack. Varsity exterior finish is either black powder or galvanized
    • Case-hardened steel locking loops allow U-locks to secure bicycles at 3-points of contact, locking bike frame and tire to rack, for the highest security
    • Educational QR tag, plays “how to lock your bike” video on your phone
    • College campus bicycle rack of choice in over 100 universities nationwide
    • Surface mounted only. See MBA Bike Dock for freestanding and rail installations
    规格
    • MATERIALS & FEATURES

      • 2 bicycles secured - long term or short term parking solution*
      • Black or Silver injection molded urethane Smart Guards
      • Steel locking loops
      • Wheel pocket docks
      • PC/ABS injection molded cap
      • Smart and Safe bicycle parking video QR tag

      FINISH

      • Black Polyester Powder Coat
      • (Standard) Hot Dipped Galvanized (Marine Environment)

      MOUNTING OPTIONS

      • Surface mount - Concrete (Anchors Sold Separately)
      • In-ground mount - Stinger (Stinger Sold Separately)

      SMART GUARD LABEL OPTIONS

      • Ground Control Systems Label (Standard)
      • Custom - Put your Brand, Logo, or Message, and your Color

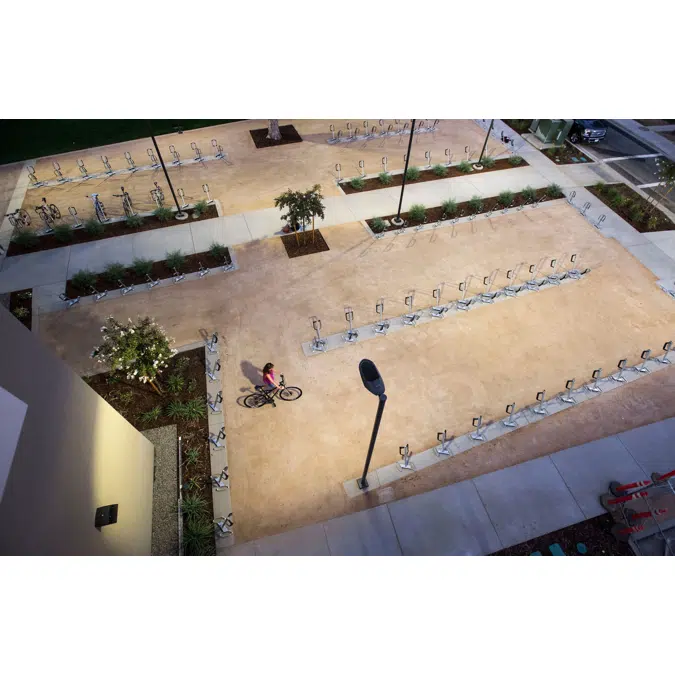

      SPACE USE RECOMMENDATIONS

      • Front of rack to wall setback to center base plate
        • Minimum 18” perpendicular to center base plate
        • Minimum 16” diagonal 30°
      • Racks parallel to a side wall
        • Minimum 24” from center base plate
      • Distance between racks
        • Minimum 32” center to center
        • Recommended 38 1/2” perpendicular OR 44 1/2” diagonal
      • Street setbacks
        • Parallel to street minimum: 45” from curb
        • Perpendicular to street minimum: 38” from curb where vehicle parking is present.
        • 18” where vehicle parking is not permitted.

      Please contact us for additional information on the DV215 as a long term parking solution.

    技术规格
    • 唯一参考varsity-campus-university-bike-racks
    • 产品系列Bike Parking Systems
    • 产品组Campus Rack, High‑Traffic, Surface‑Mounted
    • 类型对象(单个对象)
    • 发布日期2026-08-03
    • 版本号1
