VR1™ XL - Vertical Bike Parking Rack

The VR1 XL is the second generation of Vertical racks. With its large profile tire hook and wheel ramp, it will accommodate any sized bicycle tire with ease. The ¾” steel locking loop offers 3 points of contact for the highest locking security. The VR1 is the most versatile vertical rack around and we suggest you have at least one in every bike room. Check out our new request a free bike room layout tool and layout a bike room in seconds

Product Features

Vertical high security bike parking rack
1 bike capacity

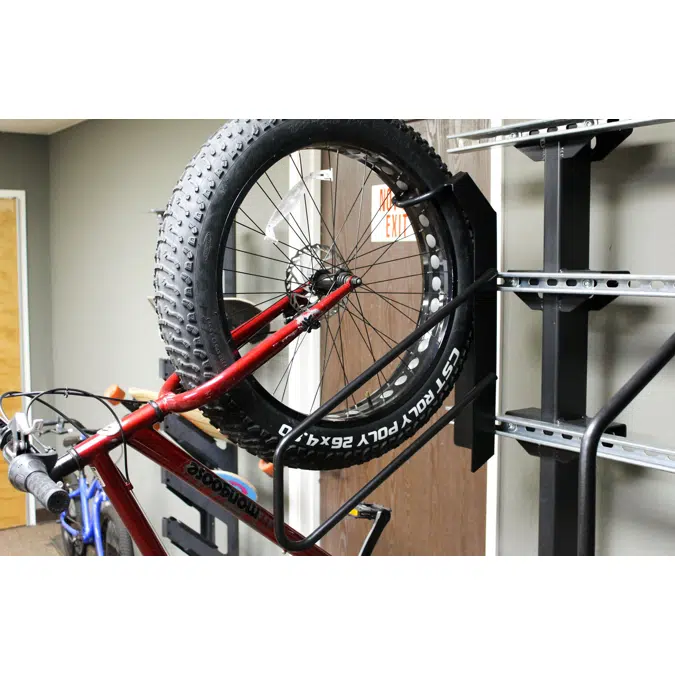

Large profile tire hook to accommodate any size bicycle tire
Wheel ramp for easy lifting
Solid locking loop provides 3 points of contact for high security
Can be mounted to any wall type

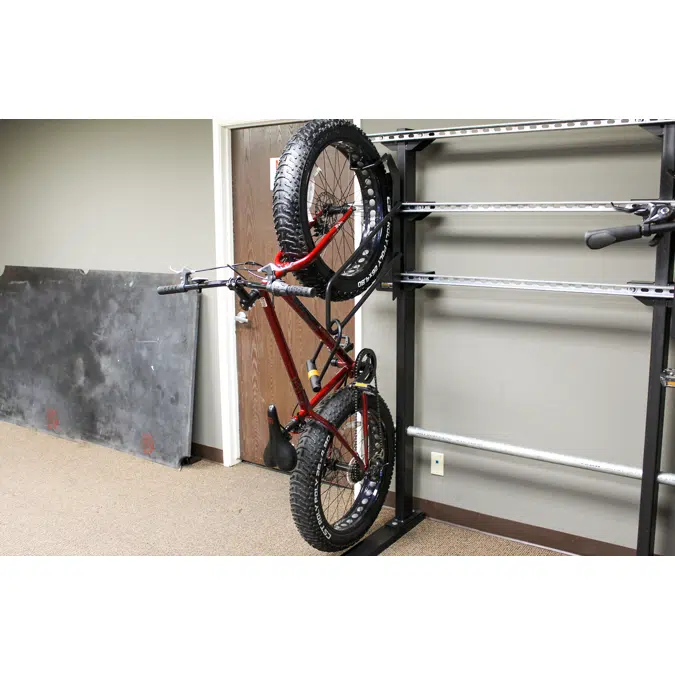

Usable on our Side/Center Stage base stations

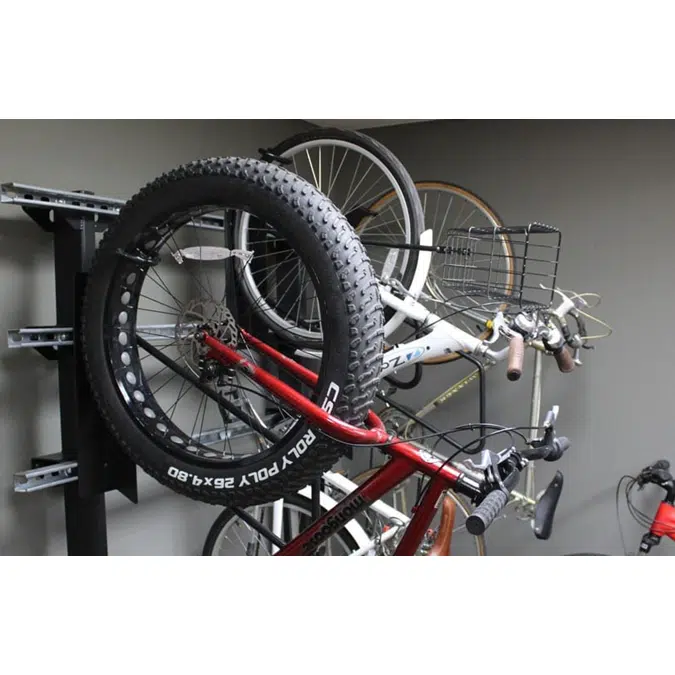

Ultra space saving when racks are staggered

规格

MATERIALS & FEATURES
- Steel ASTM A36 sheet metal
- Laser cut steel bent and welded forms the base plate
- Lock bar made from 3/4” A36 solid steel rod controls bikes and prevents rubbing
- Polyvinyl sleeve on hook to prevent metal-to-metal contact when parking and removing bike
- Tire hook has a large profile to accommodate fat tire bikes (up to 4.8” rims), and has a dimpled center to locate smaller mountain bike and road bike tires.
FINISH
- Black Polyester Powder Coat
MOUNTING OPTIONS
- Direct surface mount to concrete walls
- Can be anchored directly into concrete masonry units
- Wood studs/ledger board
- Product can be mounted onto Side Stage™ and
- Center Stage™ systems when no appropriate backing exists, or wall mounting is not desirable
SPACE USE RECOMMENDATIONS
- Distance from ground to bottom of rack minimum: 47”
- Ceiling height: 82” minimum, 92“ for offset installation
- Side wall to center of rack: 18” Minimum, 22” Recommended
- Distance between racks center to center:
  - For racks not offset: 24” Minimum, 28” Recommended
  - For racks offset: 12” Minimum, 14” Recommended

技术规格

唯一参考vr1-xl-vertical-bike-parking-racks
产品系列Bike Parking Systems
产品组Vertical, Single‑Sided, Space‑Saving Rack
类型对象（单个对象）
发布日期2026-08-03
版本号1
