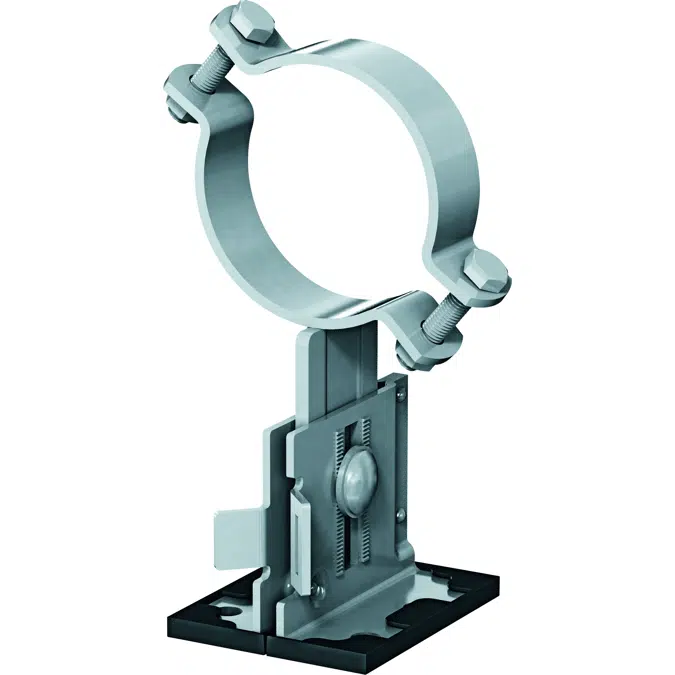

Pipe shoe MP-PS HVAC

Pipe shoes

Features:

1) One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete

2) Extensive software support – simplify calculation by using Hilti FixPoint Calculator, BIM/CAD libraries.

3) Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components

4) Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place

5) Wider clamping range – suitable for various different pipes with or without additional inlays

Applications:

1) Fastening pipes to steel beams, concrete or Hilti modular support girders

2) Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities

3) Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm

4) Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
