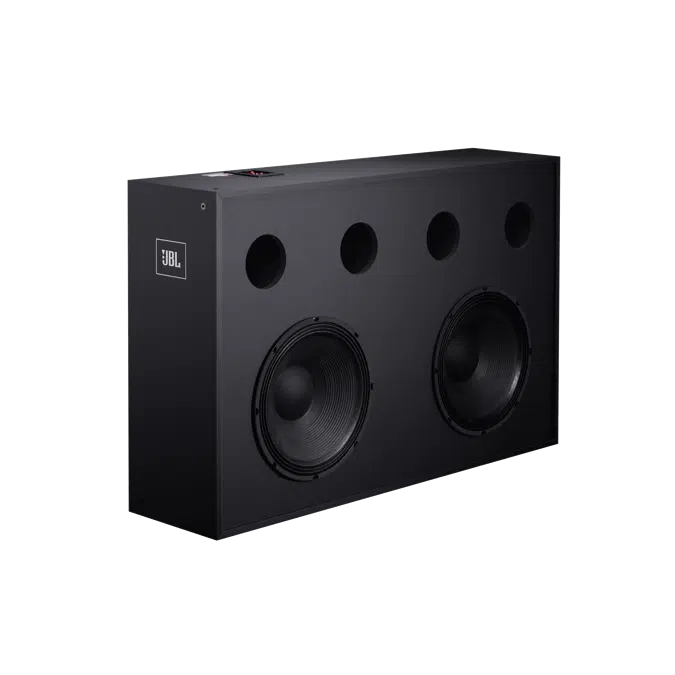

4281F Professional High-Power Cinema Subwoofer

The JBL 4281F cinema subwoofer, part of the JBL Cinema Series, delivers fidelity and performance synonymous with the JBL name at a competitive price point for cost-conscious theater owners seeking to offer a premium sound experience.

The 1,600-watt 4281F delivers room-shaking low end for a variety of cinema configurations, including Dolby Atmos and DTS:X installations. The 4281F works seamlessly with the entire JBL Cinema Series, which includes two 3-way screen speakers and a surround speaker. Combine Cinema Series speakers with the JBL CPi2000 cinema processor and Crown XLC Series amps to build a fully integrated JBL cinema sound solution.

Features

  • Shallow 14.97-inch (355mm) depth saves space behind screens
  • Connectors are mounted on enclosure top to preserve minimum depth
  • Built-in rigging points facilitate wall mounting for immersive sound installations such as Dolby Atmos and DTS:X
  • Binding-post input connectors are consistent with other JBL cinema speakers and easy to wire
  • Footprint matches both the JBL 3153 and 4253 screen speakers and the C200 cinema speaker series to build complete system solutions
  • 4-ohm impedance; can be driven with Crown XLC Series amps
  • 1,600W rated power
  • 139 dB peak SPL
  • Frequency response: 30 Hz–500 Hz (-10 dB) (4π)
  • 4-pin connectors allow driving the two transducers separately (discrete mode) or together (parallel mode)

More Details

Premium Sound Without the Premium Price
With the Cinema Series, it’s never been easier to step into the stunning sound of a JBL cinema system. The Cinema Series 4281F subwoofer is engineered and built to the same standards of all other JBL cinema products, providing powerful, punchy low-end coverage in the 30–500 Hz range; pair them with Cinema Series 3153 and 4253 screen speakers and 8102 surrounds for a complete solution.

Rock-Solid and Reliable
Trust JBL Cinema Series speakers and subs to provide peak performance throughout the life of your investment: Systems are designed for superior overall efficiency; transducer-protection circuitry ensures long-term stability.

Deploy With Ease, Any Way You Please
The Cinema Series is designed for streamlined system setup and operation in a range of configurations. 4281F subwoofers operate in 4-ohm mode, enabling them to be driven with Crown XLC Series amps. The 4281F’s 4-pin connectors allow driving the two transducers separately (discrete mode) or together (parallel mode). Hardware is engineered for maximum versatility, with enclosure-top input terminals and binding-post connectors.

Monitor System Health
Accurate diagnostics help keep your system running at peak performance: Crown XLC amplifiers monitor the status of amplification and speaker loads through third-party control and TMS systems when used with the JBL CPi2000 processor; front-panel indicators monitor key statistics such as signal, clip, bridged operation, power standby and fault.

Build an Integrated Sound System
Complete your JBL cinema sound system with the JBL CPi2000 cinema processor, which provides audio enhancement including DSP, room EQ tuning, volume control and system fault detection. The JBL CPi2000 processor includes Cinema Series speaker presets for better sound and performance and easier deployment, and can send amplifier and speaker status to a central TMS (Theater Management System) control system.

规格
  • SYSTEM TYPE: Subwoofer

    FREQUENCY RANGE (-10 dB): 30 Hz–500 Hz

    SYSTEM IMPEDANCE: Parallel mode: 4Ω

    Discrete mode: 8O x 2

    SYSTEM POWER: 1,600W continuous

    SENSITIVITY (4 PI): 98 dB

    MAX PEAK SPL (2 PI): 139 dB

    TRANSDUCERS: 2 x 18”

    COMPLIANCE: CE

    MATERIAL: MDF

    COLOR/FINISH: Matte black, vinyl

    CONNECTORS: Binding post

    RIGGING SYSTEM: Four rigging points for hanging

    WEIGHT: 79.2 kg (174.61 lb)

    DIMENSIONS (D x W x H): 355 x 1454 x 933 mm (13.98 x 57.24 x 36.73 in)

技术规格
  • 唯一参考4281f_professional-high-power-cinema-subwoofer
  • 产品系列Cinema Sound
  • 产品组Medium Format
  • 类型对象(单个对象)
  • 发布日期2021-11-14
  • 版本号1
相关
  • 设计国家/地区美国
  • 制造国家/地区美国
分类
  • BIMobject 类别电子 - 音频电子
  • IFC 分类对象
  • UNSPSC 名称Audio and visual presentation and composing equipment
  • UNSPSC 代码4511
  • Uniclass 1.4 代码L76116
  • Uniclass 1.4 说明Loudspeakers
  • Uniclass 2.0 代码PR-75-06-49
  • Uniclass 2.0 说明Loudspeakers
  • Uniclass 2015 代码Pr_70_75_36_50
  • Uniclass 2015 说明Loudspeakers
  • NBS 参考代码75-06-49
  • NBS 参考描述Loudspeakers
  • CSI MasterFormat 2014 代码11 52 00
  • CSI MasterFormat 2014 标题Audio-Visual Equipment
  • OmniClass 编号23-37 15 29 11 13
