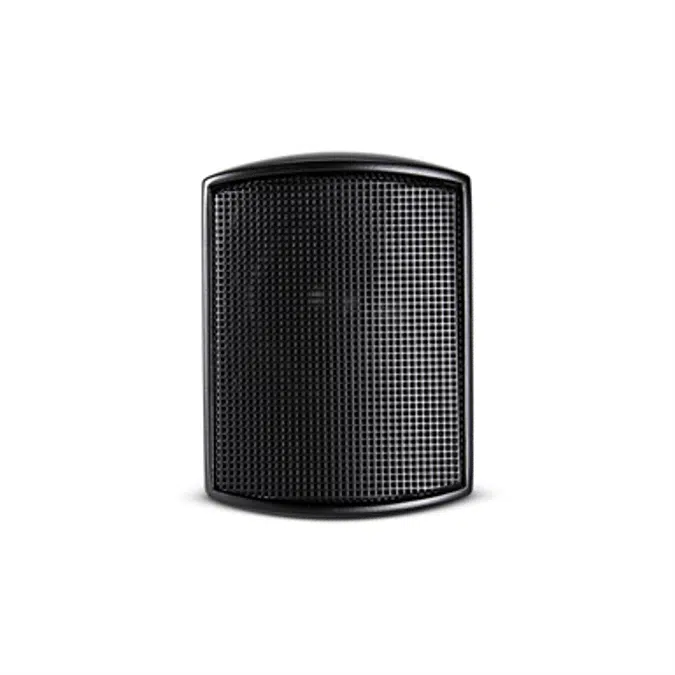

Control 52 Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

Surface-Mount Satellite Speaker for Subwoofer-Satellite
Loudspeaker System
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

FEATURES

Stylish, unobtrusive design fits into a wide variety of decors
Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
16 ohms impedance
Wall-mount brackets included
Available in black or white

Keywords: Harman

規格

SPECIFICATIONS
Frequency Range (-10 dB) 140 Hz – 20 kHz
Frequency Response (±3 dB) 180 Hz – 17 kHz
Power Capacity 50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)
30 Watts Continuous Program Power (100 hrs)
15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity 85 dB (4.0V/1m = 1W)
82 dB (2.83V, 1m)
Nominal Coverage Angle 150° x 150° (omnidirectional)
Rated Maximum SPL (1m) 94 dB average, 100 dB peak
Nominal Impedance 16 ohms
Transducer Driver 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connector Removable locking 2-pin connector with screw-down terminals.
Max wire 12 AWG (2.5 mm2)
Material High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D) Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)
Wall bracket: 51 mm (2.0 in)
Net Weight 0.7 kg (1.5 lbs)
Shipping Weight 0.8 kg (1.8 lbs)
Included Accessories Wall bracket (both speaker and wall parts), 2-pin locking connector.

技術規格

唯一參考Control-52-Surface-Mount-Satellite-Speaker-for-Subwoofer-Loudspeaker-System
產品系列Installed Sound
產品組合Surface Mount Speakers
類型对象（单个对象）
發佈日期2019-06-22
版本號1

連結

相關

設計國家/地區美國
製造國家/地區美國

分類

BIMobject 類別电子 - 音频电子
IFC 分類对象
ETIM 代碼EC000682
ETIM 名稱Loudspeaker set
UNSPSC 名稱Audio and visual presentation and composing equipment
UNSPSC 代碼4511
Uniclass 2015 代碼Pr_70_75_36_50
Uniclass 2015 說明Loudspeakers
CSI MasterFormat 2014 代碼11 52 00
CSI MasterFormat 2014 標題Audio-Visual Equipment
OmniClass 編號23-37 15 29 11 13
OmniClass 標題Loudspeakers
