Features

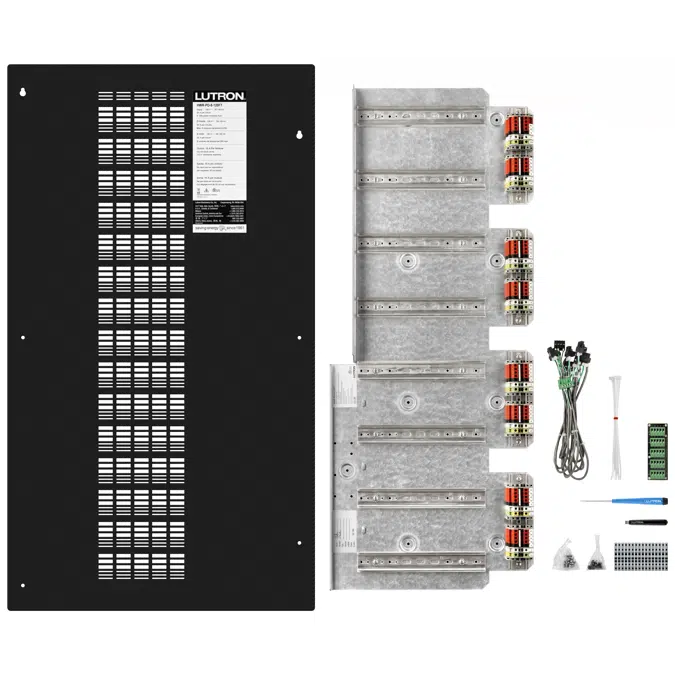

• Retrofit subplate comes with a DIN mounting plate
for up to 8 DPMs, panel cover, QS wire landing
board (QS-WLB) and QS link wiring harness
(PDW-QS-8) for easy installation.
• Subplates come ready to install DPMs (sold separately).
• Subplate can house these DPMs:
– LQSE-4S8-120-D – LQSE-4M-120-D
– LQSE-4T5-120-D – LQSE-4A5-120-D
– LQSE-2HDC-D
• Note: Reference the specification for each DPM to
ensure proper application. See Lutron application note
#817 (P/N 048817) at www.lutron.com for a list of
LiteTouch modules and recommended Lutron DPMs.
• Note: Modules not included in the list above should
not be installed on the subplate and should be installed
within a separate Lutron DIN enclosure.
• Used exclusively with the LiteTouch four-module
enclosure: 37 in H x 20 in W x 4 in D
(940 mm H x 508 mm W x 102 mm D)
• Can be used in HomeWorks systems.
• Extensively tested to ensure optimal thermal performance
with maximum load in 32 °F to 104 °F (0 °C to 40 °C)
ambient environment.
• Allows for field wiring to remain intact to reduce
installation time.
• Rated for 120 V~ applications.
