VELUX Modular Rooflight Linearlight

Linearlight is a variant from our Modular Rooflight product family. The bespoke rooflight solutions are available in several fixed and venting combinations with or without burglary resistant. This gives you the freedom to design for your specific project and needs.

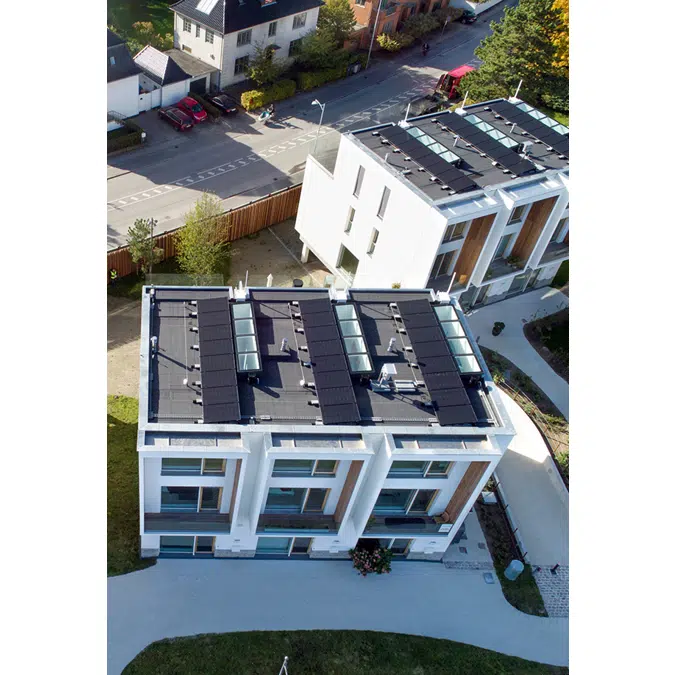

Linearlight is a row of connected flat glass rooflights with option to design wide, uninterrupted daylight sources.

Suitable for:

Flat and sloped roofs from 0° up to 15°, with 0° in lateral direction
Recommended minimal installation pitch of 5°
Flat roofing material
Opening length (slope direction) from 250 - 2000 mm

Key benefits:

Ideal for rows of short and wide rooflights
Option to design very wide, uninterrupted daylight sources
Ideal for corridors
Prefabricated top unit, built-in upstand and connector system for fast installation
Fixed and/or comfort venting solution
Bespoke sizes - ideal for refurbishment projects

The product keywords cover: VELUX rooflight roof light skylight roofwindow roofwindows roof window roof windows lantern roof glazing continuous roof light

規格

Linearlight fixed and/or venting
Linearlight is a unique solution that by placing modules side by side form a continuous system without the need for additional support. The solution consists of pure fixed modules, pure venting modules or a combination of both, based on customer wishes.
The upstand with advanced connector system and drainage gutter ensures a watertight and airtight connection between the modules. A minimized beam ensures a beautiful connection on the inside.
Linearlight Fixed is available as burglary-resistant versions according to EN 1627:2011 and NEN 5096-2012+A1:2015: Class 2 (RC 2).

VELUX Modular Rooflight modules are supported by a 10-year guarantee. Actuators and other electrical components that are part of the modular system come with a three-year guarantee.

VELUX Commercial specialists can offer support throughout design, specification and installation.
Based on customer requirements a static calculation on snow and windload will be made by VELUX Commercial for each building situation.
