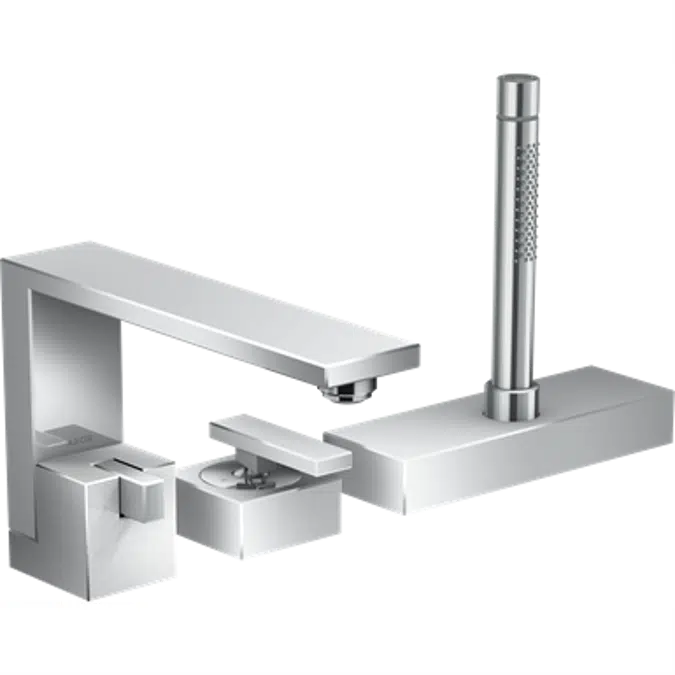

AXOR Edge 3-h.bath mix.diamond cut CN chr

规格

规格

• Surfaces: - 46431007 Chrome - 46431137 Polished Bronze - 46431307 Polished Red Gold - 46431337 Polished Black Chrome - 46431997 Polished Gold Optic Specification: • consists of: 3-hole rim mounted single lever bath mixer, baton hand shower, shower holder • 2 functions • projection: 210 mm • spray type mixer: normal spray • spray type hand shower: Rain, Mono • maximum pull-out length of hand shower: 1.45 m • maximum flow rate at 3 bar: 19 l/min • flow rate for bath spout at 3 bar: 19 l/min • flow rate of hand shower at 3 bar: 7 l/min • ceramic cartridge • temperature limitation adjustable • non-return valve • suitable for continous flow water heaters • connection dimension: DN15 • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

技术规格

技术规格

• 唯一参考46431007
• 产品系列AXOR Edge
• 产品组Bath mixers
• 类型对象（单个对象）
• 发布日期2022-11-29
• 版本号1

链接

链接

• 产品网址https://www.axor-design.com/articledetail--46431007
• 技术说明https://www.axor-design.com.cn/zh-cn/articledetail--46431007.html

相关

相关

• 设计国家/地区德国
• 制造国家/地区德国
• 净重 (Kg)8.2

分类

分类

• BIMobject 类别卫生 - 龙头/水龙头/铜器
• IFC 分类阀门
• ETIM 代码EC010862
• ETIM 名称Bath mixing tap
• UNSPSC 名称Sanitary ware
• UNSPSC 代码301815
• Uniclass 2015 代码Pr_40_20_76
• Uniclass 2015 说明Sanitary accessories
• CSI MasterFormat 2014 代码22 41 39
• CSI MasterFormat 2014 标题Residential Faucets, Supplies, and Trim
• OmniClass 编号23-31 11 00
• OmniClass 标题Faucets
• CSI UniFormat II 代码D2010
• CSI UniFormat II 标题Plumbing Fixtures
