AXOR Edge TH mod.Sel.FS 3f diam.cut CN chr

规格

规格

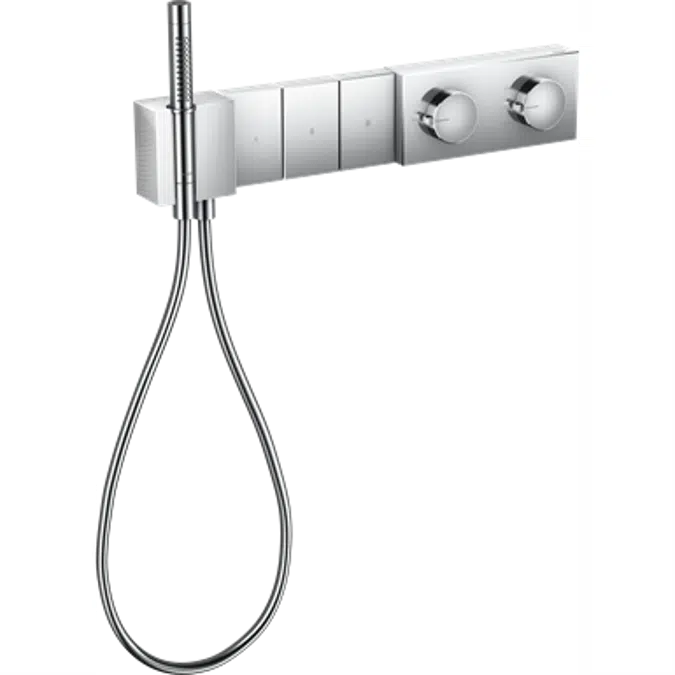

• Surfaces: - 46711007 Chrome - 46711137 Polished Bronze - 46711307 Polished Red Gold - 46711337 Polished Black Chrome - 46711997 Polished Gold Optic Specification: • consists of: Thermostatic module, shower holder, baton hand shower • 3 functions • Select push-button on/off control for 3 outlets • simultaneous use of several outlets • thermostat cartridge, Start/stop valve to operate the functions • safety lock at 40 °C • temperature limitation adjustable • hose nut: for shower hoses with cylindrical nut on both sides • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

技术规格

技术规格

• 唯一参考46711007
• 产品系列AXOR Edge
• 产品组Shower thermostat
• 类型对象（单个对象）
• 发布日期2022-11-29
• 版本号1

链接

链接

• 产品网址https://www.axor-design.com/articledetail--46711007
• 技术说明https://www.axor-design.com.cn/zh-cn/articledetail--46711007.html

相关

相关

• 设计国家/地区德国
• 制造国家/地区德国
• 净重 (Kg)7.3

分类

分类

• BIMobject 类别卫生 - 淋浴器
• IFC 分类卫浴终端
• ETIM 代码EC011329
• ETIM 名称Shower mixing tap
• UNSPSC 名称Showers
• UNSPSC 代码30181503
• Uniclass 2015 代码Pr_40_20_87_76
• Uniclass 2015 说明Shower heads
• CSI MasterFormat 2014 代码22 41 23
• CSI MasterFormat 2014 标题Residential Showers
• OmniClass 编号23-31 17 00
• OmniClass 标题Showers
• CSI UniFormat II 代码D2010
• CSI UniFormat II 标题Plumbing Fixtures
