PLEINAIR

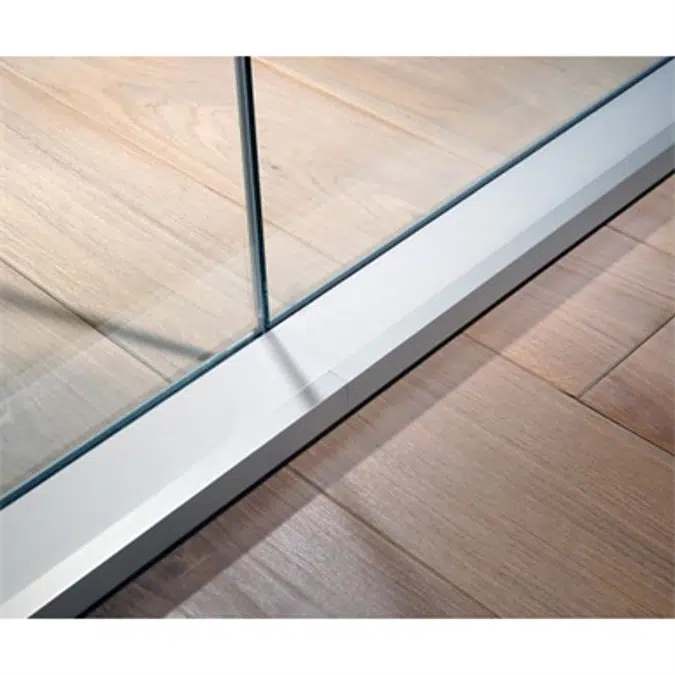

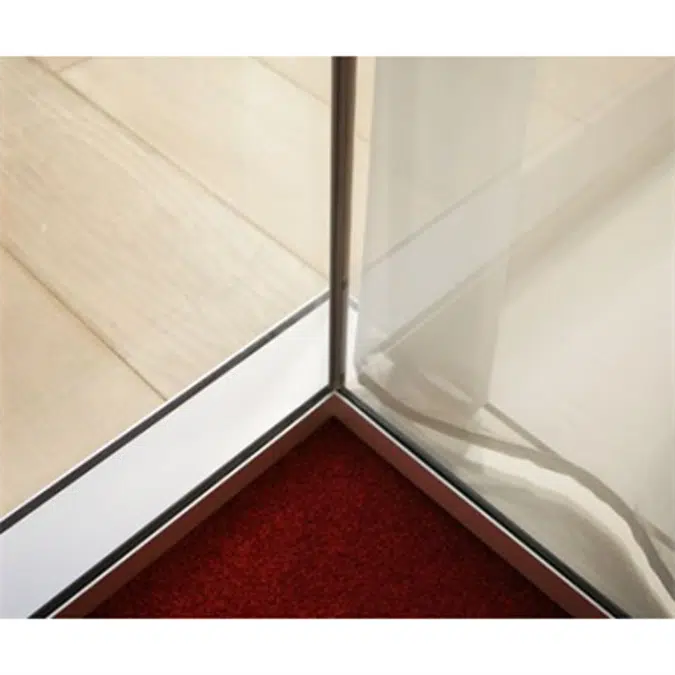

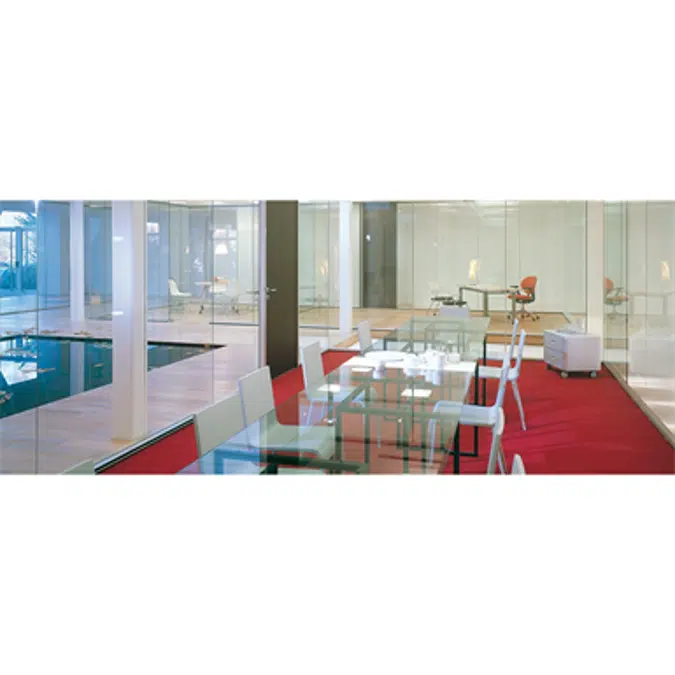

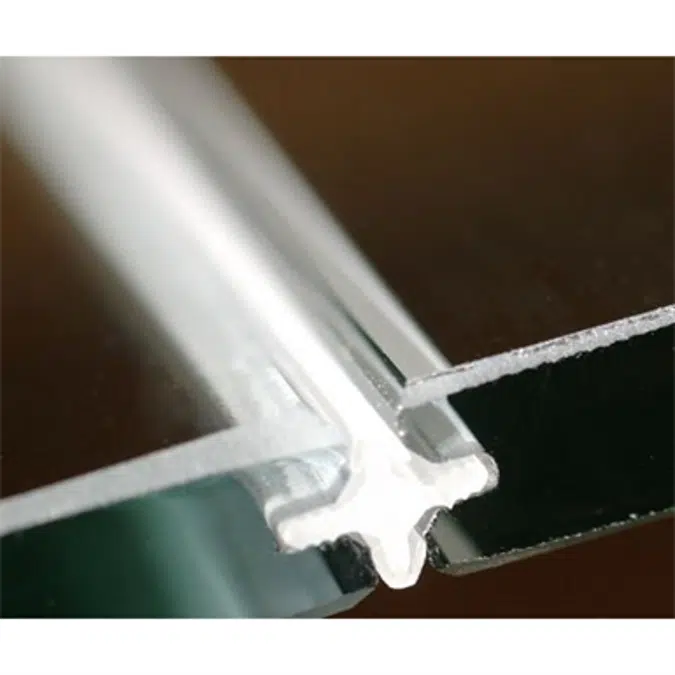

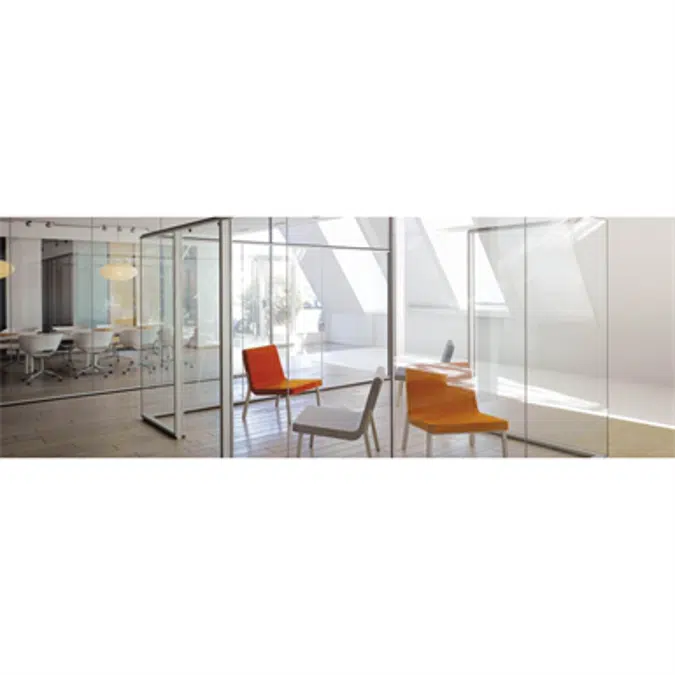

Clestra Hauserman's pleinAir partition is an office partition with absolute composure that is completely transparent. Double and single glazed are available in 10 or 12 mm and are housed in a minimal base. The glass is specially machined to enable the use of an EPDM (seal, flexibility, T°C resistance) joint. Invisible and flexible, this joint allows the glass to be easily removed. The pleinAir partition is available with centred or off-centred glass. pleinAir doors can swing, on pivots or slide. The pure lines give a style unique to Clestra that compliment the office interior. Doors are available in wood, steel or glass. Clestra Hauserman's pleinAir range of partitions is supplemented by a solid panel in steel partition or wood partition , and a complete range of screen, fabric and woven hanging accessories which slide in front of or between the glass. Visit us www.clestra.com

技术规格

唯一参考cle-ple-1
产品系列Internal partitions
产品组Relocatable partitions
类型集合（多个对象）
发布日期2017-06-19
版本号1
深度 (mm)83

链接

产品网址http://extranet.clestra.com/clestra/diffusion/PLEINAIR_UK_2017.pdf
产品认证http://extranet.clestra.com/clestra/diffusion/PLEINAIR_UK_2017.pdf
技术说明http://extranet.clestra.com/clestra/diffusion/PLEINAIR_F_GB_D.pdf

相关

主材料玻璃
次要材料铝
设计国家/地区法国
制造国家/地区法国

分类

BIMobject 类别墙壁 - 分区
IFC 分类墙壁
UNSPSC 名称Panels or paneling
UNSPSC 代码30161505
