dassoXTR Classic Espresso RainClad Siding 1x6 RainClad Siding RainClad Siding Shiplap Fused Bamboo

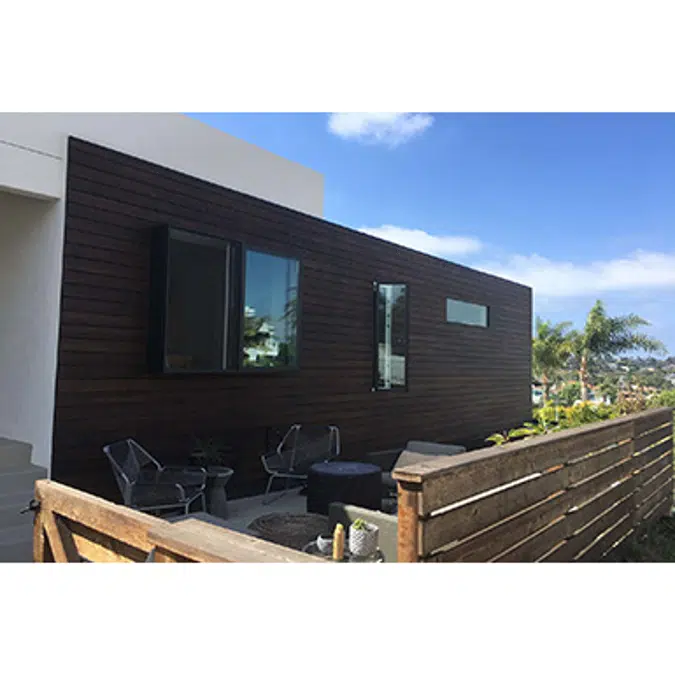

dassoXTR Fused Bamboo RainClad® Shiplap Siding is the great choice for residential or commercial RainClad®, where it ages naturally like wood. Most often our siding act as ornate, accent or center piece of the building but in others it is a great replacement for the tropical siding planks (Ipe, Cumaru, Redwood or Cedar). Our RainClad® Siding comes in 2 different colors - Classic Espresso and Epic Cognac. However, the color choices are unlimited where Epic Cognac with its neutral color can be stained to multiple colors. Fused Bamboo® will takes most brands of stains and pigments with coatings ranging from exterior wood oil to multi-colors wood paints. Our siding is Class A fire-rated, W.U.I. compliant, dimensionally stable, will not warp or buckle, zero VOC and no leaching. In terms of plank width, you have the option of nominal size 1”x6” Shiplap Plank (XXX-SID18-137TG-PP) or 1”x7” Shiplap Plank (XXX-SID18-178TG-PP) shiplap planks. Our siding planks are 6 feet long with a shiplap profile on the long side and T&G End-match on the end for an endless joint instalation. When installed with the designed fastener, either sheathing or batten, the fastener will allow the planks to overlap on top of the other planks for a clean elegant look. Installation time and product wastage is reduced by 50% compared to traditional wood plank installation. The wider 7” plank gives a luxurious appearance with less seams or joints. It also reduces the usage of installation accessories and workload thus cutting down installation cost. Installation is simplified with the designed fasteners and the planks can be installed horizontally or vertically. Use Drip Cap at the base and select appropriate aluminum trim pieces for corners, tops or joins. Our lumber can be routed to your trim pieces as well depending on your choice of looks. It is a RainClad® Siding that buffers the heat from traveling into your home from direct contact.
规格
  • Color: Espresso
    Thickness (fraction): 3/4-"
    Width (fraction): 5-3/8"
    Face coverage (inch): 5"
    Space between board faces when set in clips: Fascia 5" (127mm) include 1/4" Reveal (7mm)
    Length/Length Range: 6.0'
    Lineal Feet Per Bundle: 18.00
    Installation: Hung on clips which are mounted on-panel or to studs/batten. Use marine-grade stainless steel fasteners designed for fastening to the panel/batten (wood or metal screws to wood or metal).
    Finishes: Pre-primed - with Natural Oil

    Keywords: cladding, waterproof siding, clad, exterior cladding, commercial cladding, commercial siding

技术规格
  • 唯一参考XTR-SID18-137TG-PP-Bamboo-RainClad-Siding-Composite
  • 产品系列dassoXTR
  • 产品组dassoXTR Fused Bamboo RainClad Siding
  • 类型对象(单个对象)
  • 发布日期2020-07-28
  • 版本号1
  • 高度 (inch)0.71
  • 宽度 (inch)5.39
  • 深度 (inch)72
相关
  • 主材料竹子
  • 次要材料Composite
  • 设计国家/地区美国
  • 制造国家/地区中国
  • 净重 (Lbs)11.59
分类
  • BIMobject 类别墙壁 - 墙面装饰
  • IFC 分类建筑元素
  • UNSPSC 名称Wall finishing materials
  • UNSPSC 代码301615
  • Uniclass 2.0 代码EE-25
  • Uniclass 2.0 说明Wall And Barrier Elements
  • Uniclass 2015 代码EF_25
  • Uniclass 2015 说明Wall and barrier elements
  • NBS 参考代码25
  • NBS 参考描述Wall And Barrier Elements
  • CSI MasterFormat 2014 代码09 72 00
  • CSI MasterFormat 2014 标题Wall Coverings
  • OmniClass 编号23-15 15 19
  • CSI UniFormat II 代码C3010
  • CSI UniFormat II 标题Wall Finishes

发售地区

North America
加拿大
美国
