1S21-2 162.5mm 60min 61dB 4000mm

1S21-2 162.5mm 60min 61dB 4000mm

已存档

1S21-2 162.5mm 60min 61dB 4000mm

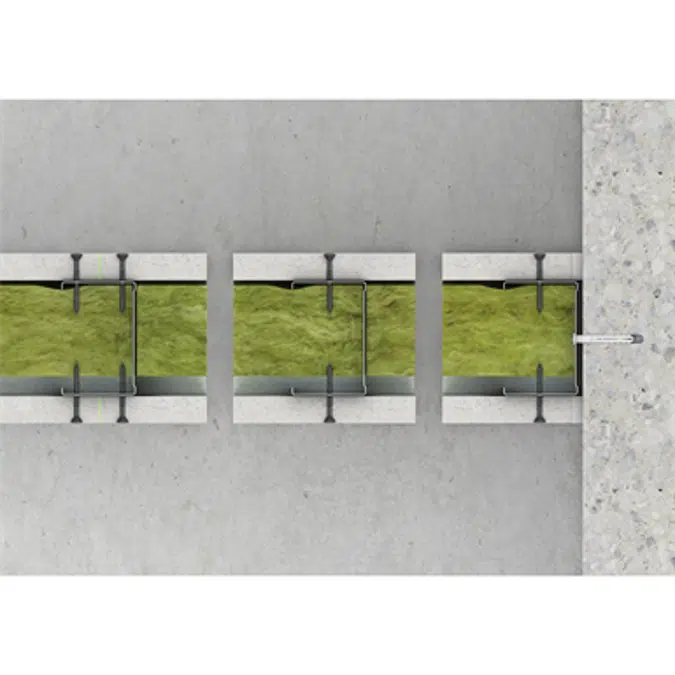

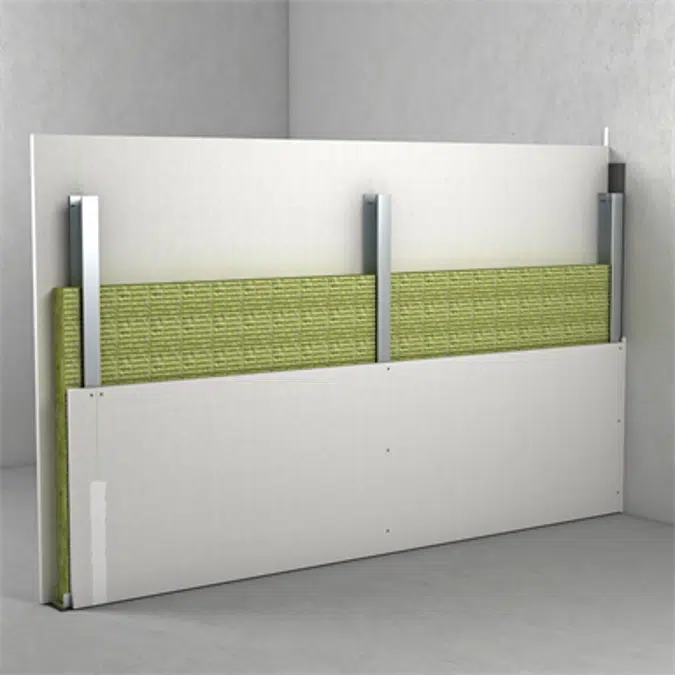

Wall Thickness: 162,5mm Stud: C 75 + C 50 - steel frame@600mm centres Facings: 12.5 + 12.5mm Fermacell Board + 12.5mm between Studs Insulation: 60mm/60 kg/m³ - Mineral Wool (> 1000 °C) + 40mm/40 kg/m³ - Mineral Wool (> 1000 °C) Without Fire Rating/Partition Height: 3700 mm With Fire Rating/Partition Height: 4000mm Fire Rating: 60min Sound Insulation: 61 Rw

规格

Board Types:
- One Man Boards – Square Edge
- Standard Boards – Square Edge
- Tapered Edge Boards – Tapered On 2 Sides
- Tapered Edge Boards – Tapered On 4 Sides

技术规格

唯一参考1S21-2-162-5mm-60min-61dB-4000mm
产品系列Fermacell Gypsum Fibreboard Wall Solutions
产品组Partition walls on steel walls with insulation
类型对象（单个对象）
发布日期2016-03-18
版本号1
深度 (mm)162.5

链接

产品网址http://www.fermacell.it/
安装说明http://www.fermacell.it/it/content/download.php
指导视频http://www.fermacell.co.uk/en/content/take_away_accessories_1256.php
产品认证http://www.fermacell.com/en/content/1399.php
技术说明http://www.fermacell.it/it/content/prodotti.php

相关

主材料石膏
次要材料钢
设计国家/地区德国
制造国家/地区德国

分类

BIMobject 类别墙壁 - 分区
