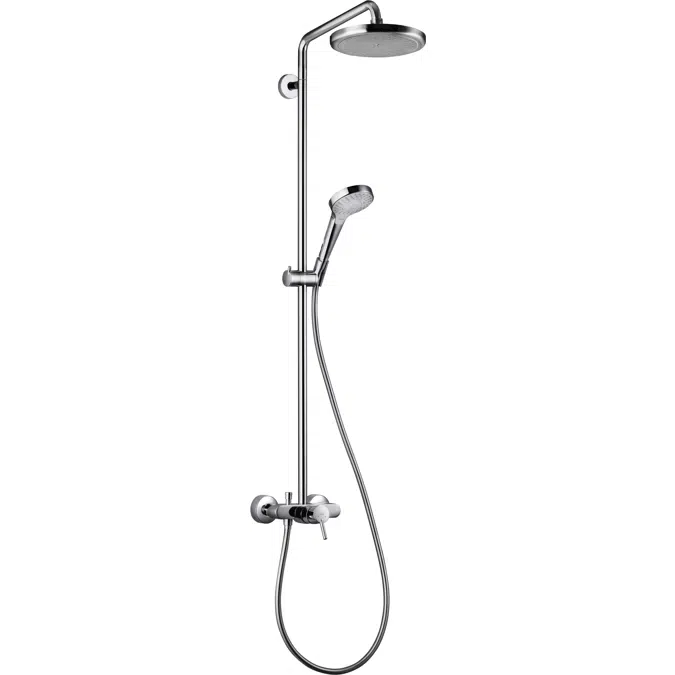

Croma Showerpipe 220 1jet EcoSmart 9 l/min with single lever mixer

规格

规格

• Surfaces: - 26172007 Chrome Specification: • consists of: overhead shower, hand shower, single lever shower mixer, shower hose, hand shower holder • overhead shower Croma 220 • shower head size overhead shower: 220 mm • spray type overhead shower: RainAir • ball-joint: overhead shower angle adjustable • hand shower holder inclination angle can be adjusted by 45° • maximum flow rate at 3 bar: 12 l/min • flow rate of hand shower at 3 bar: 12 l/min • minimum flow pressure: 1,5 bar • height-adjustable hand shower holder • shower arm length overhead shower: 380 mm • suitable for continuous flow water heaters with an output of 18 kW • mounting type: exposed installation • connection dimension DN15 • connection thread G ½ • centre distance 150 ± 12 mm • ceramic cartridge • temperature limitation adjustable • adjustable hot water limitation • installation: wall-mounted • amount of outlet: 3 functions • min. operating pressure: 1 bar • max. operating pressure: 6 bar

技术规格

技术规格

• 唯一参考26172007
• 产品系列Shower pipes with mixer
• 产品组Croma
• 类型对象（单个对象）
• 发布日期2022-11-23
• 版本号1

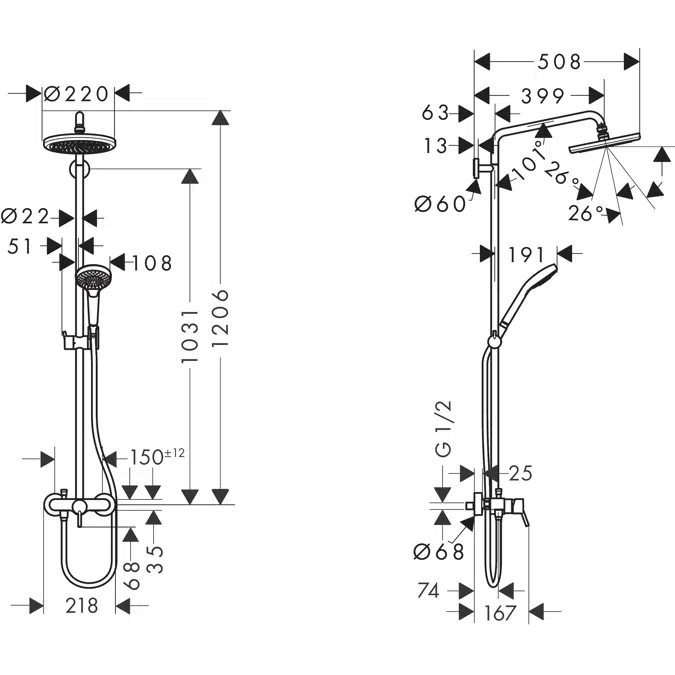

• 高度 (mm)1210
• 宽度 (mm)220
• 深度 (mm)508

链接

链接

• 产品网址https://www.hansgrohe.com.cn/articledetail--26172007

相关

相关

• 设计国家/地区德国
• 制造国家/地区德国
• 净重 (Kg)4.4

分类

分类

• BIMobject 类别卫生 - 淋浴器
• IFC 分类卫浴终端
• ETIM 代码EC011613
• ETIM 名称Shower column/panel
• UNSPSC 名称Showers
• UNSPSC 代码30181503
• Uniclass 2015 代码Pr_40_20_87_76
• Uniclass 2015 说明Shower heads
• CSI MasterFormat 2014 代码22 41 23
• CSI MasterFormat 2014 标题Residential Showers
• OmniClass 编号23-31 17 00
• OmniClass 标题Showers
• CSI UniFormat II 代码D2010
• CSI UniFormat II 标题Plumbing Fixtures
