T300 6" Wide 2 7/8" Deep Drain System

T300 6" Wide 2 7/8" Deep Drain System

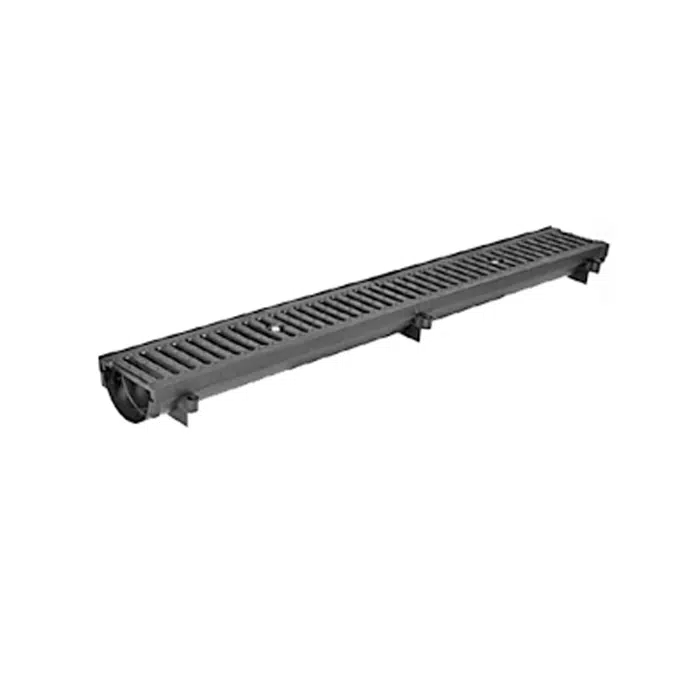

MIFAB® T300 Series 6” wide, 2 7/8” deep, 39.40” long, non sloped trench drain system. Body is manufactured from polypropylene. Each body has tabs on both sides of the body, for rebar tie down and leveling. Bodies have interlocking ends and a radiused bottom. End and bottom outlets are available in 2” no hub connections. 20” long polypropylene grates are provided as standard (Suffix –HPP) along with grate lockdown hardware for each grate to secure to the body. Class A, B and C grates are also available with H-20 and / or ADA compliance (see pages 33-35). Catch basins are also available.

规格

SKUs: T300

技术规格

唯一参考t300-6-wide-2-7-8-deep-drain-system
产品系列Drains
产品组Trench Drains » All
类型文档（信息）
发布日期2021-02-26
版本号1

链接

产品网址https://www.mifab.com/products/t300-6-wide-2-7-8-deep-drain-system/
安装说明https://www.mifab.com/products/t300-6-wide-2-7-8-deep-drain-system/
技术说明https://www.mifab.com/Catalog/Trench_Drains/T300__Specsheet.pdf

相关

设计国家/地区美国
制造国家/地区美国

分类

BIMobject 类别管道 - 排水系统
Uniclass 2015 代码Ss_50_30_08
Uniclass 2015 说明Below ground gravity drainage systems
CSI MasterFormat 2014 代码33 46 00
CSI MasterFormat 2014 标题Subdrainage
OmniClass 编号23-39 29 11
OmniClass 标题Waste Water Drains
CSI UniFormat II 代码D2040
CSI UniFormat II 标题Rain Water Drainage

发售地区

北美
美国
