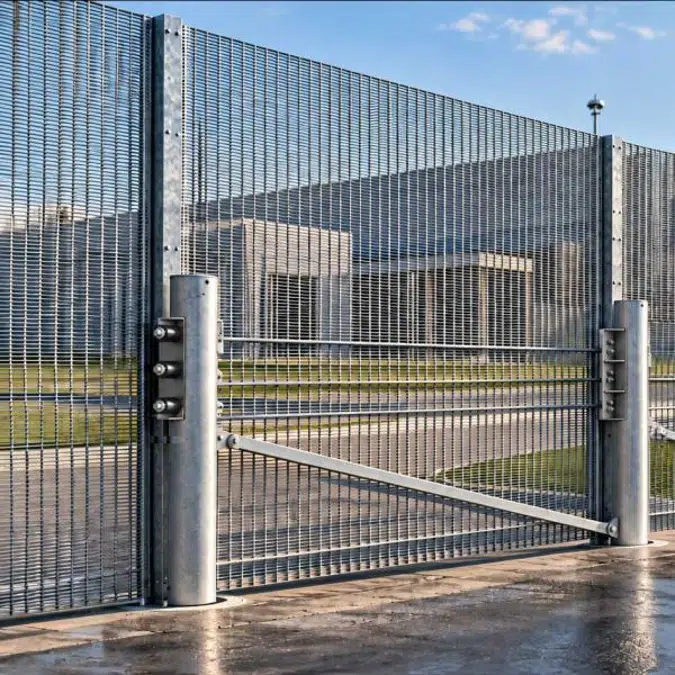

BETAFENCE BLOKAD Securifor Super 10

PANEL:

• Types: Straight (Standard), Cranked (Angled), Arced (Rolled)
• Mesh size: 76.2 × 12.7 mm
• Wire diameter: Horizontal 4 mm | Vertical 10 mm
• Panel width: 2753 mm
• Reinforcement: Integrated horizontal bars for rigidity and structural stability
• Installation: Surface-mounted or partially buried

POST FENCE:

• Rectangular posts: 80 × 60 mm
• Fixation: With cover plate; secured with M8×110 mushroom square neck round head bolts and M8 break-off nuts
• Black Plastic Post Cap Included On All Posts

CRASH POST:

• Round crash posts: Line posts: 180 × 8 mm | Terminal posts: 219 × 8 mm
• Integration: Engineered for hostile vehicle mitigation in accordance with ISO 22343-1, achieving a vehicle penetration of less than 1 metre. Tested on a total fence length of 16 metres with a system height of 2.4 metres.
• The post cap is galvanized and welded to the post.

Connectors:

• Cable fixture specification to line posts: M18 GRIP BOLTS, M18 U-BOLT, M18 NUT
• Cable fixture specification to terminal posts: KM22-1860 Cable Anchor Tool

CABLES AND CONNECTIONS:

• 3× 22 mm diameter crash steel cable, starting at a height of 850 mm and 150 mm centre to centre

COLORS:

• Green RAL 6005, White RAL 9010, Anthracite RAL 7016 and Black RAL 9005. Other colours are available on request.
• 10 Year Standard or 10 Year Extreme Guarantee
