EI1 120 fire-resistant sectional door with liquid barrier
EI1 120 fire-resistant sectional door with liquid barrier
EI1 120 fire-resistant sectional door with liquid barrier
EI1 120 fire-resistant sectional door with liquid barrier
EI1 120 fire-resistant sectional door with liquid barrier
    Winlock

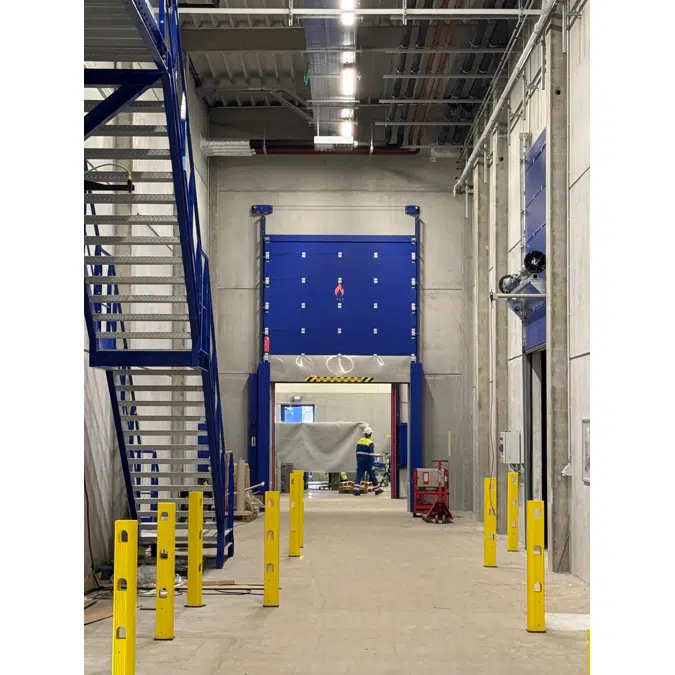

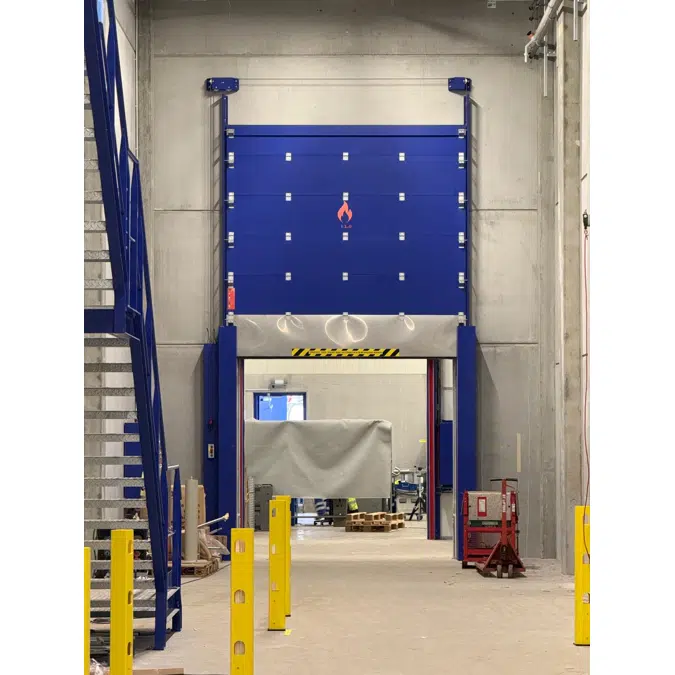

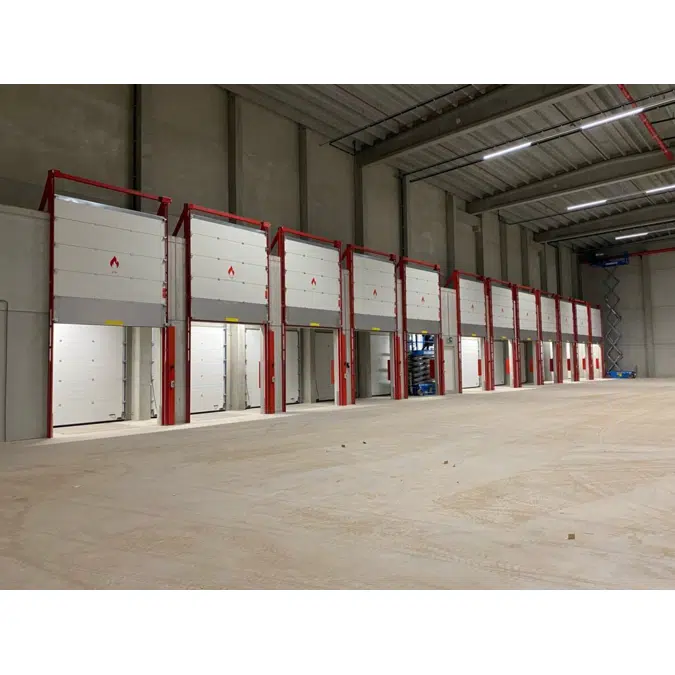

    EI1 120 fire-resistant sectional door with liquid barrier

    Our industrial fire-resistant shutters are equipped with a liquid barrier designed to collect firefighting water and hazardous liquids for this specific application. This enables us to seal off an entire site or specific areas, ensuring they are liquid-tight without hindering the daily internal movement of personnel and vehicles.

    The barriers are seamlessly integrated into our gates and doors and automatically close when a leak or fire is detected. During firefighting operations, these barriers effectively prevent contaminated firefighting water or hazardous substances from causing damage to the environment, as well as to adjacent areas and buildings.

    In compliance with VLAREM II regulations, every classified facility is required to have a firefighting water retention system.

    Specifikace
      • Barrier height: Minimum 350 - 1000 mm
      • Water retention: 0.162 L/m/h
      • Surface finish (bottom panel): Stainless Steel / Inox cladding
      • Application: Extinguishing water containment / Hazardous substances
      • EN 16034
        • Test-Standard: EN 1363-1, EN 1363-2, EN 1634-1
        • Classification standard: EN 13501-2
      • Performance: EI1 120, EI2 120, EW 120, E 120

      Available and compatible with other options including Burglar resistance, ATEX, and more.

    Technická specifikace
    • Jedinečná ref. hodnotaei1-120-fire-resistant-sectional-door-with-liquid-barrier
    • Skupina výrobkůFire resistant
    • Skupina produktůEI1 120
    • TypObjekt
    • Datum zveřejnění2026-05-11
    • Číslo vydání1
    Související
    • Navrženo vBelgie
    • Vyrobeno vBelgie
    Klasifikace
    • Kategorie objektu BIMDveře - Protipožární dveře a okenice
    • Klasifikace IFCDveře
    • Kód ETIMEC003535
    • Název ETIMInterior door (complete with frame)
    • Kód Uniclass 2015Pr_30_59_24_28
    • Popis Uniclass 2015Fire doorsets
    • Kód CSI MasterFormat 201408 36 13
    • Název CSI MasterFormat 2014Sectional Doors
    • Číslo OmniClass23-17 11 31 11 11
    • Název OmniClassFire Rated Overhead Doors
