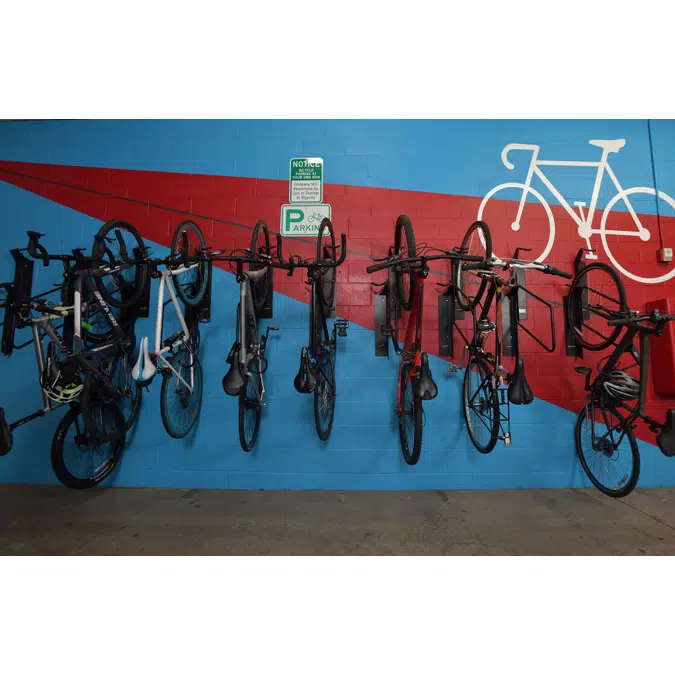

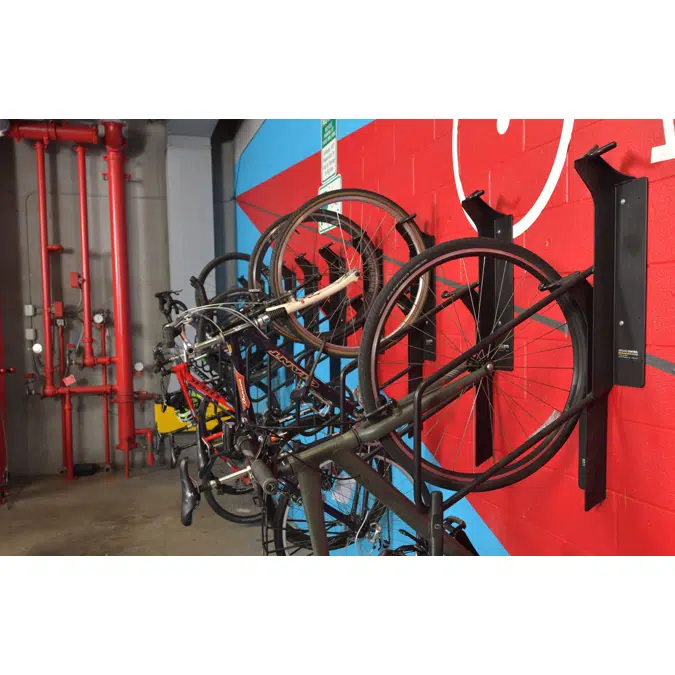

Offset® VR2 - Vertical Offset‑Staggered Bike Parking Rack

Offset® VR2 - Vertical Offset‑Staggered Bike Parking Rack

The VR2 Offset is our flagship lockable vertical parking rack. By staggering the wheel holders we created a high density vertical rack without sacrificing usability for the end user. Ground Control's best feature on this rack is the wheel ramp. It assists in the lifting and hanging of bicycles, simply set the bike's front tire on the ramp and roll it up and hook it on. The VR2’s high density and end user features makes it the go to choice for architects all over the country.

Product Features

2 bike vertical bike parking racks

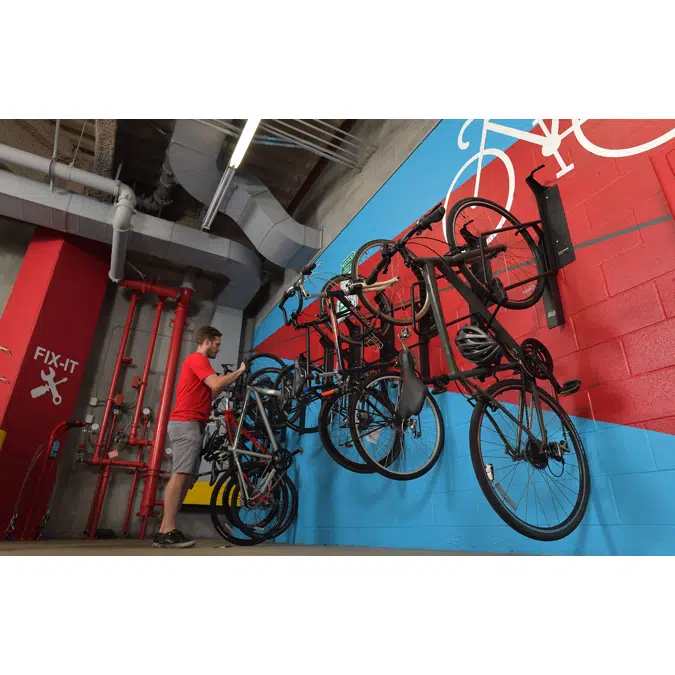

Wheel ramp for easy lifting
Solid locking loop provides 3 points of contact for high security
Can be mounted to any wall type
Usable on our Side/Center stage base stations
Rack choice for hundreds of Architects
Ultra space saving design

Specification

MATERIALS & FEATURES
- 2 bicycles secured - long term or short term parking solution*
- ASTM A36 Steel for all structural plate (standard)
- ¾” Solid Steel Rod
- Polyvinyl protective sleeve
FINISH
- Black Polyester Powder Coat
MOUNTING OPTIONS
- Rail Wall Mount
  - May require Unistrut™ rails for wood studded wall mounting, call for details.
- Staging Systems
  - Staging systems available. See Side Stage™ and Center Stage™ product pages for additional info.
- Wall Mount
  - Each Offset Vertical Bike Rack mounts to concrete masonry walls and wooden ledger boards
SPACE USE RECOMMENDATIONS
- Distance from ground to lowest mounting edge: 42”
- Ceiling height: Minimum 92” (no obstructions)
- Side wall to rack center:
  - Minimum 20”, recommended 24”
- Distance between racks center to center:
  - Minimum 24”, recommended 28”
*Please contact us for additional information on Offset as a long-term parking solution.

Technical specification

Unique ref.offset-vr2-vertical-bike-parking-racks
Product familyBike Parking Systems
Product groupVertical, Offset‑Staggered, Space‑Saving Rack
TypeObject (single object)
Date of publishing2026-08-03
Edition number1

Links

Product urlhttps://groundcontrolsystems.com/product/offset-vr2-vertical-bike-parking-racks/
Installation instructionshttps://groundcontrolsystems.com/wp-content/uploads/Product_Documents_Database/All_Products/Offset/INSTALL-OffsetVR2.zip
Product certificationhttps://groundcontrolsystems.com/wp-content/uploads/Product_Documents_Database/All_Products/Offset/SPECS-VR2,VR1,Base%20Station.pdf
Technical descriptionhttps://groundcontrolsystems.com/wp-content/uploads/Product_Documents_Database/All_Products/Offset/QS-VR2.pdf
