MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

MHC Multi-Utility Quadruple

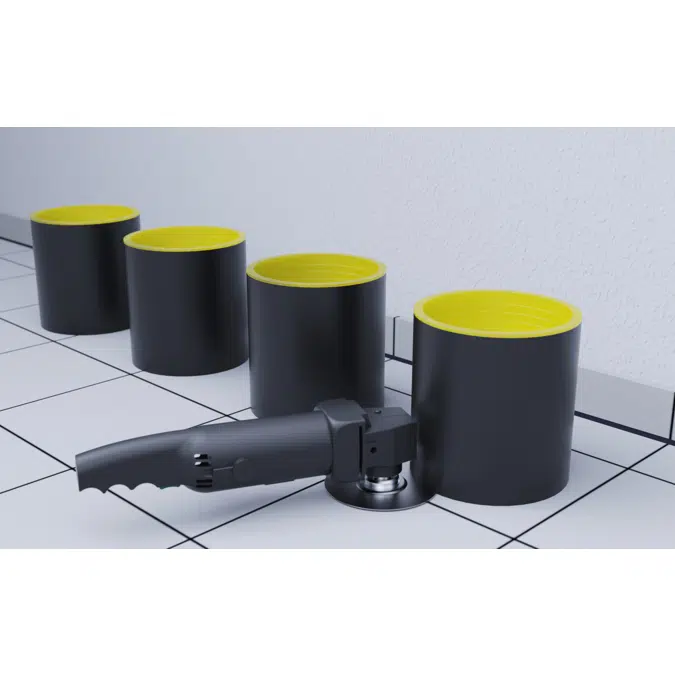

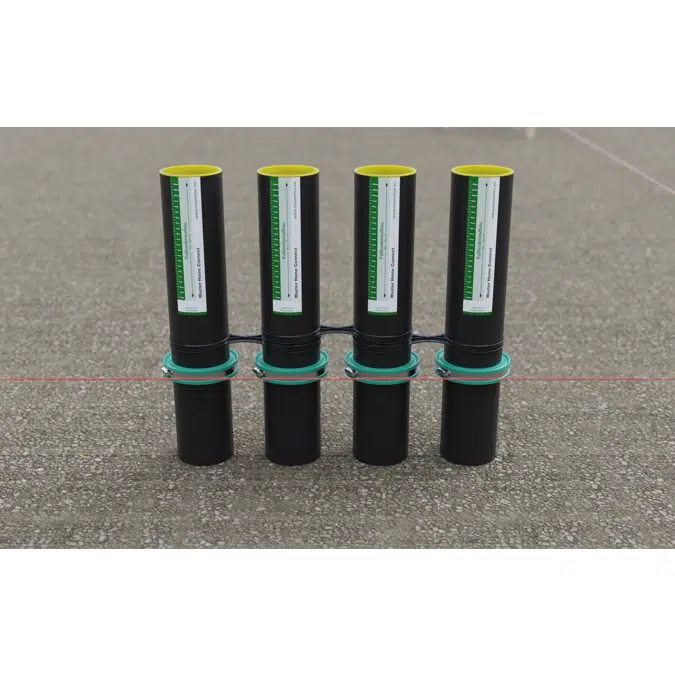

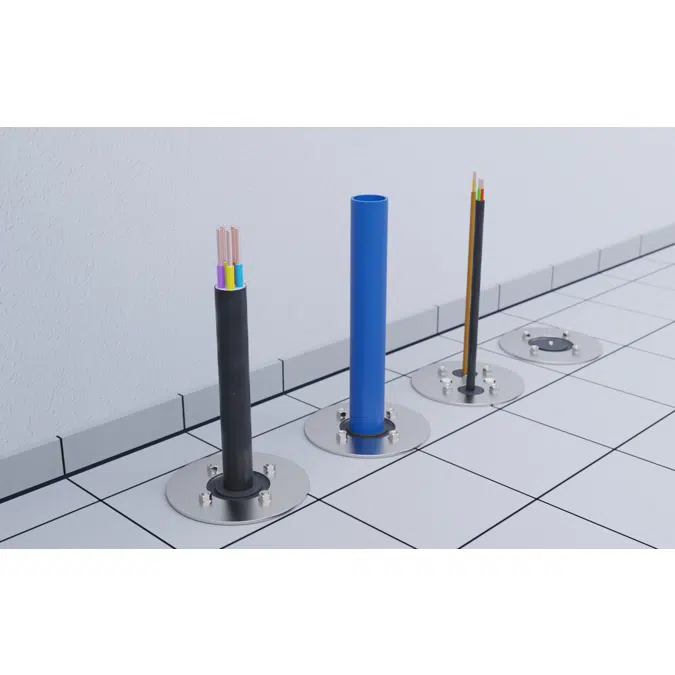

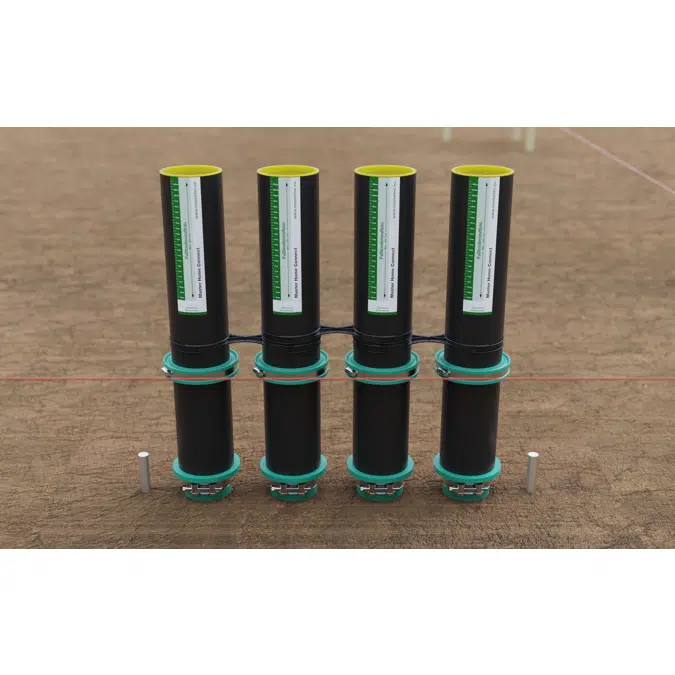

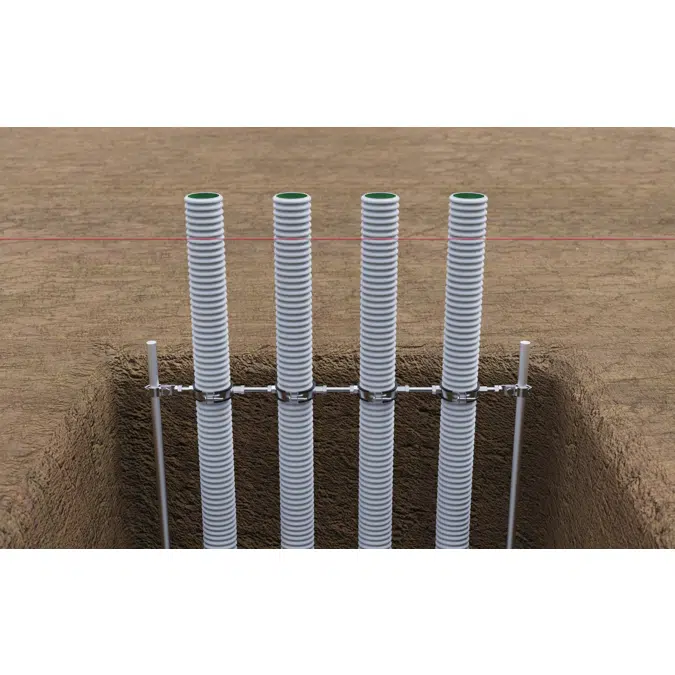

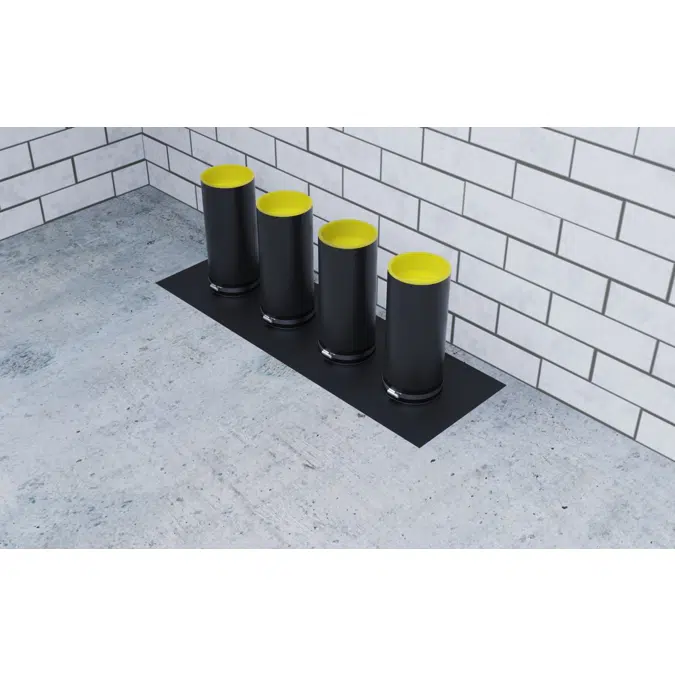

Service duct sets for electrical, water and communication connections
Tested according to DVGW VP 601 (chapter 4.5)

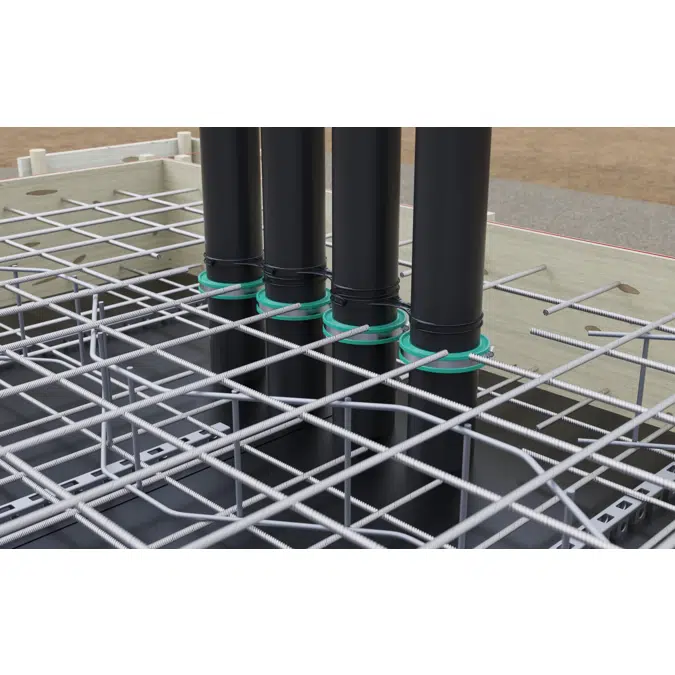

For buildings without basement

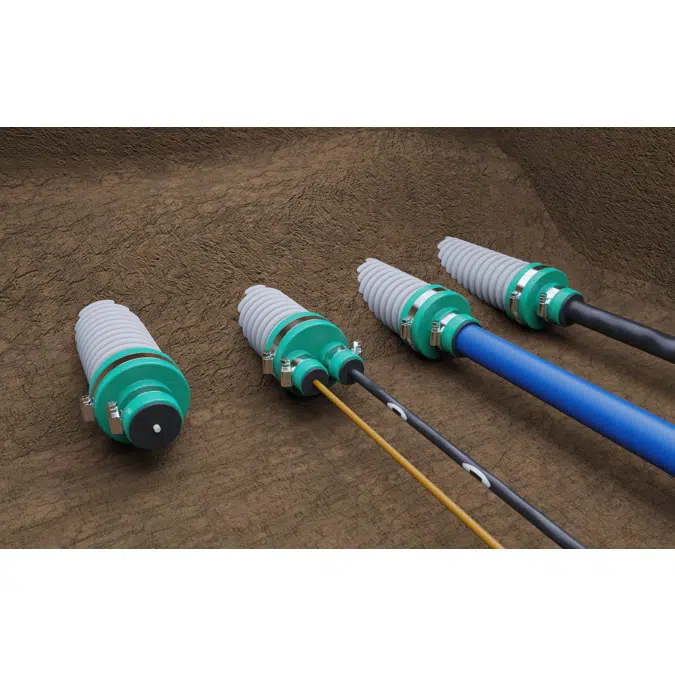

For inserting multiple media lines

available in Revit 2022-2027 and as IFC

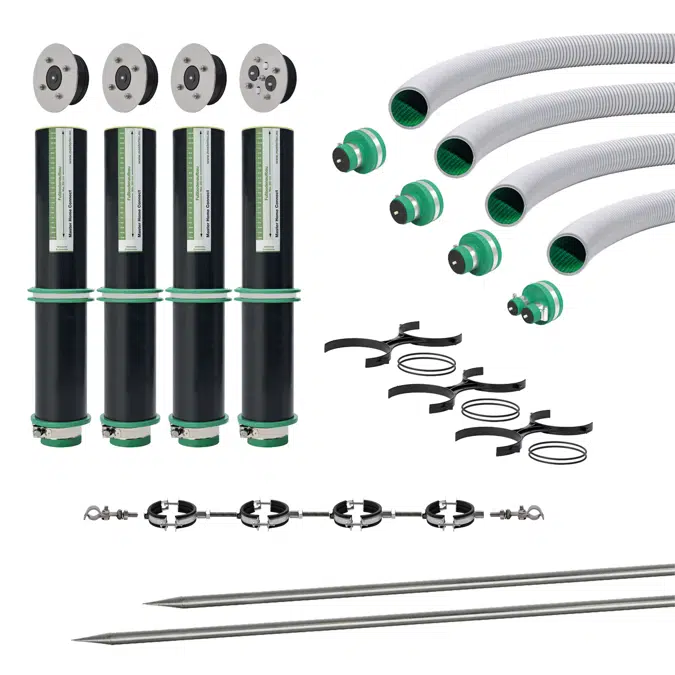

Specification

- four-compartment service ducts
- for media lines from 4 to 40 mm

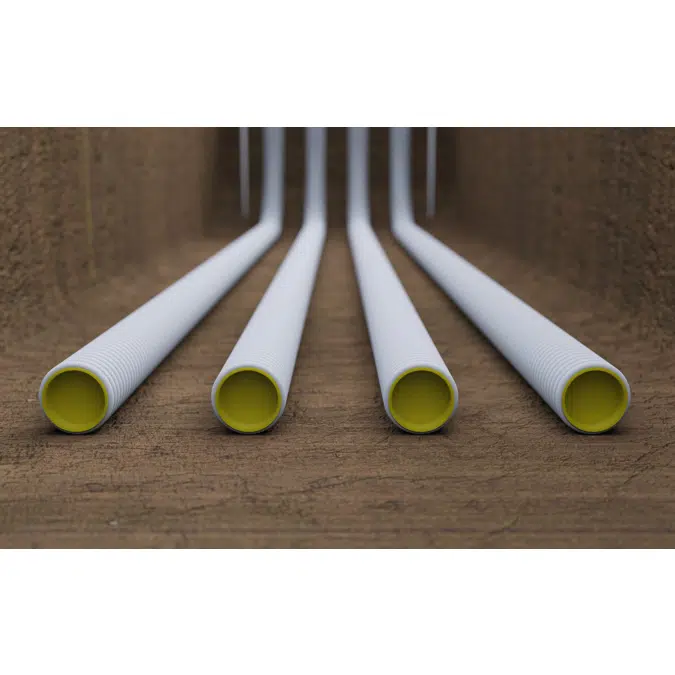

- sets include cable conduits of the appropriate length
versions:
- Art.-No. 080041: incl. 3 m cable conduit Ø 75 mm (external)
- Art.-No. 080042: incl. 6 m cable conduit Ø 75 mm (external)
- Art.-No. 070043: incl. 10 m cable conduit Ø 75 mm (external)
- Art.-No. 070016: incl. 15 m cable conduit Ø 75 mm (external)

Technical specification

Unique ref.mhc-mehrsparte-4-fach
Date of publishing2026-03-06
Edition number1

Links

Product urlhttps://www.mastertec.eu/en/products/pressure-water-tight-service-ducts/mhc-house-lead-ins/mhc-multiple-house-lead-ins
Installation instructionshttps://www.mastertec.eu/en/p/pdf/00080043/buildingmanual

Classification

BIMobject CategoryConstruction - Penetration systems
