Raychem HWAT-ECO V5 Controller for Hot Water Temperature Maintenance (Europe)

Raychem HWAT-ECO V5 Controller for Hot Water Temperature Maintenance (Europe)

Raychem HWAT-ECO V5 Controller for Hot Water Temperature Maintenance (Europe)

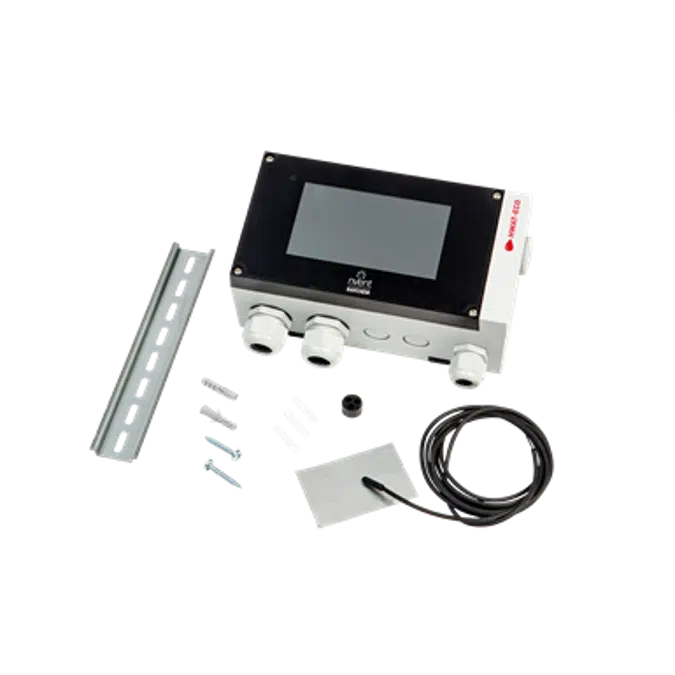

HWAT-ECO Electronic Control Unit

Raychem HWAT-ECO is an energy efficient control and monitoring unit for Raychem HWAT self-regulating single pipe hot water systems. It provides flexible temperature control and additional energy savings, with integrated functions that lower the maintain temperature during low use periods.

Download Raychem Trace-It Addin for Autodesk Revit at http://apps.autodesk.com

Specification

Features
- Energy saving: additional savings up to 21%
- Energy saving: 7 specific building type programs with typical ‘on’ and ‘off’ modes for these buildings, integrated clock function to define ‘on’ and ‘off’ times
- Easy to connect and to operate: large, colored touch screen
- Pre-set up in power-off mode by external power bank/charger via USB connection
- In-wall or panel mounted
- Alarm relay with changeover contact to signal power, temperature or communication problems
Specifications
Alarm Signal, Potential Free: 2 A: 24 VAC/VDC
Boiler Sensor: Yes
Bulit-In Ground Fault Protection: No
Display: 5" Color Touch Screen
Enclosure: Polycarbonate
Function: Hotwater Temperature Maintanace
Max Exposure Temperature: 40 °C
Mounting: Wall Mounted/DIN Rail
Pipe Sensor: Yes
Self Diagnostic Feature: Yes
Voltage AC: 230 V

Technical specification

Unique ref.raychem-hwat-eco-v5-eu
Product familyRaychem Europe
Product groupHeat Tracing - Single-point Controller
TypeObject (single object)
Date of publishing2018-12-24
Edition number1

Links

Product urlhttps://www.chemelex.com/en-gb/raychem/products/hwat-eco-electronic-control-unit
Installation instructionshttps://cdn.chemelex.com/Product%20Documents/Installation%20Manuals/RAYCHEM-IM-EU0932-HWATECOv5-ML.pdf
Technical descriptionhttps://cdn.chemelex.com/Product%20Documents/Data%20Sheets/RAYCHEM-DS-EU0920-HWATECOv5-EN.pdf

Related

Material mainPolycarbonate
Material secondaryOther
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectrical - Controls
ETIM CodeEC002288
ETIM NameSmall distribution board equipped
OmniClass Number23-33 15 15 21
OmniClass TitlePipe Heat Tracing

Region availability

North America
Canada
United States
