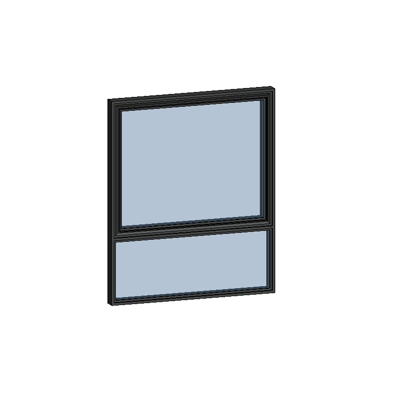

Hinged insulated system SMARTIA S67 URBAN

SMARTIA S67 URBAN is a new hinged insulated system of unique aesthetics that ideally combines the industrial look along with top performances.

Specification

- FRAME DEPTH: 105 mm
- SASH DEPTH: 65 mm
- SASH WEIGHT: up to 180 Kg
- MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 85 mm
- MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 135 mm
- GLAZING TYPE: Double - Triple
- MAXIMUM GLAZING THICKNESS: from 10 mm up to 44 mm
- MECHANISM: Euro-groove
- SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets
- MINIMUM THRESHOLD HEIGHT: 21 mm
- TYPE OF THERMAL INSULATION: 30mm fiberglass Polyamides, PE Insulation Foam, ENERGY BAR

Technical specification

Unique ref.hinged-insulated-system-smartia-s67-urban
Collection setSMARTIA
CollectionHinged
TypeAssembly (multiple objects)
Date of publishing2022-07-04
Edition number1

Links

Material mainAluminum
Material secondaryGlass

Classification

BIMobject CategoryWindows - Single Hung Windows
IFC classificationWindow
UNSPSC nameDoors and windows and glass
UNSPSC code3017
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass TitleWindows
OmniClass Number23-17 13 00
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows
