BETOMAX Shuttering Anchors

BETOMAX® Shuttering Anchors – Proven anchoring system for professional formwork applications

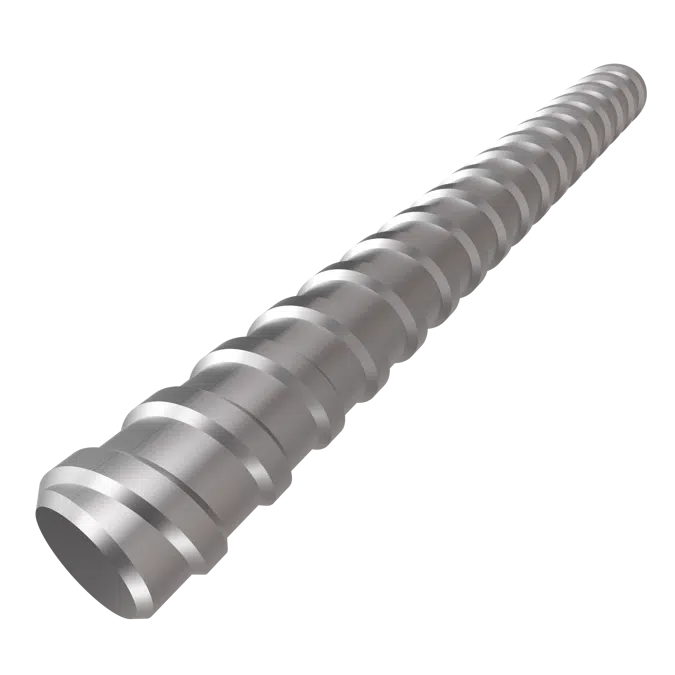

BETOMAX® Shuttering Anchors are high-strength steel anchors for use in professional formwork and concrete construction. The system is available in various designs, including the standard B15 to B26.5 sizes as well as the special designs UNI and KO 10.

The anchors feature a continuous coarse thread for safe and reliable load transfer in combination with compatible formwork accessories such as wing nuts and anchor plates. Their high strength and good workability allow for versatile applications on the construction site, including the fabrication of tie loops.

Specification

High-strength, hot-rolled and tempered steel shuttering anchors with a continuous coarse thread for use in formwork systems for concrete construction. Available in B15 to B26.5 sizes as well as UNI and KO 10 designs. Steel grade St 750/875. Suitable for use with compatible formwork accessories such as wing nuts and anchor plates. Weldable and bendable in accordance with DVS 1708 and ISO 17660-1/-2. General technical approval Z-12.5-82.

Technical specification

Unique ref.betomax-schalungsanker
Product familyFormwork Systems
Product groupFormwork Tie Systems
TypeBuilding Materials
Date of publishing2026-10-12
Edition number1

Links

Product urlhttps://www.betomax.com/en/products/precast-technology/anchor-technology/shuttering-anchor
Product certificationhttps://www.betomax.com/application/files/6617/6104/8829/Z224432_25_Zulassung_B15.pdf

Material mainCarbon Steel
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryConstruction - Anchors & Fixings
IFC classificationMechanical Fastener
Uniclass 2015 CodePr_20_85_84_16
Uniclass 2015 DescriptionCarbon steel tie bars
CSI MasterFormat 2014 Code03 11 00
CSI MasterFormat 2014 TitleConcrete Forming
OmniClass Number23-13 23 11
OmniClass TitleMechanical Fasteners
