DYNAMICROLL

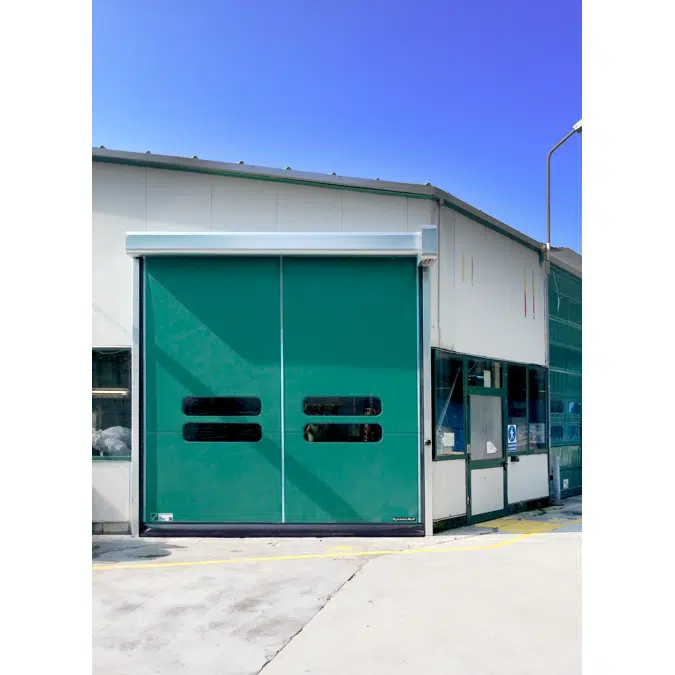

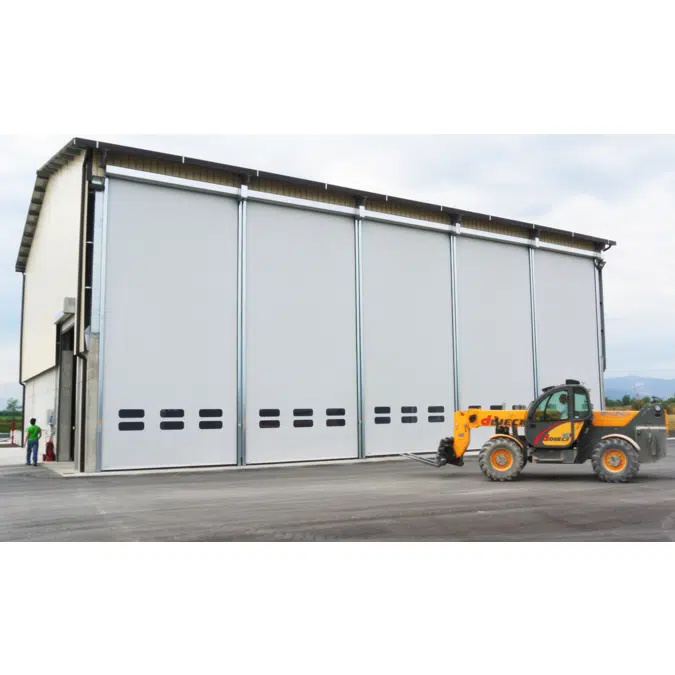

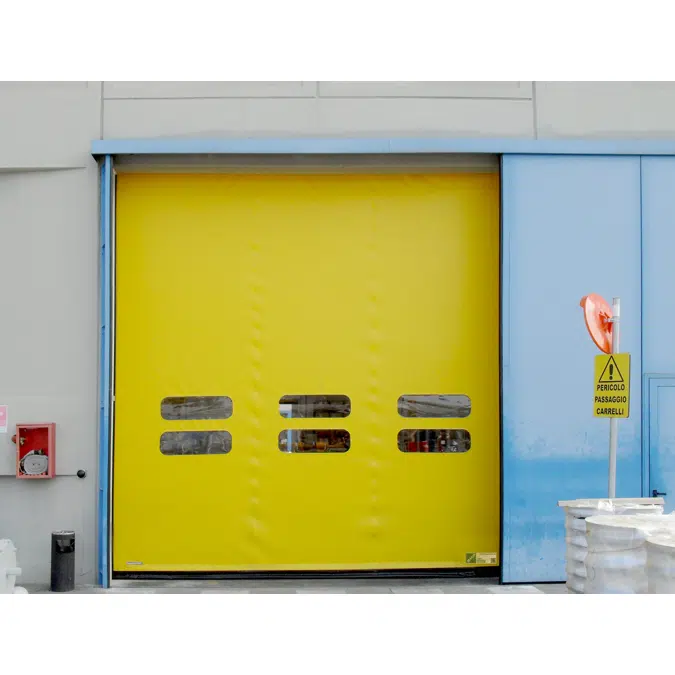

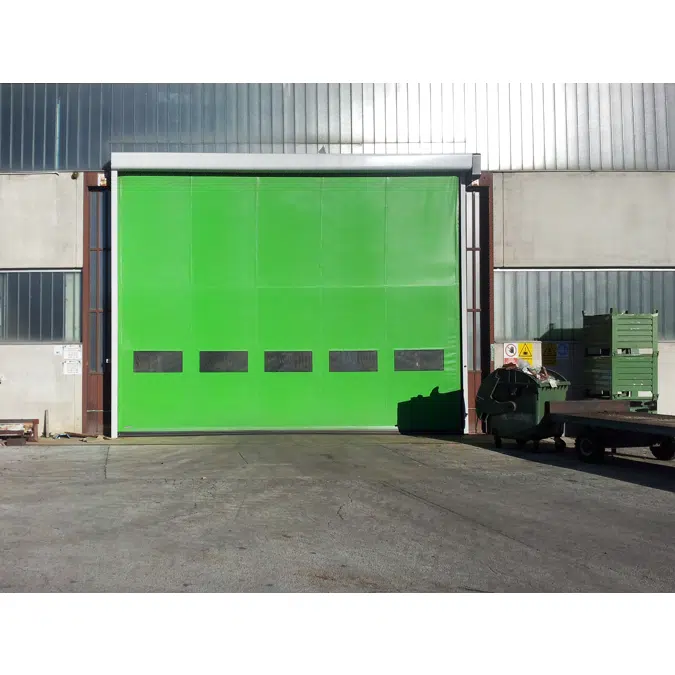

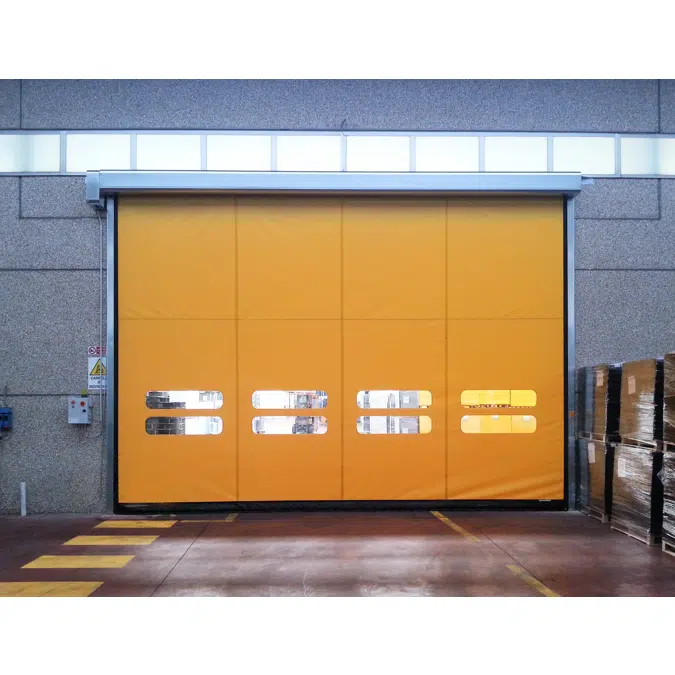

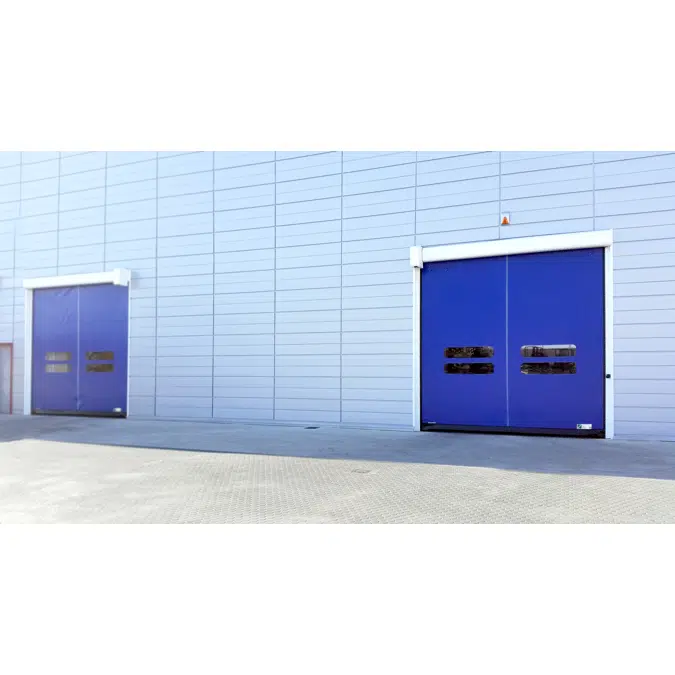

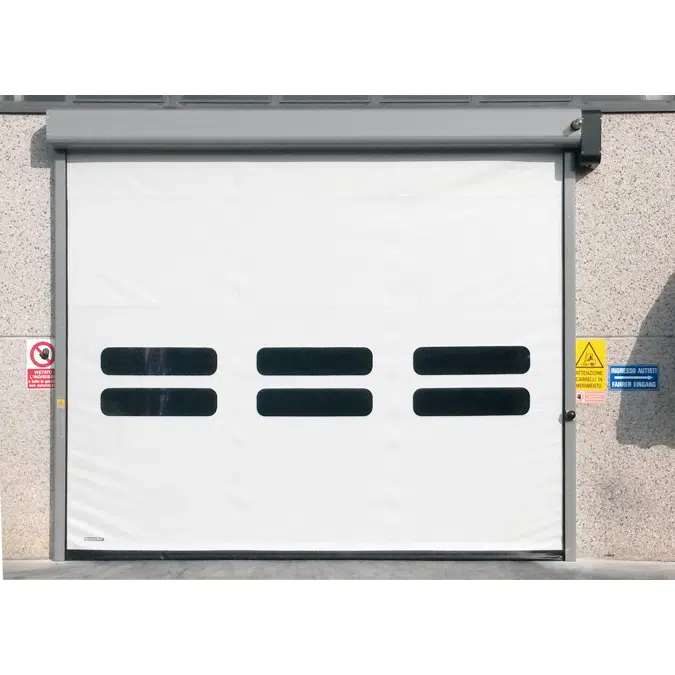

DYNAMICROLL® is a self-repairing roll up door designed to reach different kinds of applications, both internal and external, allowing the traffic flows and assuring high safety. Thanks to the special sliding system, that lets the curtain, without rigid elements inside it, come out from the guides, to protect itself in case of any impact during the operation of the door and allows it to reinsert after one cycle.

Specification

FEATURES
Maximum dimensions:
W 8000 mm x H 8000 mm
Speed:
Max opening speed up to 2,5 m/s
Closing speed 0,8 m/s adjustable
Wind resistance:
3000 x 3000 Class 4
5000 x 5000 Class 3
7000 x 7000 Class 2
8000 x 8000 Class 1
Structure:
Not self-supporting
Frame / motor cover hood:
Standard: Galvanized Steel
Optional: Powder coated Steel - Stainless Steel 441/ 316
Curtain:
Standard: PVC curtain 1300 gr/m², 6 W/m²K
Optional: Insulated 7 mm, 3.3 W/m²K - Translucent 35/40% - FDA (white) - Antistatic
Sliding system:
Patented sliding system with high density
Polyethylene self- lubricant equipped of
sliding zipper directly on curtain.
Control panel:
Standard: Powder coated steel box IP54 (300 x 500 x 150 mm)
Optional: Stainless Steel - PVC box IP65 (300 x 400 x 150 mm)
Inverter system 50/60 Hz with absolute
encoder
Power supply 1-ph, 230V max 16A
Power supply 3-ph, 400V max 10A
Power supply 3-ph, 230V max 16A
Star/Stop Button
2 free contacts (door open/ closed/ allarme)
Automatic/ Manual Interlocking between 2 doors
IP rating for motor and control panel IP54
Wiring:
Plug and Play system IP65
