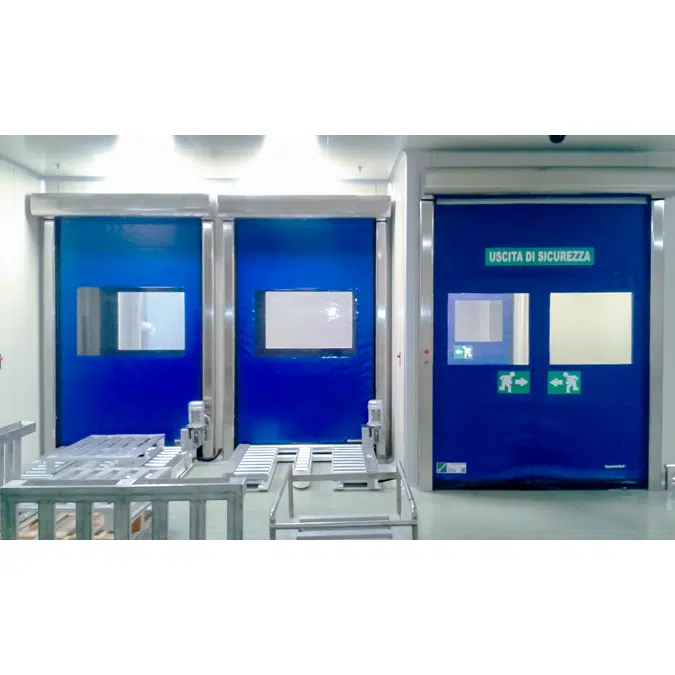

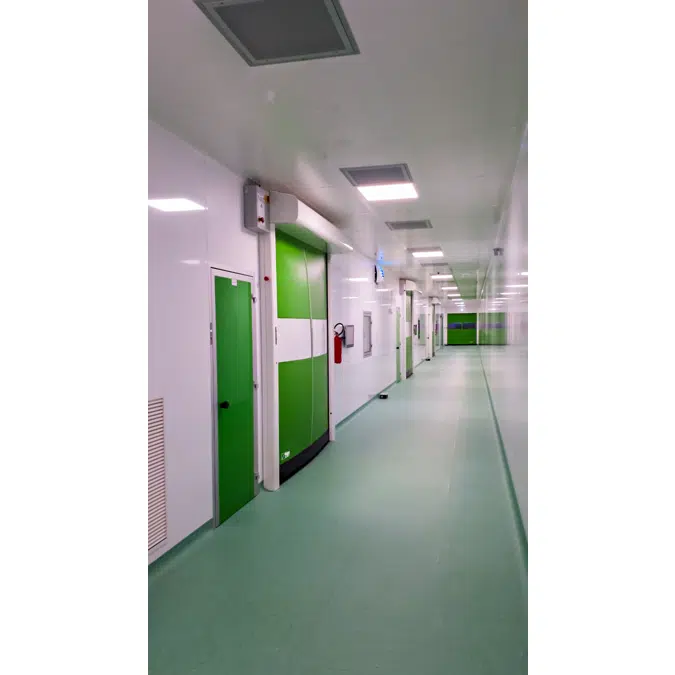

DYNAMICROLL® CB 125

DynamicRoll® CB 125 is a selfrepairing roll up door designed to separate overpressured sterile environments, thanks to its sealing ensures controlled pressure leakage allowing the ventilation systems and air purification to operate correctly. Thanks to its special compact frame and to the special sliding system door has a low permeability to be suited for controlled environments. Thanks to the special sliding system, that lets the curtain, without rigid elements inside it, come out from the guides, to protect itself in case of any impact during the operation of the door and allows it to reinsert after one cycle. DynamicRoll® name assure the safety of staff, thanks to its curtain without rigid horizontal elements.

Specification

FEATURES
Maximum dimensions:
W 4000 mm x H 4000 mm
Speed:
Max opening speed up to 2,5 m/s
Closing speed 0,8 m/s
Wind resistance:
Class 2
Structure Not self-supporting
Frame / motor cover hood:
Standard:
Galvanized Steel
Optional:
Powder coated Steel
Stainless Steel 441/ 316
Curtain:
Standard:
PVC curtain 1300 gr/m², 6 W/m²K
Optional:
Insulated 7 mm, 3.3 W/m²K
Translucent 35/40%
FDA (white)
Antistatic
Sliding system:
Patented sliding system with high density Polyethylene self- lubricant equipped of sliding zipper directly on curtain.
Control panel:
Standard:
Powder coated Steel box IP54 (300 x 500 x 150 mm)
Optional:
Stainless Steel
PVC box IP65 (300 x 400 x 150 mm)
Inverter system 50/60 Hz with absolute
encoder
Power supply 1-ph, 230V max 16A
Power supply 3-ph, 400V max 10A
Power supply 3-ph, 230V max 16A
Star/Stop Button
2 free contacts (door open/ closed/ allarme)
Automatic/ Manual Interlocking between 2
doors
IP rating for motor and control panel IP54
Wiring:
Plug and Play system IP65
