PACK

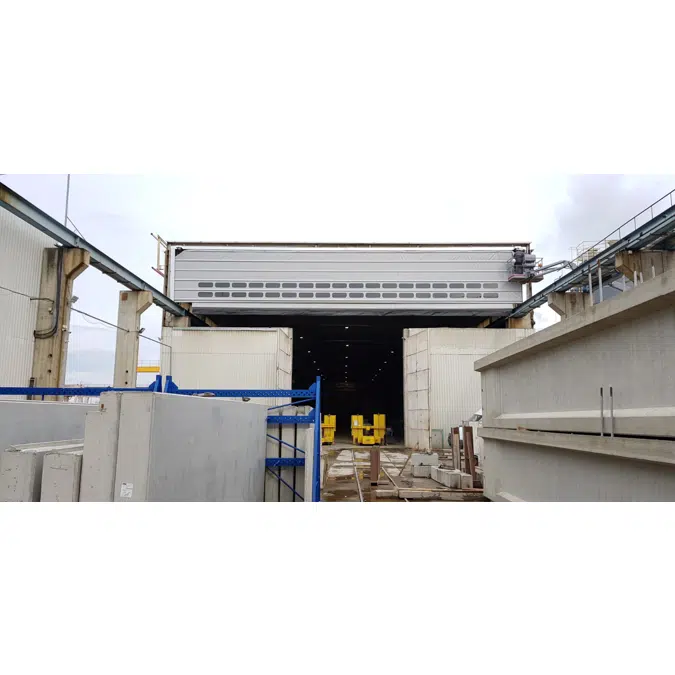

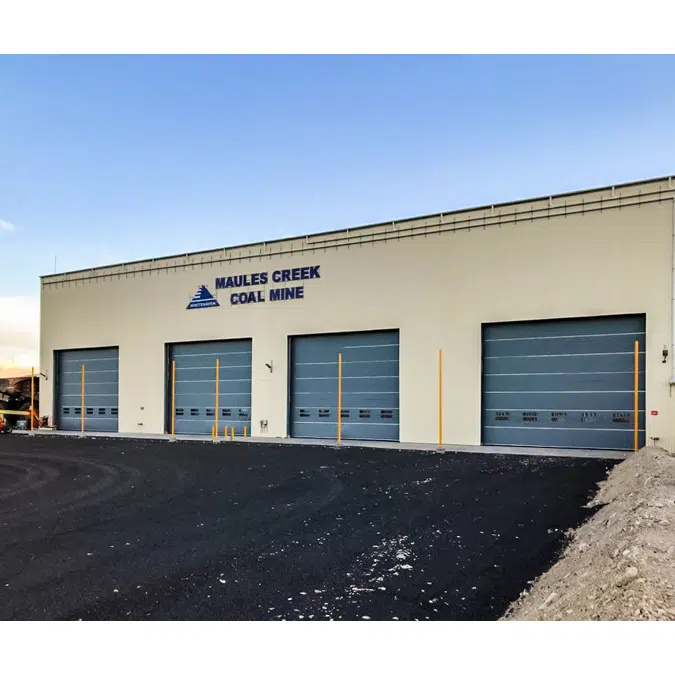

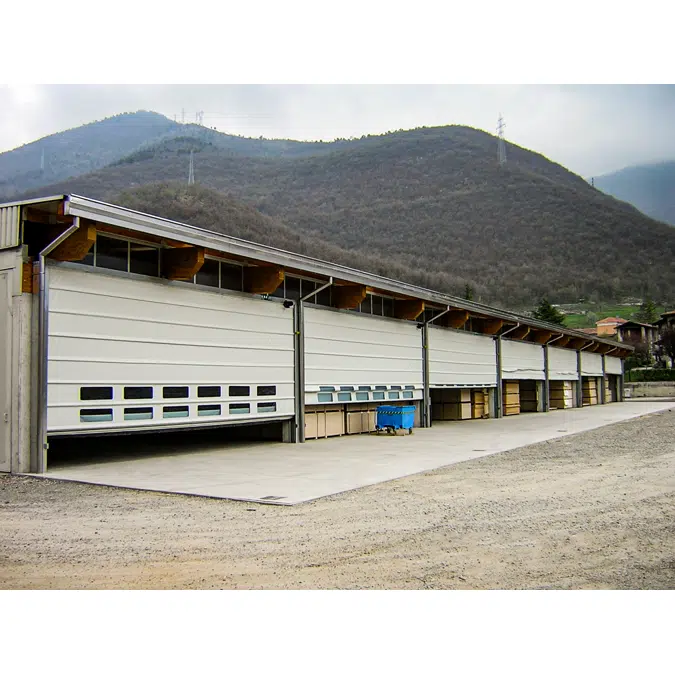

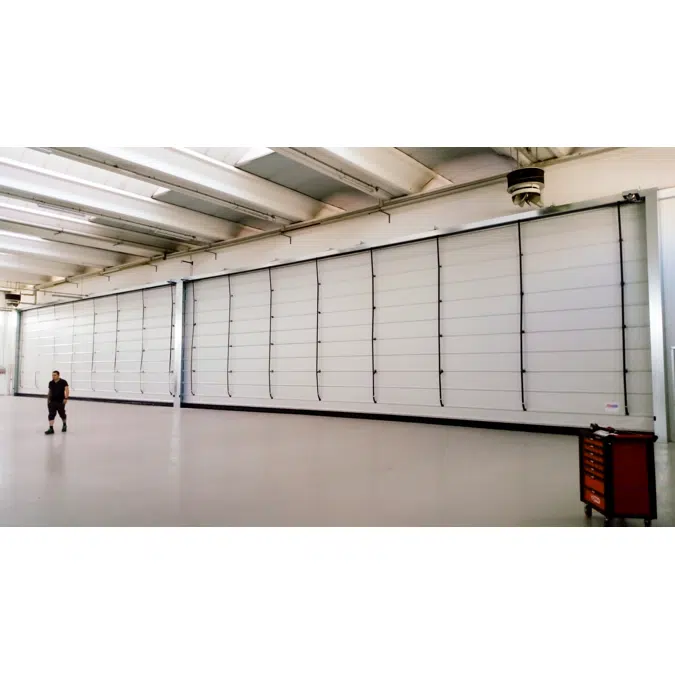

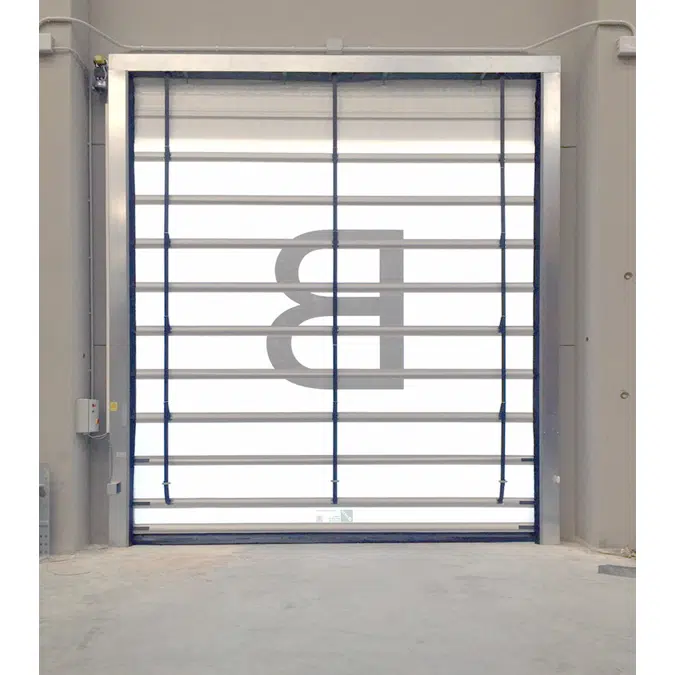

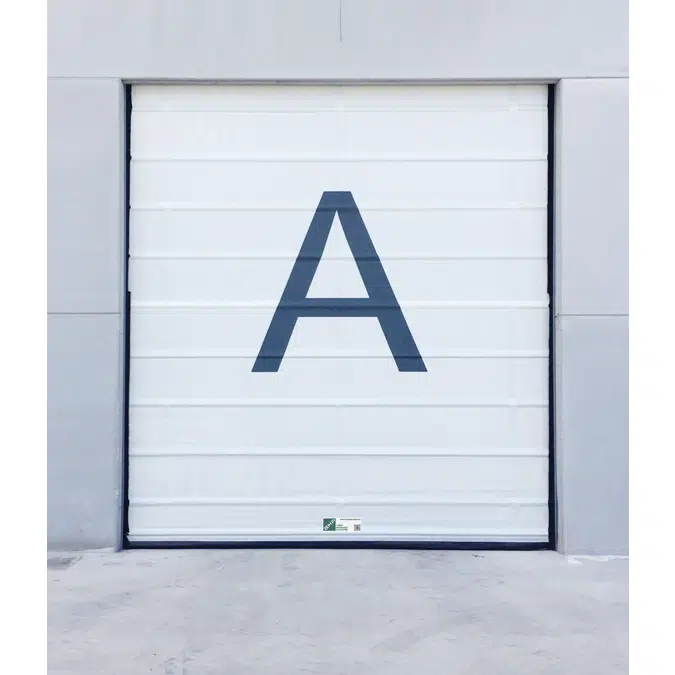

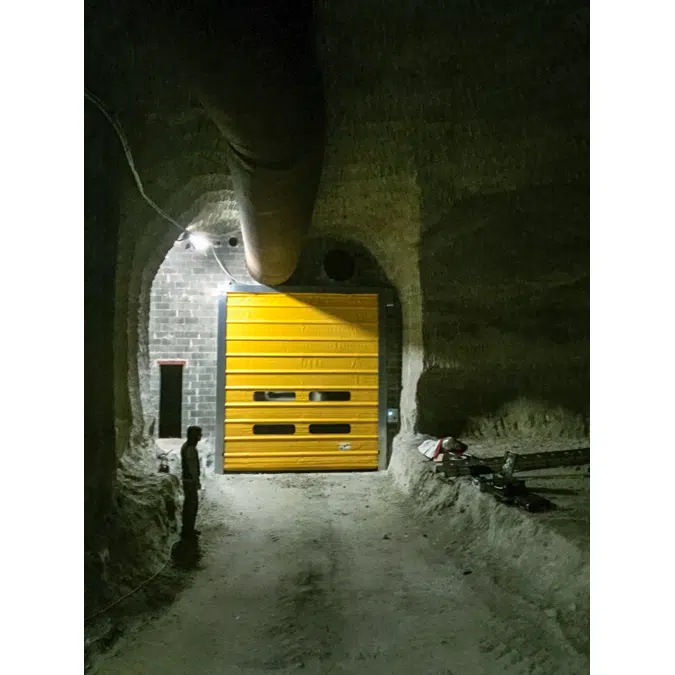

PACK door is a fold up door composed by perimeter self-supporting frame in galvanized steel and a PVC curtain reinforced with horizontal steel bars to assure a wind resistance up to 160 Km/h. Curtain is lifted by strong belts and collected on top. The patented conical guides give to the PACK a low air permeability and a good performance in case of high wind load. Studied for heavy industry too is suitable for all kind of industries. Perfect for internal and external applications, for big openings and designed for a long life. PACK is the right solution in case of strong wind and depressions.

Specification

FEATURES
Maximum dimensions:
W 20.000 mm x H 15.000 mm
Speed:
Max opening speed up to 1 m/s
Closing speed 1 m/s
Wind resistance:
Standard Class 2 up to 35 m² further on project till Class 4
Structure:
Self-supporting
Frame / motor cover hood:
Standard: Galvanized Steel
Optional: Powder coated Steel
Stainless Steel 441/304/316
Telo:
Standard:
PVC curtain fabric 900 gr/m²
Optional:
Insulated 3 mm
Insulated 7 mm
Translucent 35/40%
FDA (white)
Antistatic
Control panel:
Standard: Powder coated Steel box IP54 (300 x 500 x 150 mm)
Optional: Stainless Steel
PVC box IP65 (300 x 400 x 150 mm)
Contactors
Thermail modular protection
Power supply 3-ph, 3-230V
Power supply 3-ph, 3-400V
Star/Stop Button
Emergency stop button
IP rating for motor and control panel IP54
Safeties:
Standard: Photocells set IP65
WiFi safety edge IP65
Optional:
Multi ray light curtain barrier H2500 IP67
Emergency opening:
Standard:
Hand crank
Optional:
Counterweight system
Chain system
