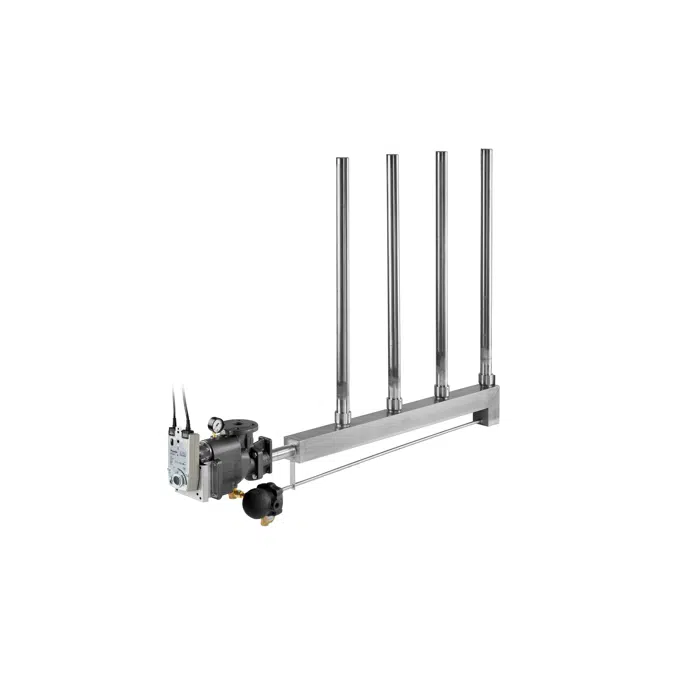

Condair ESCO - Live Steam Humidifier

Unique ref.: condair-esco
Brand: Condair
Product family: Air Humidifiers
Product group: Live Steam Humidifiers
Date of publishing: 2017-01-19
Edition number: 3
Type: Object (single object)
Download (12)

The Condair ESCO uses steam from a building’s existing steam network to provide humidification to an air handling unit (AHU) or duct. It conditions the steam to remove condensation and ensures that only dry steam is delivered for humidity control.

It can operate at up to 4bar and provide up to 2000kg/hr of humidification to an AHU. It incorporates a ceramic rotary disc valve that offers 0-100% modulation, very close control and prevents the possibility of steam leakage when closed.

The Condair ESCO’s steam lance has tiny inner nozzles that draw steam only from the centre of the steam lance, where it is at its hottest and driest. This ensures that any condensation that occurs around the cooler outer edges is not introduced to the duct.

  • Sealed ceramic rotary disk valve
  • A linear valve characteristic curve ensures an extremely high degree of control accuracy
  • Steam discharge free of condensation, thanks to patented stainless steel steam nozzles
  • Heating of the air flow through a jacket heating system can be dispensed with short humidifying distances


Material main: Stainless steel
Material secondary:
Designed in:
Manufactured in:

BIMobject Category: HVAC - HVAC
IFC classification: Humidifier
UNSPSC name: Humidifiers
UNSPSC code: 40101903
Uniclass 1.4 Code: L75422
Uniclass 1.4 Description: Humidifiers
Uniclass 2.0 Code: PR-02-39-84
Uniclass 2.0 Description: Steam Humidifiers
Uniclass 2015 Code: Pr_65_67_39_84
Uniclass 2015 Description: Steam humidifiers
NBS Reference Code: 02-39-84
NBS Reference Description: Steam Humidifiers
CSI MasterFormat 2014 Code: 23 84 13
CSI MasterFormat 2014 Title: Humidifiers
OmniClass Number: 23-33 27 15
OmniClass Title: Air Humidifiers
