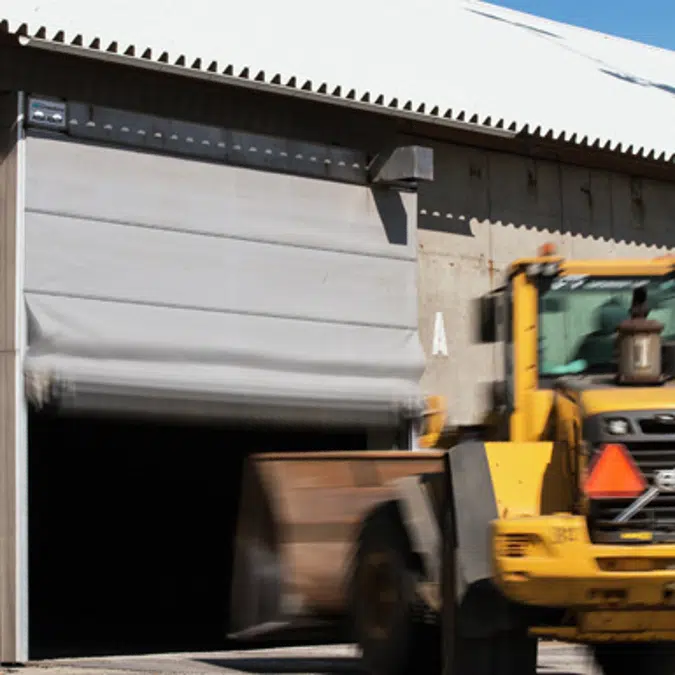

BIM objects - Free download! Crawford VL3110FCS vertical lifting fabric door

Door leaf • Door leaf made out of two layers of very strong vinyl-coated polyester fabric, separated by aluminium intermediate sections. • Intermediate section which gives strength to the door leaf and which creates a buffer between the inside and outside fabric walls. • Wind load is transferred to the vertical guide rails by the horizontal aluminium sections of the door leaf. • The door leaf is available in 9 standard colours. • Door leaf thickness: 100 mm. • Aluminium guide rails. Bottom section • The bottom section, made of steel and aluminium, is connected to the lifting belt via the safety arresters. • The bottom section contains an optical safety edge and a rubber seal on the bottom edge that creates a seal between the door and the floor. • Optical safety edge. Safety arresters and wind lock in stainless steel • Safety arresters stop the door if the lifting belt becomes slack or, in an unlikely event, would break. • Wind lock system locks the door when the door is closed. Surface treatment • Steel components corrosion treatment: category 3 according to ISO 12944.2. Higher class on request. Aluminium, plastic, stainless steel, zinc electroplated steel (~10u). Fixing elements are mainly hot dip galvanized (FZV). Door leaf screws protected with Geomet. Door features • Door range: MIN: 1810 mm x (no MIN. height) MAX (W x H): 6000 x 6000 mm (in combination). Other sizes available on request • Opening speed: up to 1.5 m/sec. • Temperature range: -35 °C to +70 °C • Compliance with all operational and safety instructions in EU Directives and the standards of the European Standardisation Committee (CEN) • Wind load (EN 12424) Class 3-5 (0.7-1.6 kPa, depending on size). • Water resistance (EN 12425) Class 3, 0.11 kPa (for a closed door). • Air permeability (EN 12426) Class 2, 12 m3/(m2h). • Thermal transmittance (EN 12428) Depending on door size, specific data on request. • Sound reduction (ISO 717) 15 dB Rw. • Operating system: Electrical operator Dimensions: x mm (WxH) Options: Door leaf  Standard: Polyester, 1100 dtex with plasticised PVC coating  Option: Arctic fabric. For environmental temperatures down to -54°C  Option: Heat resistant fabric with silicone coating  Option: Heat resistant fabric with aluminium coating  Option: Heat resistant fabric with aluminium polyurethane coating  Option: Sound reduction fabric  Option: Security fabric Vision panels 800mm x 800mm 800mm x 1600mm 1300mm x 800mm 1300mm x 1600mm Fabric color  Tan (RAL 1001)  Red (RAL 3001)  Blue (RAL 5005)  Green (RAL 6009)  Grey (RAL 7004)  Anthracite (RAL 7016)  White (RAL 9016)  White aluminium (RAL 9006)  Translucent white Header box  Gear motor on inside of the building  Gear motor on outside of the building  Gear motor in the door opening  Insulated  Stainless steel cladding and motor casing  Self-supporting header box Operator • Control system PLC-based • Protection class, control cabinet IP65 • Protection class, safety boxes IP67 • Protection class, motor IP55 • Protection class, brake resistor IP51 (with protection) • 3/phase 380-480V 50/60Hz power supply • Control voltage 24V DC • Fusing: 20 A / 32 A • Heat and cold resistance, exterior: -35 °C to +70 °C • Heat and cold resistance, inside control unit: -10 °C to +50 °C • Power consumption: 2.2 or 4.1 kW Options  Radio remote control  “Open" (during closing process) if open button is used - door immediately stops and opens completely)  Pull switch for OPEN / CLOSE  External push-button, key switch  “One-button function” - opens or closes door, depending on actual status (e.g. radio, pull switch)  Additional safety (e.g. photo cell, radar) – door immediately opens completely  Free contacts  Photo cell  Reduced opening height  Radar  Magnetic loop  Warning lights  Emergency power switch  Interlocking door function Other supplementary equipment  Control cabinet in stainless steel  Heating element in the control cabinet  Emergency power switch  Clamp strip covers in the same colors as the fabric  Side jambs (if posts for installing the guide rails are not available)  Side jambs in stainless steel  Wind deflectors (in combination with jambs)

Crawford VL3110FCS vertical lifting fabric door
