KnuckleHead Strut Support

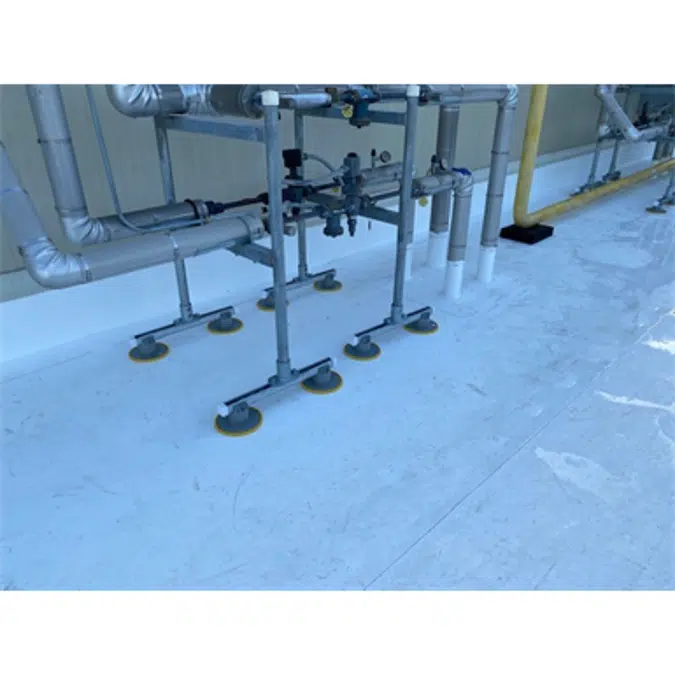

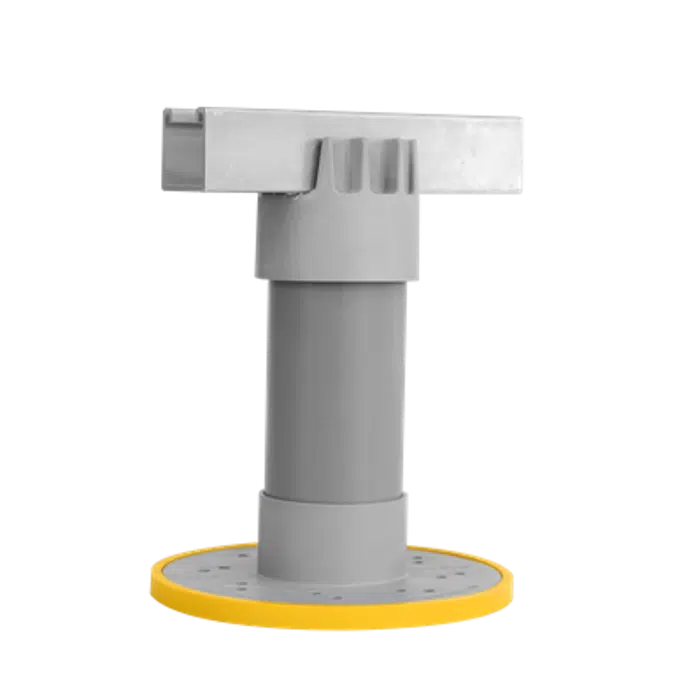

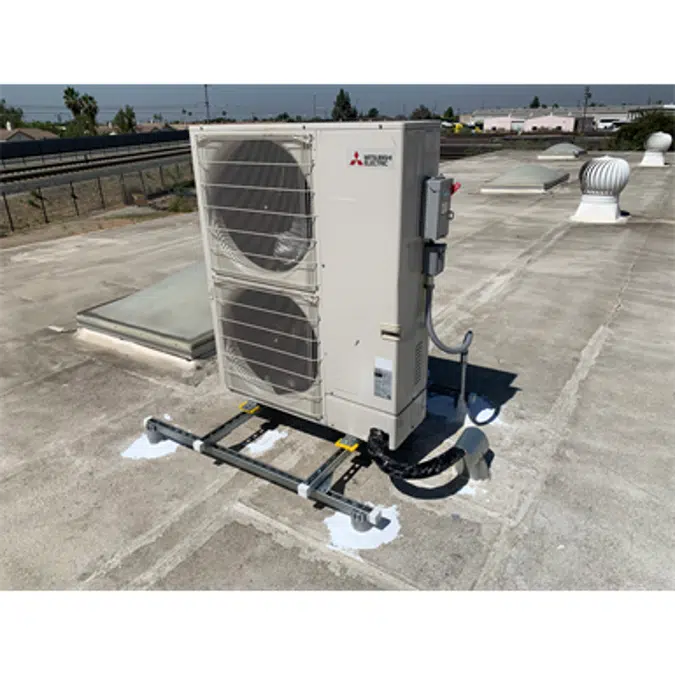

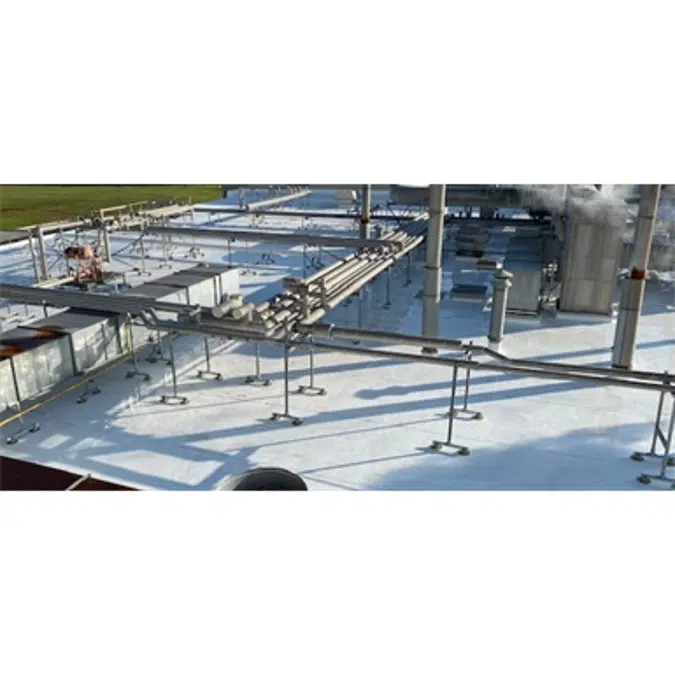

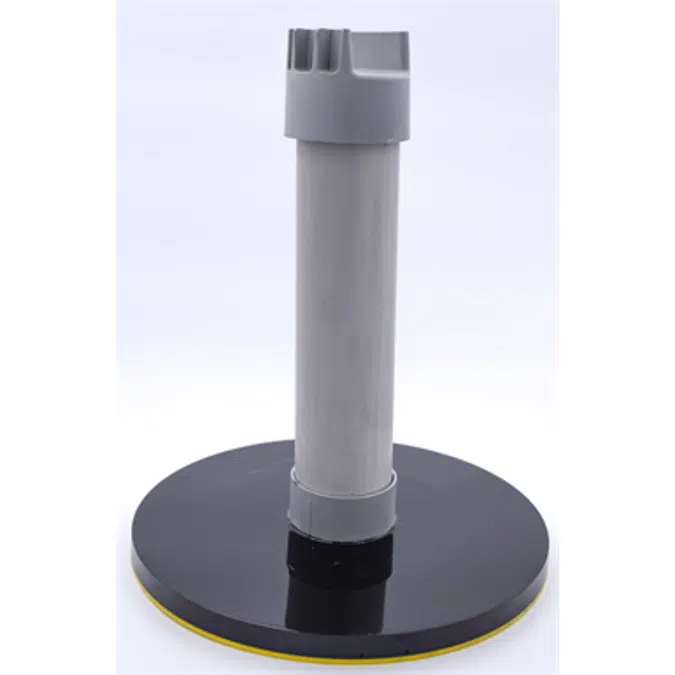

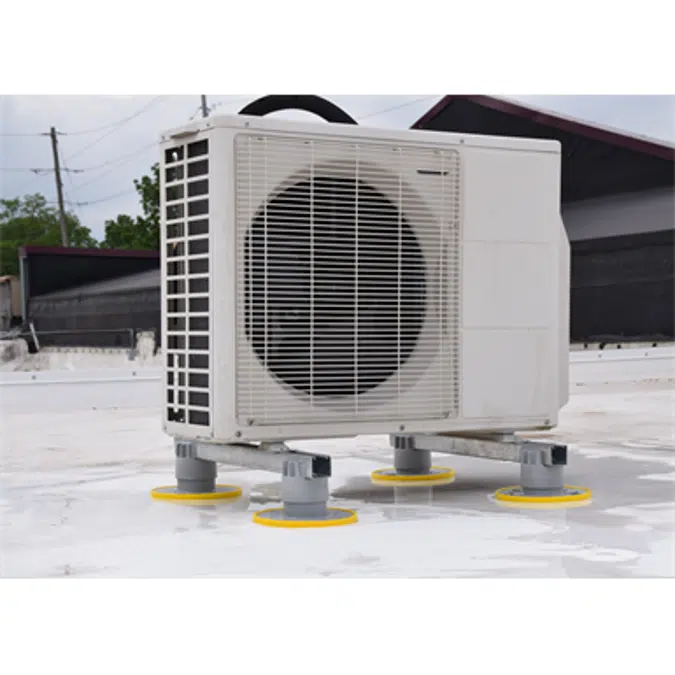

KnuckleHead Strut supports are designed to support a wide variety of equipment, including mechanical units, solar panels, pipes over 3 inches in outside diameter and duct work.  The KnuckleHead line is molded with glass-reinforced nylon which has aluminum like properties.  Glass-reinforced nylon is tough, weatherproof, UV stable, and impervious to freeze-thaw cycles.  Each KnuckleHead can support up to 600 pounds of weight.  The standard universal base is 7 inches in diameter, the optional Big Base is 12 inches in diameter and is recommended in free-standing applications over 12" in height.  The Strut KnuckleHead is height adjustable from 3.25 to 5 inches in total height by rotating the head, based on the use of 1 5/8 inch strut.  KnuckleHead extensions are available for applications exceeding this height.  The KnuckleHead line can free free-standing or mechanically attached using Green Link Adhesive/Sealant and/or fasteners.
