MetalHead Support System

Unique ref.: metalhead
Brand: Green Link Engineering
Product family: MetalHead Support System
Product group: MetalHead
Width (inches): 9.5
Height (inches): 5
Depth (inches): 5
Date of publishing: 2021-02-26
Edition number: 1
Type: Object (single object)
Download (2)

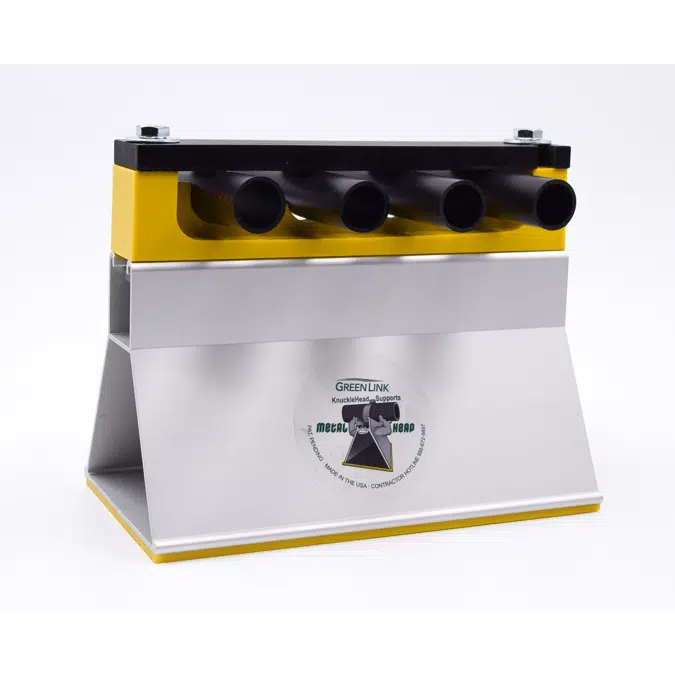

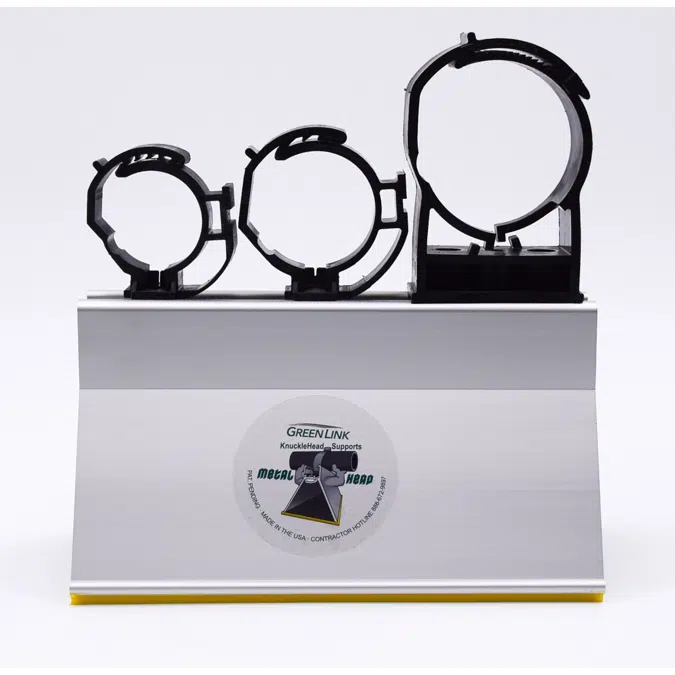

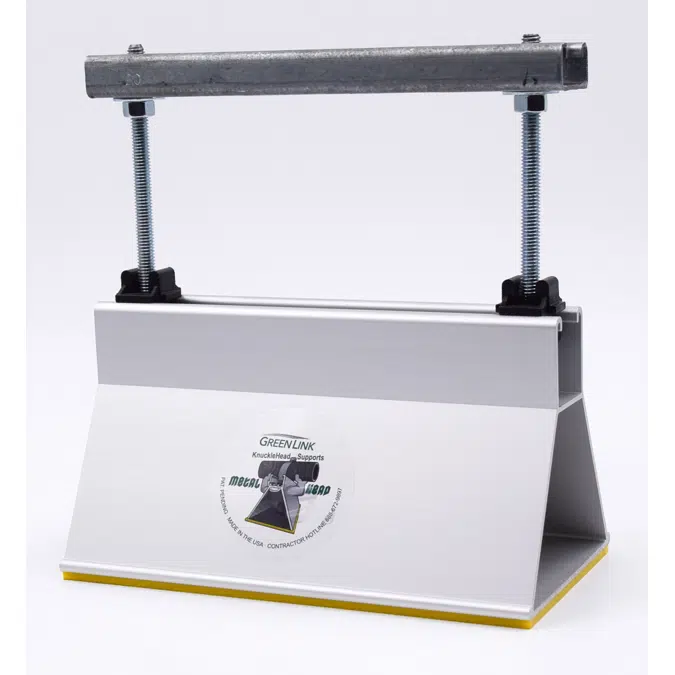

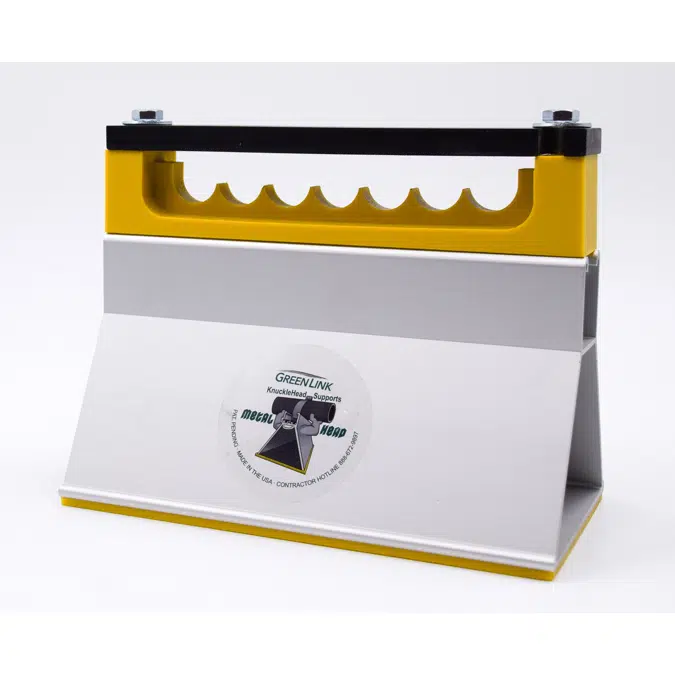

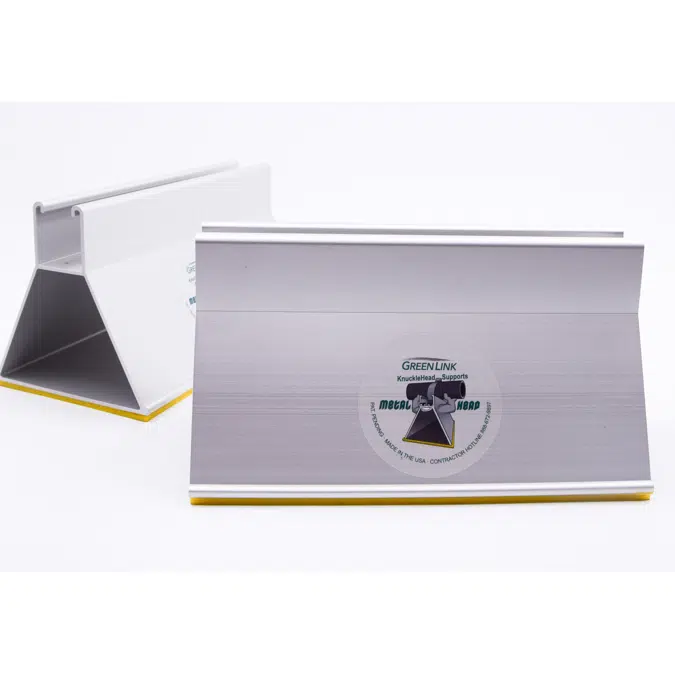

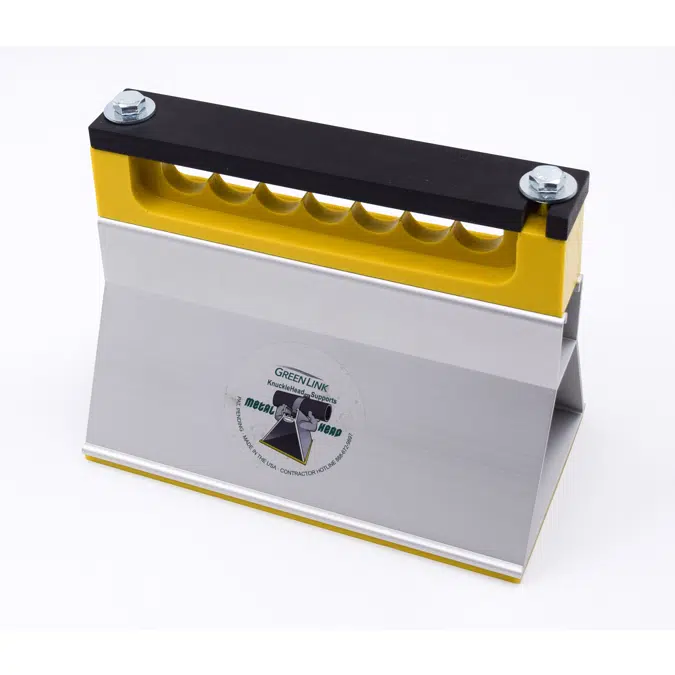

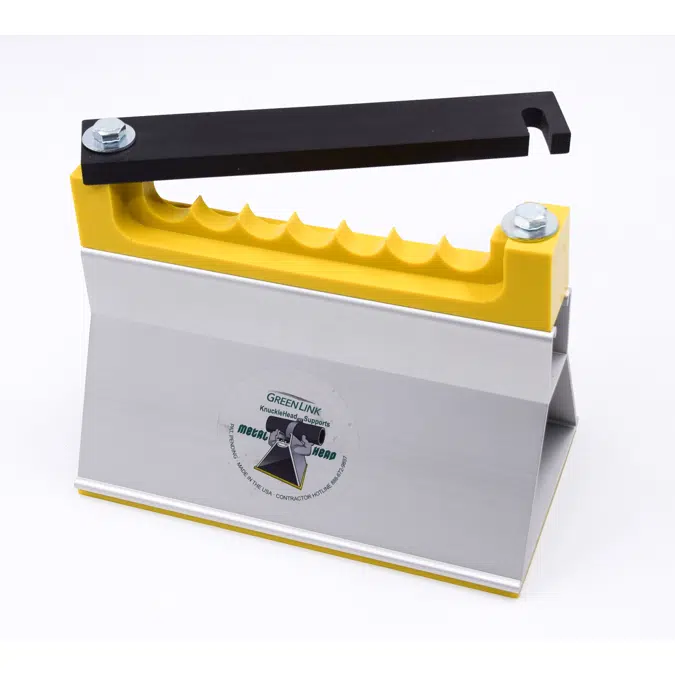

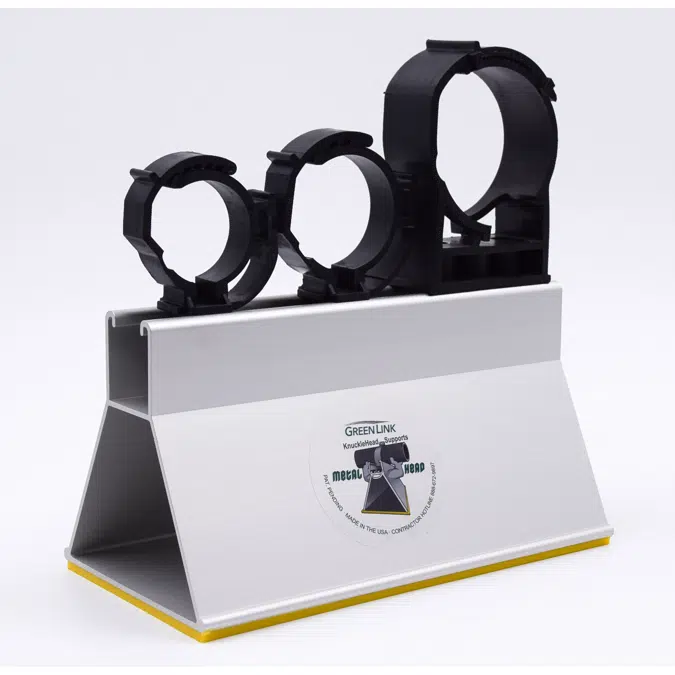

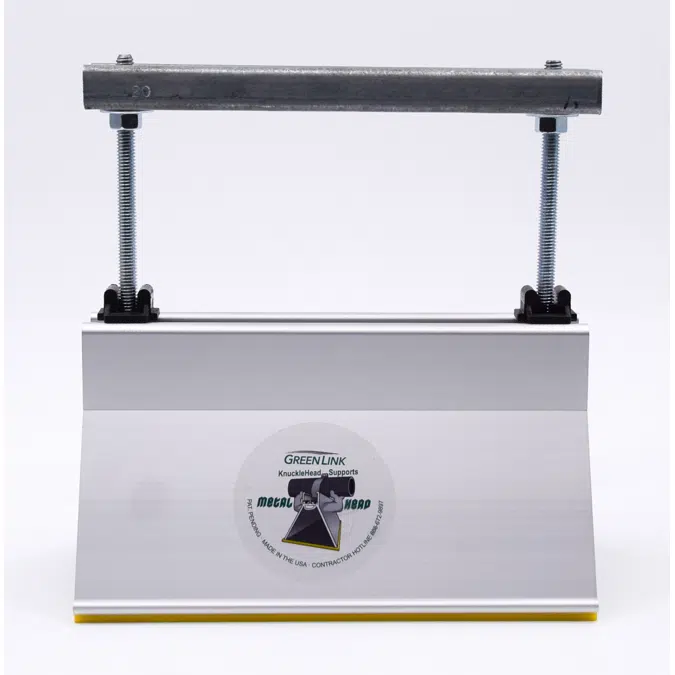

MetalHead is an extremely strong and durable support system for pipes, cable trays, ductwork, and HVAC/R equipment. The aluminum extrusion design provides a sturdy triangular base with the strut channel incorporated, which allows attachment of all standard strut hardware. MetalHead features 100-mil aluminum walls, which allow the
base to support 10,000 lb. vertical compression over a 50 sq.in. footprint. Its hard, anodized
surface is resistant to oxidation, salt spray and mild acids found in ponding water. The MetalHead support
includes a yellow molded urethane pad to protect vulnerable membrane substrates from abrasion or metallic
point-loading. The durability of this product allows Green Link to offer a twenty-year (material only) warranty.
MetalHead supports contain no toxic or carcinogenic material. They can be reused or completely recycled.
MADE IN THE U.S.A. – PATENT PENDING.
Note: Uniform load capacity is only for this component and this assembly. Please consult an engineer or
roofing manufacturer for the load capacity.


Material main: Aluminium
Material secondary: 2C Polyurethane
Designed in: United States
Manufactured in: United States
Weight Net (Lbs): 2

BIMobject Category: Construction - Roof Accessories
IFC classification: Roof
UNSPSC name: Roofing accessories
UNSPSC code: 301516
Uniclass 1.4 Code: L7815
Uniclass 1.4 Description: Pipe/duct supports
Uniclass 2.0 Code: PR-55-34-64
Uniclass 2.0 Description: Pipe Supports
Uniclass 2015 Code: Pr_80_77_27_73
Uniclass 2015 Description: Roof equipment supports
NBS Reference Code: 55-34-64
NBS Reference Description: Pipe Supports
CSI MasterFormat 2014 Code: 23 05 29
CSI MasterFormat 2014 Title: Hangers and Supports for HVAC Piping and Equipment
OmniClass Number: 23-27 43 13
OmniClass Title: Mechanical Pipe Supports
