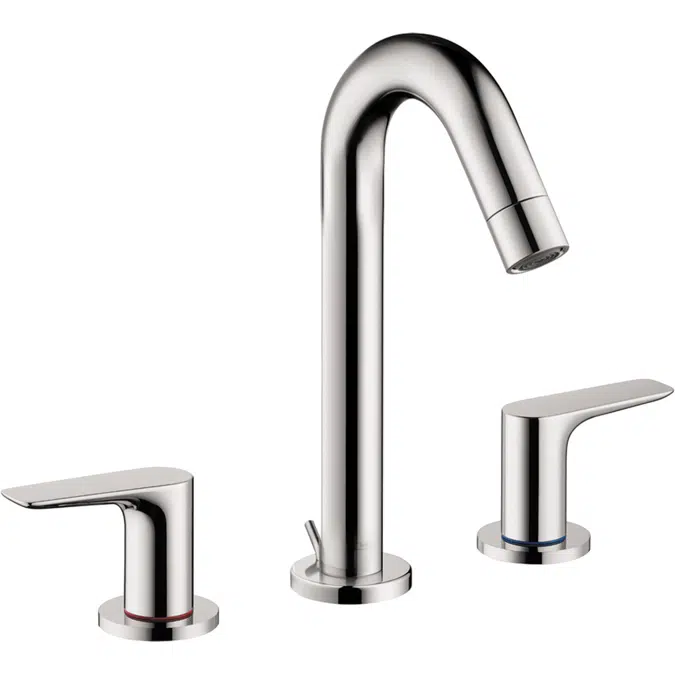

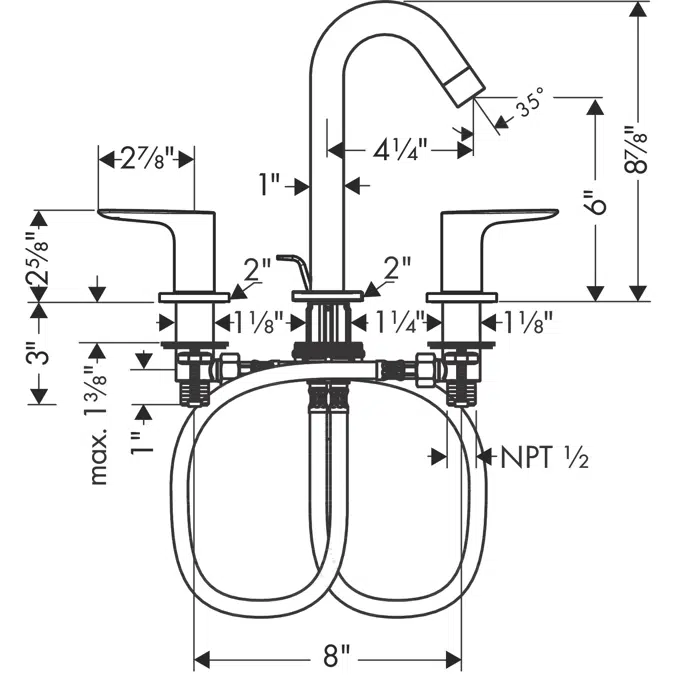

Logis 3-hole basin mixer 150 with pop-up waste set

Specification

Specification

• Surfaces: - 71533671 Matt Black - 71533001 Chrome - 71533005 Chrome - 71533821 Brushed Nickel - 71533825 Brushed Nickel Specification: • ComfortZone 150 • projection: 108 mm • spray type: normal spray • maximum flow rate at 3 bar: 4,5 l/min • ceramic valves hot/ cold 90° • suitable for continuous flow water heaters • pop-up waste set G 1 • connection type: NPT ½

Technical specification

Technical specification

• Unique ref.71533USA
• Product familyBasin mixers
• Product groupLogis
• TypeObject (single object)
• Date of publishing2023-03-13
• Edition number1
• Height (inches)8.88
• Width (inches)13.75
• Depth (inches)5.5

Links

Links

• Product urlhttps://www.hansgrohe.com/articledetail--71533671

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Lbs)3

Classification

Classification

• BIMobject CategorySanitary - Taps/Faucets/Brassware
• IFC classificationValve
• ETIM CodeEC010862
• ETIM NameBath mixing tap
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_87
• Uniclass 2015 DescriptionTaps and water supply outlet fittings
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
