F3S Self-closing washbasin tap F3SV1009

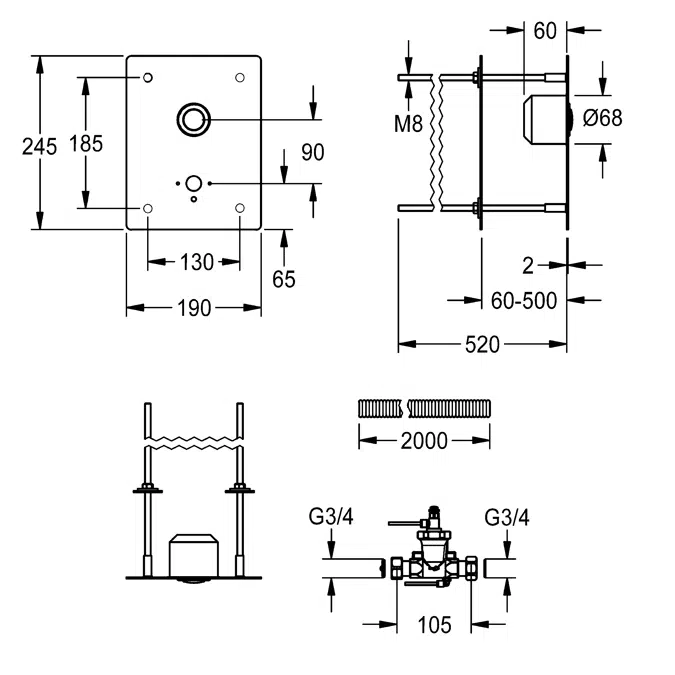

F3S self-closing straight-way valve DN 15 for sanitary facilities, with remote control for concealed mounting. Especially suitable for facilities at risk of vandalism. Self-closing head part, hydraulically controlled for remote control, piston-free design, self-closing, for connection to pre-mixed hot water or cold water. All-metal construction, visible parts polished chromium-plated. Stainless steel cover plate 190 x 245 x 2 mm for invisible mounting via threaded rods up to a wall thickness of 50 to 500 mm, with recess for KWC wall outlet DN 15 (required separately), pre-mounted push-button actuation. Flush-mounted box, hydraulic control lines with empty conduit (2 m) and mounting material. Connection and maintenance via service room

Wall outlet must be ordered separately.

Specification

built-in fitting model	Finishing section
compatible A3000 open	no
cover plate height	245 mm
cover plate width	190 mm
depressurised	no
adjustable flow time	yes
functional principle	hydraulic self-closing
hygiene flushing	no
diameter nominal	DN 15
inlet size	G 1/2 B
locking mechanism	Top section, non-ceramic
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
maximum flow time	20 Seconds
minimum flow pressure	1 bar
minimum flow time	10 Seconds
type of mixing	no
pop-up waste set	no
with rosettes/cover plate	yes
protective shutdown	no
sound insulation	no
spout	fixed
surface finish casing	satin finished
surface finish fitting	raw
surface treatment fitting	none
temperature limit	no
thermal disinfection	no
with transformer/power supply	no
type of mounting	concealed
type of operation	manual operation
type of tap	bib tap
volume flow rate at 3 bar	0.3 l/s
water connection	threaded connection (internal)
accent colour	chrome-look (glossy)
basic colour	stainless steel-look

Technical specification

Unique ref.2030067876
Product familyTaps
Product groupSelf closing taps
TypeObject (single object)
Date of publishing2025-07-04
Edition number1
Height (mm)245
Width (mm)190

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p2030067876

Material mainStainless steel
Material secondaryBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)2.9

Classification

BIMobject CategorySanitary - Taps/Faucets/Brassware
Uniclass 2015 CodePr_40_20_87_98
Uniclass 2015 DescriptionWashbasin taps
