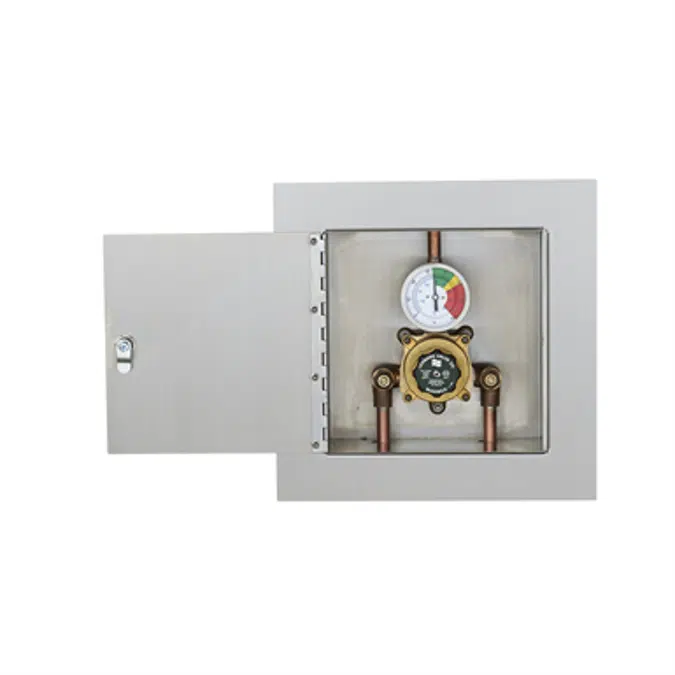

LVC Model - TA-300-LF - Emergency Mixing Valve for a Single Eye/Face Wash in a SS Cabinet

Unique ref.: ta-300-lf-ststl-exp
Brand: Leonard Valve Company
Product family: Mixing Valves for Liquid Services
Product group: Emergency Mixing Valves
Date of publishing: 2016-02-03
Edition number: 1
Type: Object (single object)
Download (3)
>Minimum Flow = 2 gpm - Maximum = 9 gpm
>Bi-Metal Thermostatic Element w/ 10 Year Warranty
>1/2" Inlets with Union Angle Check Stops
>1/2" Outlet with Dial Thermometer - Locking Regulator
>Internal 4 gpm Cold Water By-Pass @ 30 PSID
>Approvals: ASSE 1071
>Eco-Mix Certified Lead Free Construction
>Mounted in stainless steel cabinet with hinged door and cylinder lock


Material main:
Material secondary:
Designed in: United States
Manufactured in: United States

BIMobject Category: Plumbing - Valves
This product is available in:
North America
  • Canada
  • Mexico
  • United States

BIMobject SEEK Properties

Plumbing - Valves

Name Value
Connection Type Solder

Leonard Valve Company

Properties

Name Value
Connection Size of Outlet 1/2"
Connection Size of Inlets 1/2"
Cabinet Dimensions 10"W x 10"H x 5"D
Minimum Flow Rate 2 GPM
Weight 21 lbs
Emergency By-Pass Flow Rate 4 GPM
Valve and Assembly Dimensions 6"W x 7"H
Maximum Flow Rate 9 GPM
Valve Body Material Cast Bronze
Cabinet Mounting Exposed | Recessed
Valve Finish Rough Bronze or Chrome Plated
Cabinet Material Stainless Steel
Cabinet Yes
