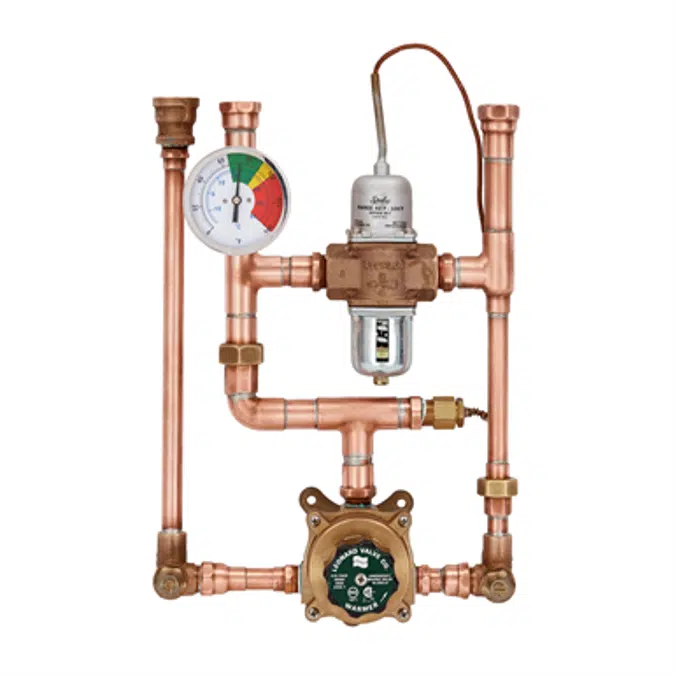

LVC Model - TA-350-LF - Emergency Mixing Valve for a Single Eye/Face Wash with Override Protection

Unique ref.: ta-350-lf
Brand: Leonard Valve Company
Product family: Mixing Valves for Liquid Services
Product group: Emergency Mixing Valves
Date of publishing: 2016-02-03
Edition number: 1
Type: Object (single object)
Download (2)
>Minimum Flow = 2 gpm - Maximum = 9 gpm
>Bi-Metal Thermostatic Element w/ 10 Year Warranty
>1/2" Inlets & Outlet with Dial Thermometer - Locking Regulator
>Redundant Cold Water By-Pass on Outlet Set @ 90F
>Internal 4 gpm Cold Water By-Pass @ 30 PSID
>Approvals: ASSE 1071
>Eco-Mix Certified Lead Free Construction in Rough Bronze Finish


Material main:
Material secondary:
Designed in: United States
Manufactured in: United States

BIMobject Category: Plumbing - Valves
This product is available in:
North America
  • Canada
  • Mexico
  • United States

BIMobject SEEK Properties

Plumbing - Valves

Name Value
Connection Type F-NPS

Leonard Valve Company

Properties

Name Value
Valve and Assembly Dimensions 11"W x 16"H
Minimum Flow Rate 2 GPM
Weight 20 lbs
Connection Size of Outlet 3/4"
Connection Size of Inlets 3/4"
Emergency By-Pass Flow Rate 4 GPM
Maximum Flow Rate 9 GPM
Valve Body Material Cast Bronze
Valve Finish Rough Bronze
