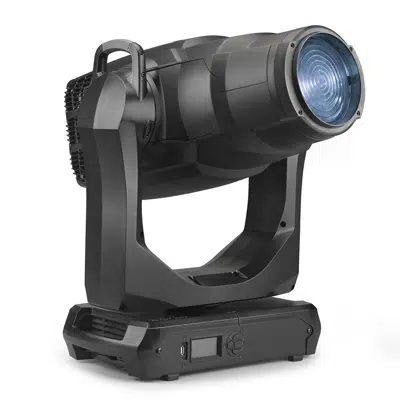

ERA 800 Profile 800 W LED Moving Head Profile with CMY Color Mixing

Combining a fully-featured, cost-efficient and no-nonsense fixture, the Martin ERA 800 Profile is perfect for stadium-sized entertainment and rental productions. Designed to fulfill the demand for a tour-worthy, compact, LED profile moving head with enhanced gobo load-out aimed for the largest stages, the ERA 800 Profile bundles an extremely efficient 800 W, 6,500 K LED engine that produces a powerful 34,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment and dual rotating gobo wheels plus an additional static wheel. It’s also loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prisms.

In addition to the largest concert and touring productions, the ERA 800 Profile is ideal for cruise lines, houses of worship, live TV productions, and corporate shows that require a truly versatile LED profile that offers near limitless design and usage potential.

FEATURES

  • Bright 800 W / 6,500 K LED light source
  • 34,000 lumen output
  • Crisp optics with flat field
  • 1:8 fast zoom
  • Fat beam look with 160 mm front lens
  • CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO - daylight to tungsten CCT control and expansion of the CMY palette
  • 6-slot color wheel - for added color choice and split color effects
  • 12 rotating/indexing gobos - all renowned Martin glass gobos
  • 7 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Iris – fast and tight iris
  • Two prisms - 4-facet and linear - rotation and index control for dynamic effects
  • Soft frost - a light frost leaves gobo artwork visible with a beautiful, soft edge
  • Heavy frost - for wash light effects
  • Compact and low weight design

Keywords: Harman

Specification
  • PHYSICAL

    Weight: 40.0 kg (88.2 lbs.)

    Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)

    Length (head): 608 mm (24.0 in.)

    Length (base): 416 mm (16.4 in.)

    Width (base): 290 mm (11.4 in.)

    Width (across yoke): 431 mm (17.0 in.)

    Height (head straight up): 802 mm (31.6 in.)

    Height (maximum): 851 mm (33.5 in)

Technical specification
  • Unique ref.era-800-profile
  • Collection setAutomated Lights
  • CollectionLED
  • TypeObject (single object)
  • Date of publishing2021-05-19
  • Edition number1
Related
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Lighting
  • IFC classificationLight Fixture
  • UNSPSC nameLighting Fixtures and Accessories
  • UNSPSC code3911
  • Uniclass 1.4 CodeJV5
  • Uniclass 1.4 DescriptionGeneral lighting
  • Uniclass 2.0 CodeSS-70-80
  • Uniclass 2.0 DescriptionLighting Systems
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • NBS Reference Code70-80
  • NBS Reference DescriptionProcess Power And Lighting
  • CSI MasterFormat 2014 Code26 50 00
  • CSI MasterFormat 2014 TitleLighting
  • OmniClass Number23-35 47 11
  • CSI UniFormat II CodeD5020
  • CSI UniFormat II TitleLighting & Branch Wiring
