MI-DIAL

MI-DIAL

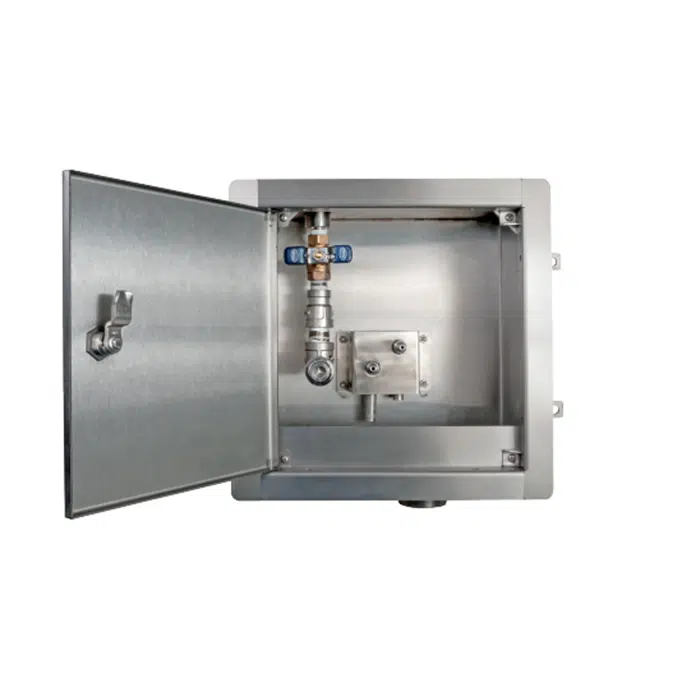

MIFAB® MI-DIAL supply and waste dialysis box is constructed of 16 gauge, Type 316 stainless steel (satin finish) continuous welded corners, four mounting anchor tabs, and removable finishing frame and door, one 1/2″ NPT PVC supply connection with PVC ball valve and 3/4″ hose connection. Bracket with grommets for two 3/8″ diameter hose, and 2” stainless steel drain connection with sloped bottom.

Specification

Dialysis Box with One Valve Door

Technical specification

Unique ref.mi-dial
Product familyDialysis Boxes
Product groupMI-DIAL
TypeDocumentation (information only)
Date of publishing2021-02-26
Edition number1

Links

Product urlhttps://www.mifab.com/products/mi-dial-dialysis-box-with-one-valve-door/
Installation instructionshttps://www.mifab.com/products/mi-dial-dialysis-box-with-one-valve-door/
Technical descriptionhttps://www.mifab.com/Catalog/Library/MI-DIAL.pdf

Related

Material mainStainless steel
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Plumbing
Uniclass 2015 CodeSs_40_15_75_75
Uniclass 2015 DescriptionSanitary accessory systems
CSI MasterFormat 2014 Code22 13 16
CSI MasterFormat 2014 TitleSanitary Waste and Vent Piping
CSI UniFormat II CodeD2090
CSI UniFormat II TitleOther Plumbing Systems

Region availability

North America
United States
