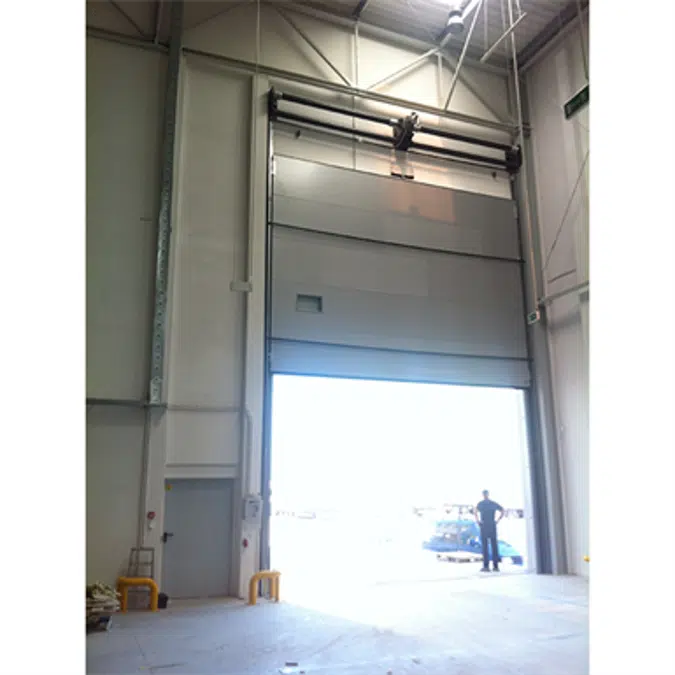

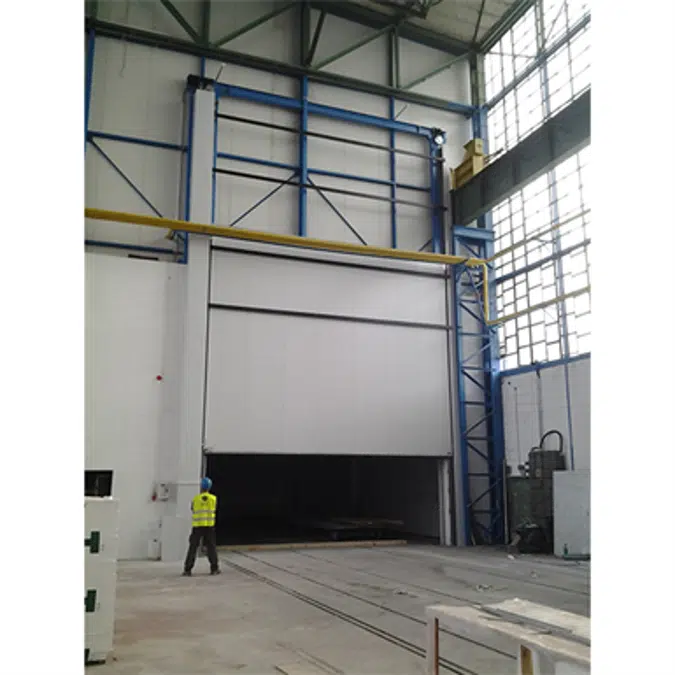

GGS VERTICAL FIRE SLIDING DOOR

Are usually used in case of high lintel and limited space on the sides of the opening. They are custom-made according to the customer’s dimensional requirements. They are tested according to European standards and approval of Building Research Institute No. AT-15-8452 / 2013.

Door closing is typically gravity-operated or using one of the offered electric motors. The door may be supplied with an emergency exit door with or without a threshold, and equipped according to individual needs. Doors are available in a smoke control or an Ex version.

Specification
  • DOOR STRUCTURE:

    The door consists of individual slats based on the steel frame structure. Slats are covered with a flame-retardant material and metal sheet;
    Stability of the of door leaf is achieved by strengthening the steel panels with the profiles connected with threaded rods;
    The assembled door leaf is equipped with two roller carriages and is suspended in the door track on steel cables with rupture protection;
    Doors are available in a smoke control or an Ex version;
    Guaranteed mechanical strength of the door: 50 000 operating cycles;

Technical specification
  • Unique ref.GGS_VERTICAL_FIRE_SLIDING_DOOR
  • Collection setFire Gate
  • CollectionVertically Sliding
  • TypeObject (single object)
  • Date of publishing2020-02-05
  • Edition number1
Related
  • Material mainSteel
  • Material secondaryComposite
  • Designed inPoland
  • Manufactured inPoland
Classification
  • BIMobject CategoryDoors - Fire Doors & Shutters
  • UNSPSC nameFire protection
  • UNSPSC code4619
  • Uniclass 1.4 CodeL41121
  • Uniclass 1.4 DescriptionFiredoors
  • Uniclass 2.0 CodeSS-25-60-30
  • Uniclass 2.0 DescriptionFire Stopping Systems
  • Uniclass 2015 CodePr_30_59_24_28
  • Uniclass 2015 DescriptionFire doorsets
  • CSI MasterFormat 2014 Code10 44 00
  • CSI MasterFormat 2014 TitleFire Protection Specialties
  • OmniClass Number23-17 11 31
  • CSI UniFormat II CodeD40
  • CSI UniFormat II TitleFIRE PROTECTION
