Pinewood roof window Extension Fixed - GIL
| Unique ref.: | GIL |
|---|---|
| Brand: | VELUX roof windows |
| Product family: | roof windows |
| Product group: | Special function roof windows |
| Date of publishing: | 2019-08-06 |
| Edition number: | 4 |
| Type: | Object (single object) |
Downloads

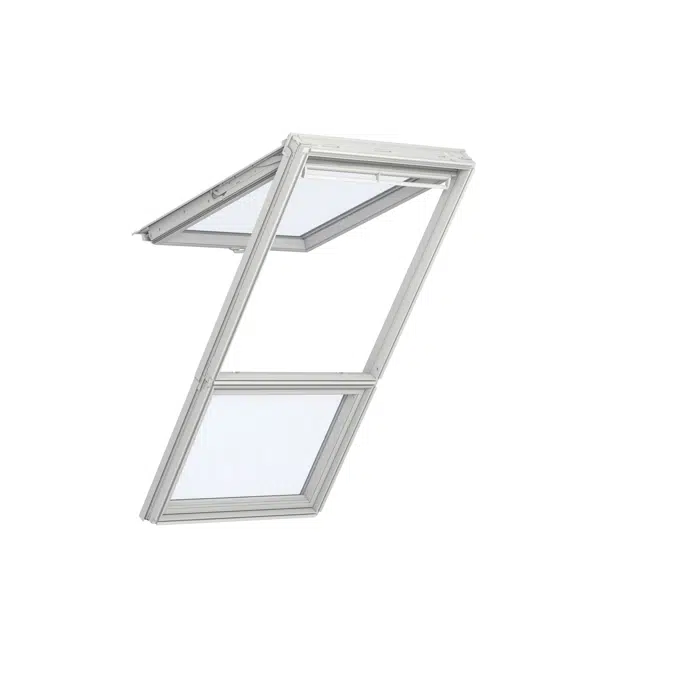

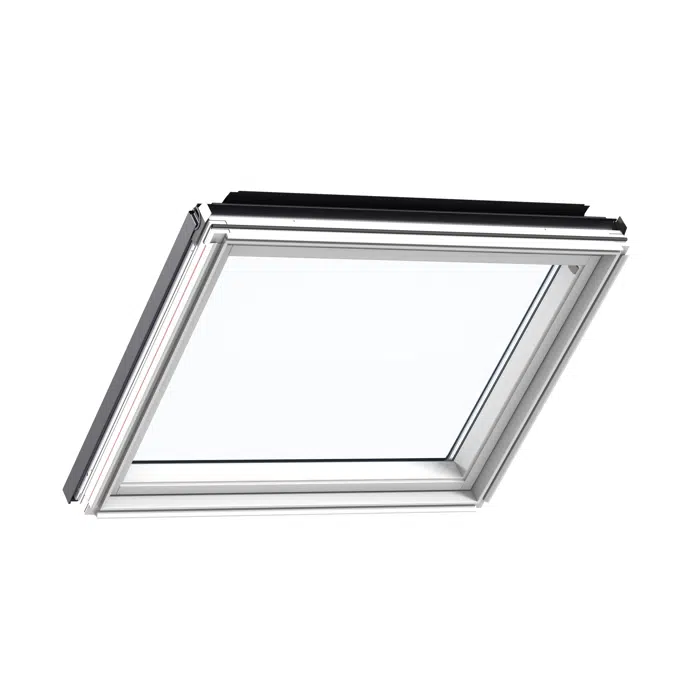

GIL is an additional fixed element that can be installed directly below a centre pivot or top-hung roof window on roof pitches between 15-90°. Cleaning of the outer glass pane is by opening the roof window above.

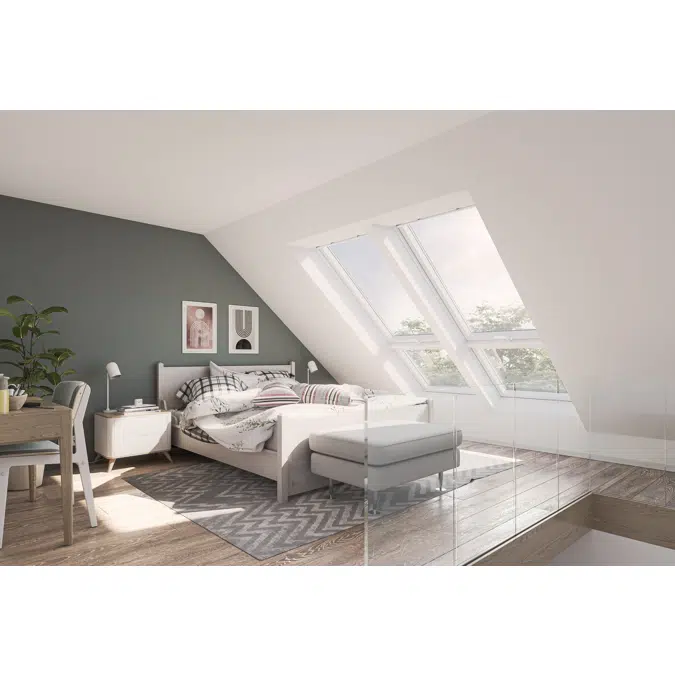

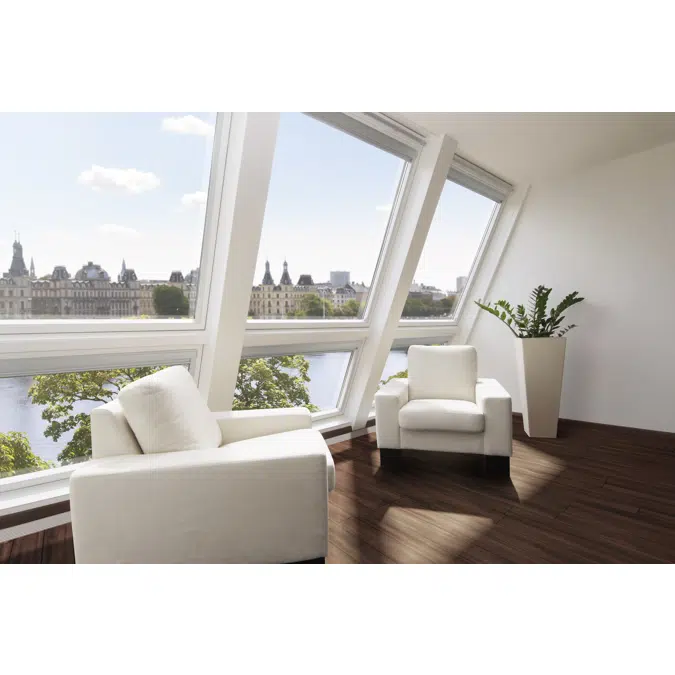

The GIL window allows even more daylight and offers a great view when standing or when seated.
The frame and sash are made of high-quality laminated pinewood coated with impregnation and layers of water-based acrylic clear lacquer of white paint.
Externally the window has maintenance-free cover parts.
VELUX roofwindows roofwindow roof windows roof window skylight skylights
External Frame Sizes:
MK34 – 780mm wide x 920mm high
PK34 – 942mm wide x 920mm high
SK34 – 1140mm wide x 920mm high
UK34 – 1340mm wide x 920mm high
Daylight Areas:
MK34 – Daylight area 0.44m²
PK34 – Daylight area 0.56m²
SK34 – Daylight area 0.70m²
UK34 – Daylight area 0.85m²
Finishes:
Internal - Laminated pinewood coated with impregnation.
White Paint (NCS standard colour: S 0500-N, nearest RAL standard colour: 9003).
Clear Lacquer.
External – Maintenance-free cover parts.
Lacquered Aluminium (NCS standard colour: S 7500-N, nearest RAL standard colour 7043).
Untreated Copper.
Titanium Zinc.
| Product url: | https://www.velux.co.uk/professional/bim-cad/gil_wp |
|---|---|
| Installation instructions: | https://weshare.velux.com/A/We%20Share/64061?encoding=UTF-8 |
| COBie Product Data Sheet: | |
| Product certification: | https://www.velux.co.uk/help-and-advice/ce-marking |
| Technical description: | https://velcdn.azureedge.net/-/media/marketing/uk/technical/bimcad/externa... |
| Instruction video: | |
| GTIN code: |
The Qr code includes the static URL below and will bring you back to this page if scanned by a device like iPhone or smartphone
https://www.bimobject.com/en-us/velux/product/gil
| Material main: | Pine |
|---|---|
| Material secondary: | Glass |
| Designed in: | Denmark |
| Manufactured in: | Denmark |
| BIMobject Category: | Windows - Roof Window |
|---|---|
| IFC classification: | Window |
| UNSPSC name: | Roofing accessories |
| UNSPSC code: | 301516 |
| Uniclass 1.4 Code: | JL11 |
| Uniclass 1.4 Description: | Rooflights/Roof windows |
| Uniclass 2.0 Code: | PR-59-72 |
| Uniclass 2.0 Description: | Roof Window Units |
| Uniclass 2015 Code: | Ss_30_30_72_73 |
| Uniclass 2015 Description: | Roof window systems |
| NBS Reference Code: | 59-72 |
| NBS Reference Description: | Roof Window Units |
| CSI MasterFormat 2014 Code: | 08 61 00 |
| CSI MasterFormat 2014 Title: | Roof Windows |
| OmniClass Number: | 23-17 13 23 |
| OmniClass Title: | Roof Windows |
| CSI UniFormat II Code: | B3020 |
| CSI UniFormat II Title: | Roof Openings |
