Vertical Pinewood Window Element Side/Bottom-hinged - VFA/B
| Unique ref.: | VFA-VFB |
|---|---|
| Brand: | VELUX roof windows |
| Product family: | roof windows |
| Product group: | Special function roof windows |
| Date of publishing: | 2019-08-06 |
| Edition number: | 1 |
| Type: | Object (single object) |

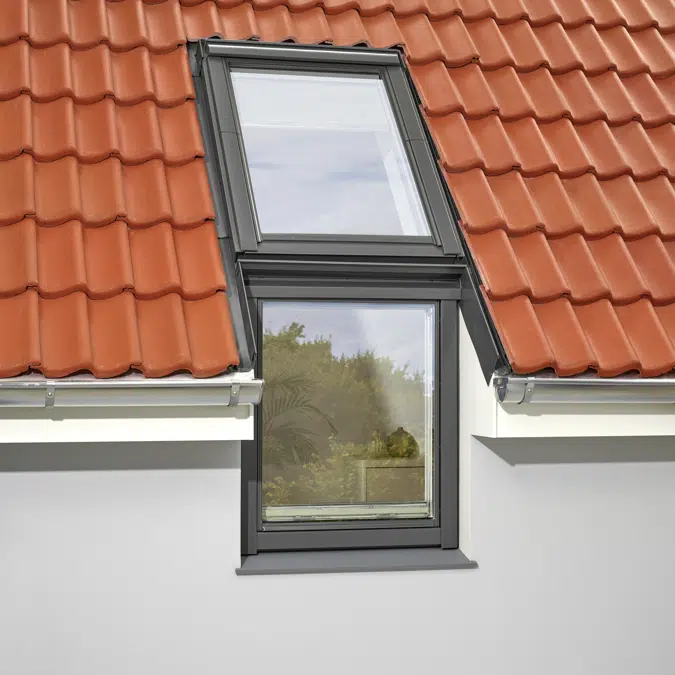

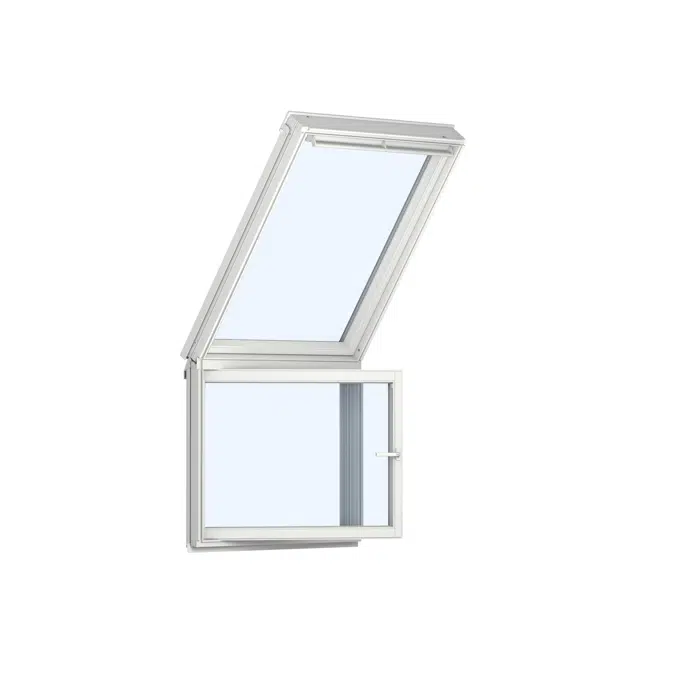

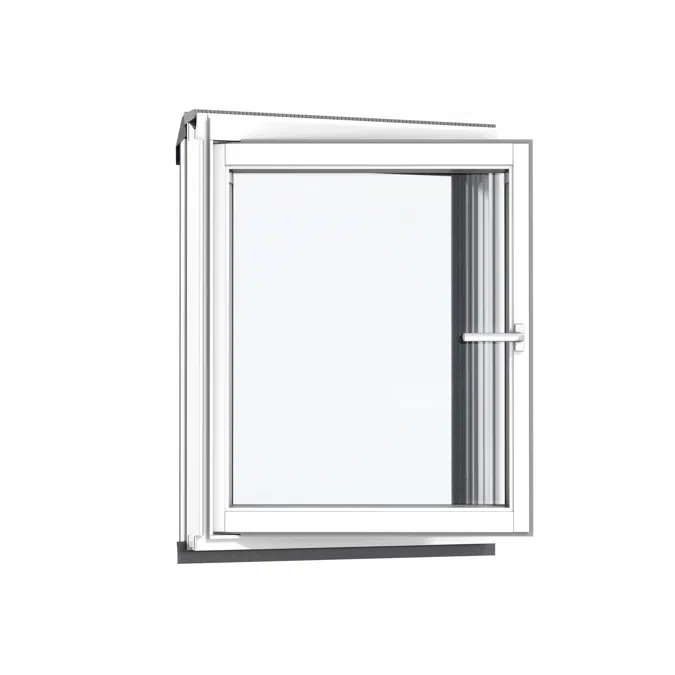

VFA & VFB are tilt and turn elements that can be installed vertically in the facade as an addition below a centre-pivot or top-hung roof window on roof pitches between 15-55°.

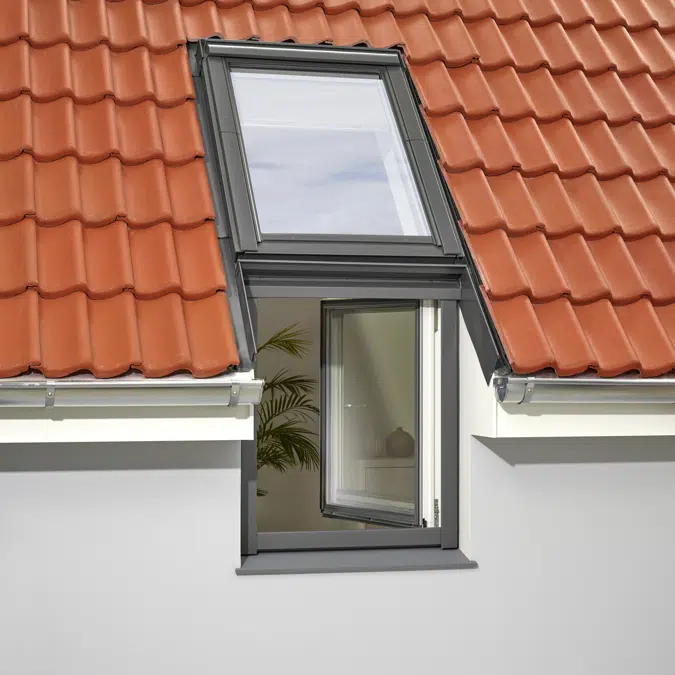

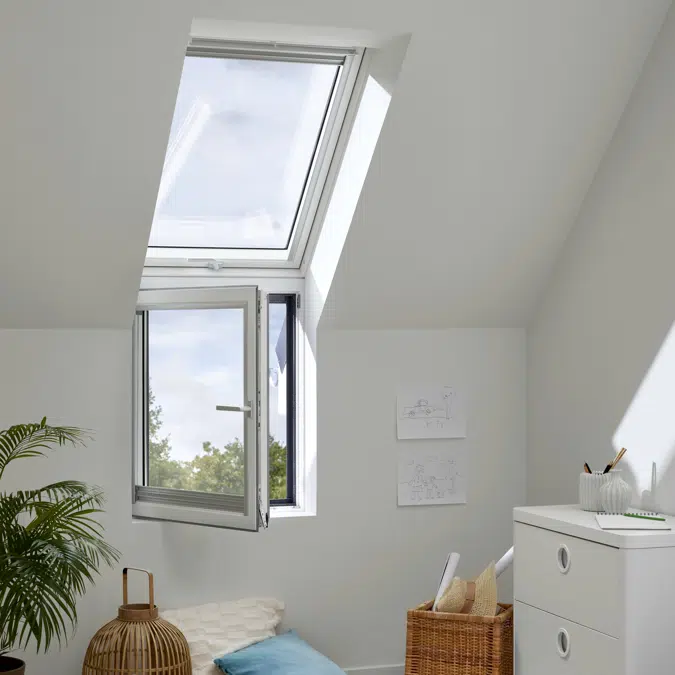

The sash opens inwards from a handle positioned on the side of the sash. The VFA is hinged on the left (when viewed from inside) and the VFB is hinged on the right (when viewed from inside) meaning they are suitable for escape/rescue opening purposes.

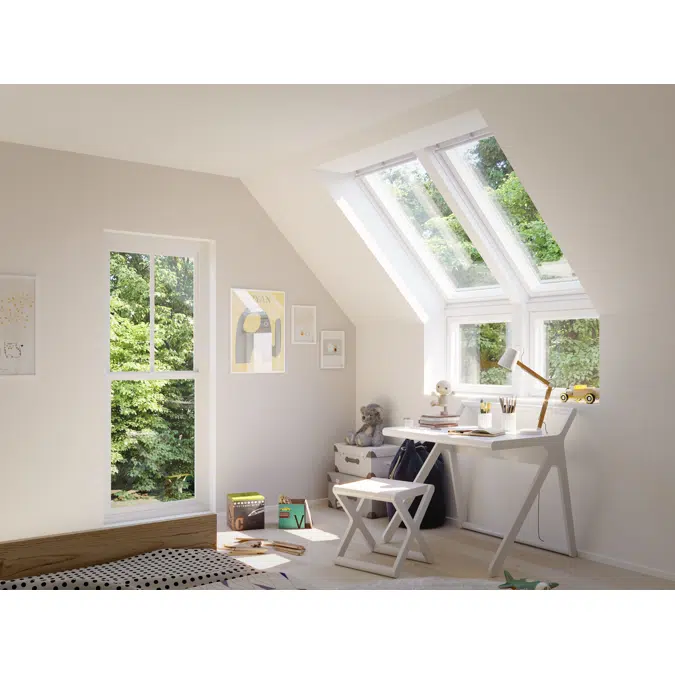

The VFA & VFB windows allow even more daylight and offer great views when standing or when seated.

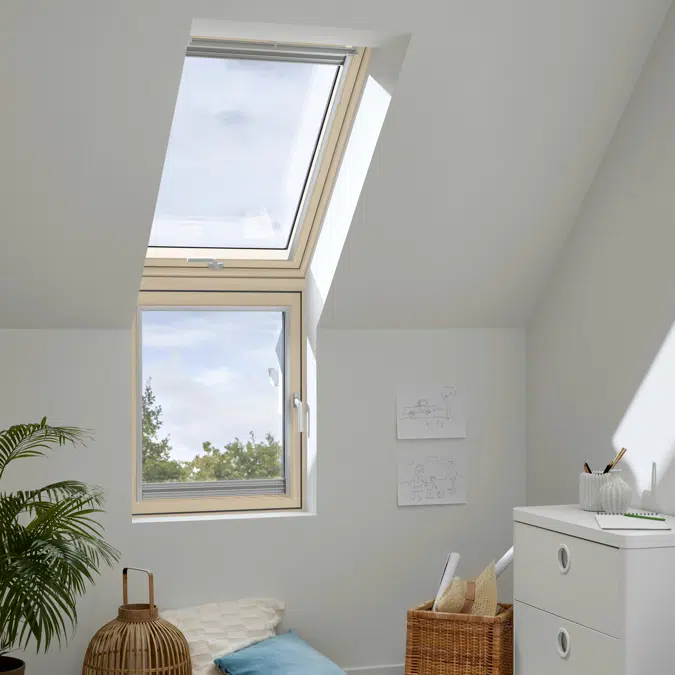

The frame and sash are made of high-quality laminated pinewood coated with impregnation and layers of water-based acrylic clear lacquer or white paint.
Externally the windows has maintenance-free cover parts.
VELUX roofwindows roofwindow roof windows roof window skylight skylights extension extensions
External frame sizes:
MK35 – 780mm wide x 954mm high
MK36 – 780mm wide x 1154mm high
MK38 – 780mm wide x 1374mm high
PK35 – 942mm wide x 954mm high
PK36 – 942mm wide x 1154mm high
PK38 – 942mm wide x 1374mm high
SK35 – 1140mm wide x 954mm high
SK36 – 1140mm wide x 1154mm high
SK38 – 1140mm wide x 1374mm high
Daylight Areas:
MK35 – Daylight area 0.44m²
MK36 – Daylight area 0.56m²
MK38 – Daylight area 0.69m²
PK35 – Daylight area 0.56m²
PK36 – Daylight area 0.71m²
PK38 – Daylight area 0.88m²
SK35 – Daylight area 0.70m²
SK36 – Daylight area 0.90m²
SK38 – Daylight area 1.11m²
Finishes:
Internal - Laminated pinewood coated with impregnation.
White Paint (NCS standard colour: S 0500-N, nearest RAL standard colour: 9003).
Clear Lacquer.
External – Maintenance-free cover parts.
Lacquered Aluminium (NCS standard colour: S 7500-N, nearest RAL standard colour 7043).
Untreated Copper.
Titanium Zinc.
| Product url: | https://www.velux.co.uk/professional/bim-cad/vfa-b |
|---|---|
| Installation instructions: | https://weshare.velux.com/A/We%20Share/64117?encoding=UTF-8 |
| COBie Product Data Sheet: | |
| Product certification: | https://www.velux.co.uk/help-and-advice/ce-marking |
| Technical description: | https://velcdn.azureedge.net/-/media/marketing/uk/technical/bimcad/externa... |
| Instruction video: | https://www.youtube.com/watch?v=0dCIsypOS0E |
| GTIN code: |
The Qr code includes the static URL below and will bring you back to this page if scanned by a device like iPhone or smartphone
https://www.bimobject.com/en-us/velux/product/vfa-vfb
| Material main: | Wood |
|---|---|
| Material secondary: | Glass |
| Designed in: | Denmark |
| Manufactured in: | Denmark |
| BIMobject Category: | Windows - Roof Window |
|---|---|
| IFC classification: | Window |
| UNSPSC name: | Single hung windows |
| UNSPSC code: | 30171605 |
| Uniclass 1.4 Code: | L413 |
| Uniclass 1.4 Description: | Windows |
| Uniclass 2.0 Code: | PR-59-97 |
| Uniclass 2.0 Description: | Windows |
| Uniclass 2015 Code: | Pr_30_59_98 |
| Uniclass 2015 Description: | Window units |
| NBS Reference Code: | 20-30-72-80 |
| NBS Reference Description: | Roof Window Systems |
| CSI MasterFormat 2014 Code: | 08 50 00 |
| CSI MasterFormat 2014 Title: | Windows |
| OmniClass Number: | 23-17 13 15 15 |
| OmniClass Title: | Wood Single Hung Windows |
| CSI UniFormat II Code: | B2020 |
| CSI UniFormat II Title: | Exterior Windows |
