DEEP78 Downlight square without frame black 15° 4000K honeycomb

DEEP78 Downlight square without frame black 15° 4000K honeycomb

Archived

DEEP78 Downlight square without frame black 15° 4000K honeycomb

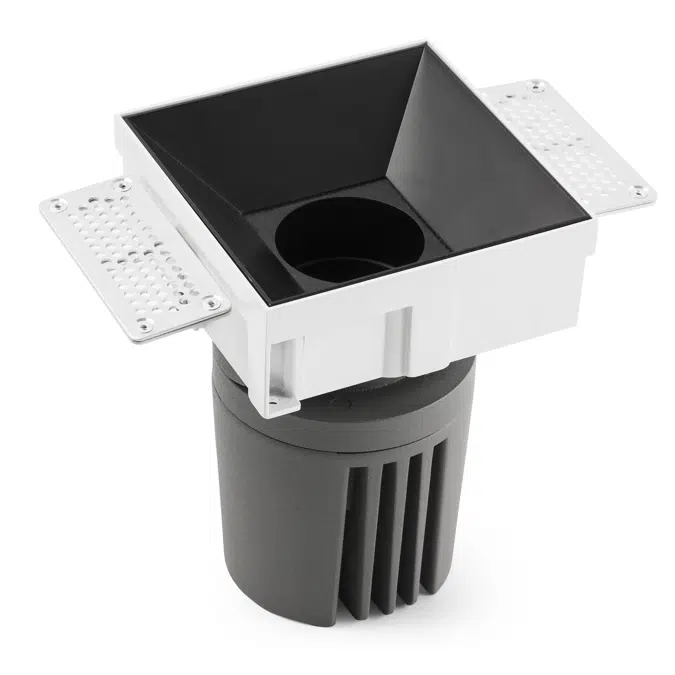

Square trimless black downlight. DEEP78 is a series of recessed luminaires designed for lighting retail and work spaces. The 15° version is ideal for spot lighting. With a heat temperature of 4000K, this downlight allows warm, comfortable atmospheres to be created. The Honeycomb diffuser allows a light projection with less glare.

Specification

Fixing: Ceiling
Body Material: Aluminium+PC
Body Finish: Black
Light Source: COB LED
Light Source Included: Yes
Power Max.: 18W
IP: 23
Type: III
Maximum Driver Info: 500mA CC
Colour Temperature: 4000K
CRI: 85
Lumens Max: 1240lm
Opening Degrees: 15

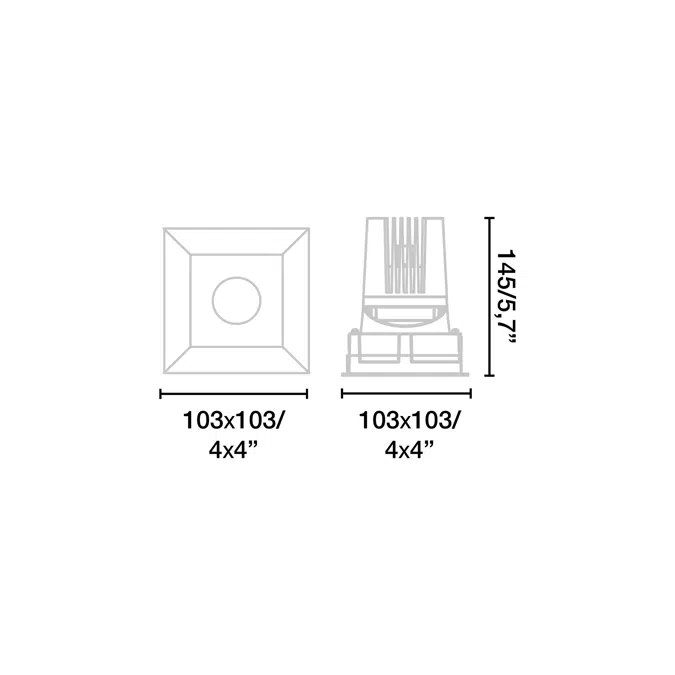

Total Height: 145
Length: 103
Depth: 103
Additional Rods Included in the Box: No
Reference: 3085084012H
Series: 30001
EAN: 8421776206755
Tariff Item: 9405119090

Technical specification

Unique ref.3085084012H_-_deep78-downlight-square-without-frame-black-15-deg-4000k-honeycomb
Product familyArchitectural
Product groupRecessed Lamp
TypeObject (single object)
Date of publishing2022-07-30
Edition number1

Links

Product urlhttps://faro.es/en/collection/deep78-downlight-square-without-frame-black-15-deg-4000k-honeycomb/
Installation instructionshttps://faro.es/content/comun/instructions.php?ref=3085084012H
Technical descriptionhttps://faro.es/content/comun/ficha.php?ref=3085084012H

Related

Material mainAluminium
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryLighting - Ceiling Mounted
IFC classificationLight Fixture
ETIM CodeEC001744
ETIM NameDownlight/spot/floodlight
UNSPSC nameDownlighting fixtures
UNSPSC code39111515
Uniclass 2015 CodePr_70_70_48_24
Uniclass 2015 DescriptionDownlights
CSI MasterFormat 2014 Code26 51 13
CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
OmniClass Number23-35 47 11
OmniClass TitleLighting Fixtures
CSI UniFormat II CodeD50
CSI UniFormat II TitleELECTRICAL
