Antea KR

ANTEA KR

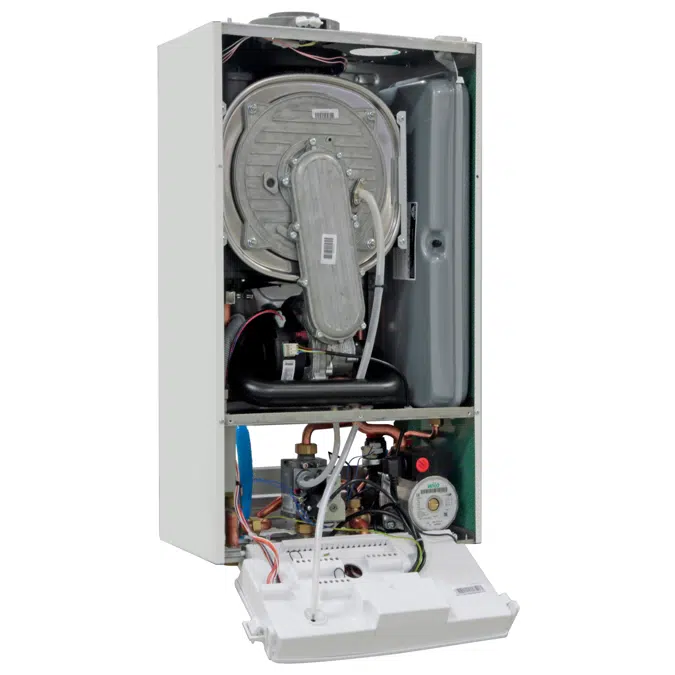

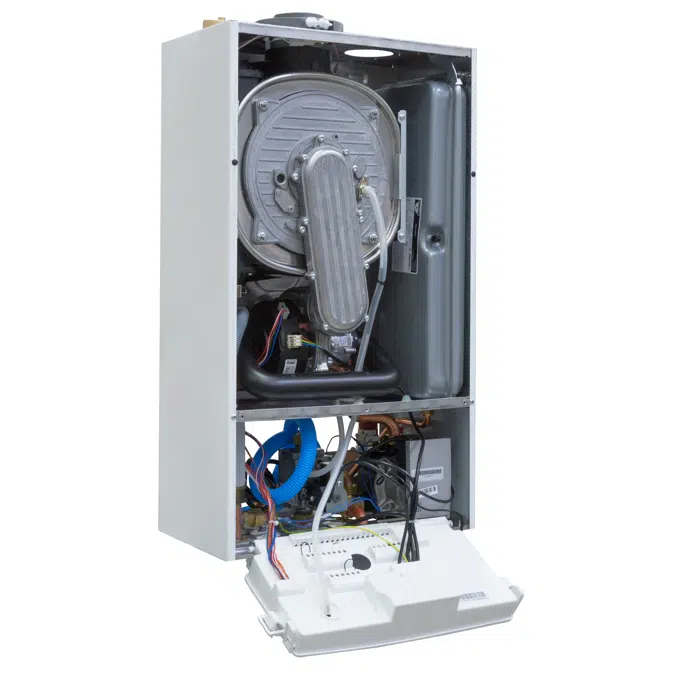

Antea KR is a wall-hung condensing boiler for heating only, electronically arranged for connection to an external water heater. The boiler uses condensing technology, which allows it to lower consumptions, boost performance, and reduce emissions of pollutants.

PLUS
- Ultra-compact
- Modulation ratio 1:9
- LCD user interface
- Additional relay managing 2 heating zones
- 9-litre expansion vessel
- Boiler hydraulic replacement kit

Specification

FEATURES
- Thermopolymer-covered stainless steel heat exchanger
- Fully pre-mixed burner
- Modulating gas valve with constant air-to-gas ratio
- Variable-speed combustion fan
- 3-speed pump with integrated air purging device
- Wide modulation range 1:9
- By-pass
- Stainless steel DHW plate heat exchanger
- Efficiency rating according to 92/42/EEC: ★★★★
- NOx emission class (EN 297):5
- Boiler hydraulic replacement kit available as optional equipment
- Electronic ignition, flame detection via ionization
- NTC temperature probes for central heating and DHW
- LCD interface with diagnostics
PREPARED FOR CONNECTION TO
- External probe
- Open Therm Remote Control
- Zone management board for high and low temperature heating
- 2 ambient probes

Technical specification

Unique ref.antea_kr
Product familyBoilers
Product groupWall-hung and floor-standing boilers
TypeObject (single object)
Date of publishing2019-09-17
Edition number1
Height (mm)700
Width (mm)400
Depth (mm)250

Links

Product urlhttps://www.fondital.com/ww/en/antea-kr-high-efficiency
Installation instructionshttps://www.fondital.com/media/files/attachments/243_IST_ANTEA_CONDENSING_ERP_GAR_AEE_EN_compressed.pdf
Technical descriptionhttps://www.fondital.com/media/files/attachments/243_IST_ANTEA_CONDENSING_ERP_GAR_AEE_EN_compressed.pdf

Material mainAluminium
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryHVAC - Boilers
IFC classificationBoiler
ETIM CodeEC000392
ETIM NameInstantaneous water heater
UNSPSC nameBoilers
UNSPSC code401020
Uniclass 2015 CodePr_60_60_08
Uniclass 2015 DescriptionBoilers
CSI MasterFormat 2014 Code23 52 16
CSI MasterFormat 2014 TitleCondensing Boilers
OmniClass Number23-33 11 13
OmniClass TitleCondensing Boilers
CSI UniFormat II CodeD3020
CSI UniFormat II TitleHeat Generating Systems
