Fondital

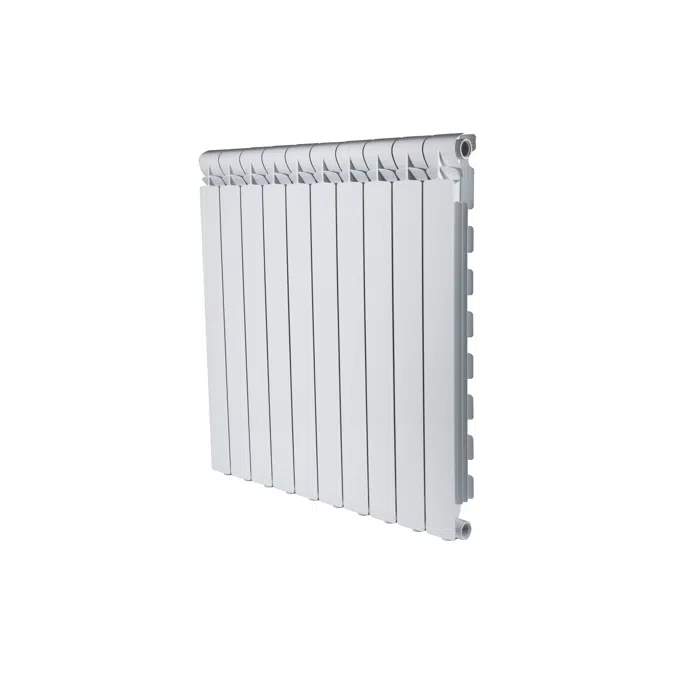

Calidor80 B2 800 mm

CALIDOR80 B2 is the result of a research project aimed at optimizing radiator performance in order to offer a product with excellent mechanical properties and high thermal conductivity. Designed to allow installation in any premises and blend in with any interior style, CALIDOR80 B2, entirely made of aluminium alloy, delivers excellent heating performance for homes and commercial buildings.

PLUS
Ideal for low-temperature applications;
Double coating for lasting finish: anaphoresis + powder coating;
100% MADE IN ITALY;
Light for easier handling and installation.

Specification

All models CALIDOR80 B2 are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.
Maximum working pressure: 1600 kpa (16 bar); Maximum working temperature: 120 °C
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the MRT Lab of the Milan Polytechnic, notified body №1695.
CALIDOR80 radiator:
Improved design with independenthydraulic connection;
Excellent weight/power ratio, which facilitates handling and installation;
80mm-deep, ideal for any environment;
Resistant over time, thanks to its double layer coating by anaphoresis with powder finish;
100% made in Italy;
Nominal pressure: 16 bar;
100% pressure tested at 24 bar;
Burst pressure: 60 bar;
Greater heat exchange = outstanding performances, low power consumption.

Technical specification

Unique ref.calidor80_b2_800_mm
Collection setRadiators
CollectionAluminium Die-Cast Radiators
TypeObject (single object)
Date of publishing2019-05-30
Edition number2
Height (mm)858
Depth (mm)77

Links

Product urlhttps://www.fondital.com/ww/en/calidor80_b2
Product certificationhttps://www.fondital.com/media/files/attachments/2922_DOP%20192%20Calidor%2080%20B2%20-%20FP%20-%2012%20novembre%202018%20-%20ed%202.pdf
Technical descriptionhttps://www.fondital.com/media/files/attachments/2866_CTC_PIEGH_CALIDOR80_B2_EN.pdf

Material mainAluminium
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryHVAC - Heaters
IFC classificationSpace Heater
UNSPSC nameRadiators
UNSPSC code40101801
Uniclass 1.4 CodeL75621
Uniclass 1.4 DescriptionRadiators
Uniclass 2.0 CodePR-60-36-73
Uniclass 2.0 DescriptionRadiators
Uniclass 2015 CodePr_70_60_36_73
Uniclass 2015 DescriptionRadiators
NBS Reference Code60-36-73
NBS Reference DescriptionRadiators
CSI MasterFormat 2014 Code23 82 29
CSI MasterFormat 2014 TitleRadiators
OmniClass Number23-33 15 00
CSI UniFormat II CodeD3020
CSI UniFormat II TitleHeat Generating Systems
