Itaca KRB

ITACA KRB

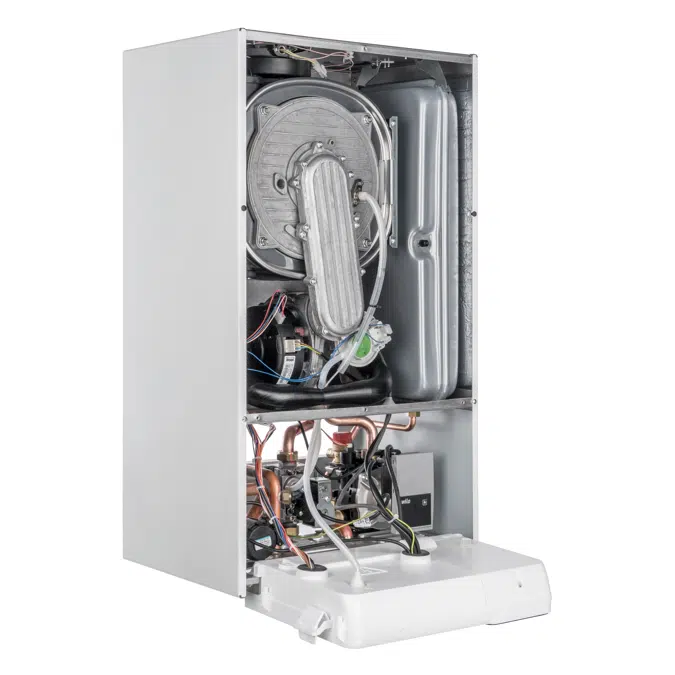

The Itaca KRB is a wall-hung condensing boiler for heating only, pre-set with 3-way valve for connection to an external water heater (option). The boiler uses condensing technology, which allows it to lower consumptions, boost performance, and reduce emissions of pollutants.

Compatible with SPOT smart thermostat

PLUS
- Modulation ratio 1:9
- Touch screen user interface
- Modulating pump
- Control of 2 heating zones fitted as standard via temperature probes
- Time control of water storage cylinder regeneration

Specification

FEATURES
- Thermopolymer-covered stainless steel heat exchanger
- Fully pre-mixed burner
- Modulating gas valve with constant air-to-gas ratio
- Variable-speed combustion fan
- Modulating pump with air-purging device
- 10-litre heating expansion vessel
- Ready for connection to a GSM modem for remote switching on and off and malfunction alarm (optional equipment)
- Multifunctional relay for connection to systems with zone valves or to solar systems or to remote boiler shutdown alarms
- Installation flexibility thanks to IPX5D electrical protection degree
- Efficiency rating according to 92/42/EEC: ★★★★
- NOx emission class (EN 297):5
- Boiler hydraulic replacement kit available as optional equipment
- Wide modulation range 1:9
- Electronic ignition, flame detection via ionization
- NTC temperature probes for central heating and DHW
- Integrated 3-way deviating valve
- By-pass
PREPARED FOR CONNECTION TO
- External probe
- Open Therm Remote Control
- Zone management board for high and low temperature heating
- 2 ambient probes
- GSM modem for remote switching on and off and malfunction alarm (optional equipment)
- External water heater for domestic hot water production
- Solar board

Technical specification

Unique ref.itaca_krb
Product familyBoilers
Product groupWall-hung and floor-standing boilers
TypeObject (single object)
Date of publishing2019-09-17
Edition number1
Height (mm)750
Width (mm)420
Depth (mm)315

Links

Product urlhttps://www.fondital.com/ww/en/itaca_krb_high_efficiency
Installation instructionshttps://www.fondital.com/media/files/attachments/260_IST_ITACA_CONDENSING_ERP_GAR_PARA_AEE_EN_compressed.pdf
Technical descriptionhttps://www.fondital.com/media/files/attachments/260_IST_ITACA_CONDENSING_ERP_GAR_PARA_AEE_EN_compressed.pdf

Material mainAluminium
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryHVAC - Boilers
IFC classificationBoiler
ETIM CodeEC000392
ETIM NameInstantaneous water heater
UNSPSC nameBoilers
UNSPSC code401020
Uniclass 2015 CodePr_60_60_08
Uniclass 2015 DescriptionBoilers
CSI MasterFormat 2014 Code23 52 16
CSI MasterFormat 2014 TitleCondensing Boilers
OmniClass Number23-33 11 13
OmniClass TitleCondensing Boilers
CSI UniFormat II CodeD3020
CSI UniFormat II TitleHeat Generating Systems
