GEALAN Fenster-Systeme

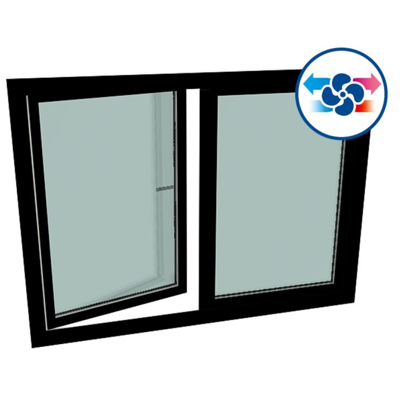

S9000 Double-leaf turn tilt window

Name: S9000 Double-leaf turn tilt window
Rating: 4.3 (32 reviews)

4.3(32 reviews)

The new GEALAN-System S9000 is an innovative window system for PVC-Windows and PVC-Doors with a construction depth of 82.5 mm. It combines the countless advantages of the central gasket and the overlap gasket. The large construction depth, six chamber profiles and three consistent sealing surfaces guarantee a outstanding thermal insulation. With the Profile combination 6016 / 6003 you can build the window even more high-class by using the additional possibilities like static dry glazing (STV®), intensive core insulation (IKD®) or acrylcolor.

Specification

• Thermal Insulation (in W/m2K): up to Uw = 0,77 (standard size) • Sound reduction window: up to Rw = 48 dB • Burglar-inhibiting window: RC1, RC2, RC2N • Construction depth: 82.5 mm • Iron mounting: concealed or visible • Maximum outer frame size: Width: 1550 mm Height: 2500 mm Please notice: width and height of he element are depending on the construction type! Optional available with: • IKD® (intensive core insulation) • STV® (static dry glazing) • Acrylcolor • Foiled (uni-colours and wood decor) • Aluminium shell • Overlap gasket Realizable are: • Passive house windows • KfW-55 windows • KfW-70 windows • Fixed windows System complementary elements like doorsets or lift and slide doors are available.

Technical specification

Unique ref.S9000_2-leaf_turn_tilt_window_6016_6003_6054
Product familyPVC Window
Product groupS9000 Windows
TypeObject (single object)
Date of publishing2018-03-06
Edition number1
Height (mm)2500
Width (mm)1550
Depth (mm)82.5

Links

Product urlhttps://www.gealan.de/en/products/systems/s-9000
Installation instructionshttps://www.gealan.de/en/module-content/prolounge/prolounge-dashboard
Instruction videohttps://youtu.be/wkiX1mbwlks
Product certificationhttps://www.gealan.de/en/module-content/prolounge/prolounge-dashboard
Technical descriptionhttps://www.gealan.de/en/module-content/prolounge/prolounge-dashboard

Material mainPVC
Material secondaryGlass
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryWindows - Single Hung Windows
IFC classificationWindow
UNSPSC nameWindows
UNSPSC code301716
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows
