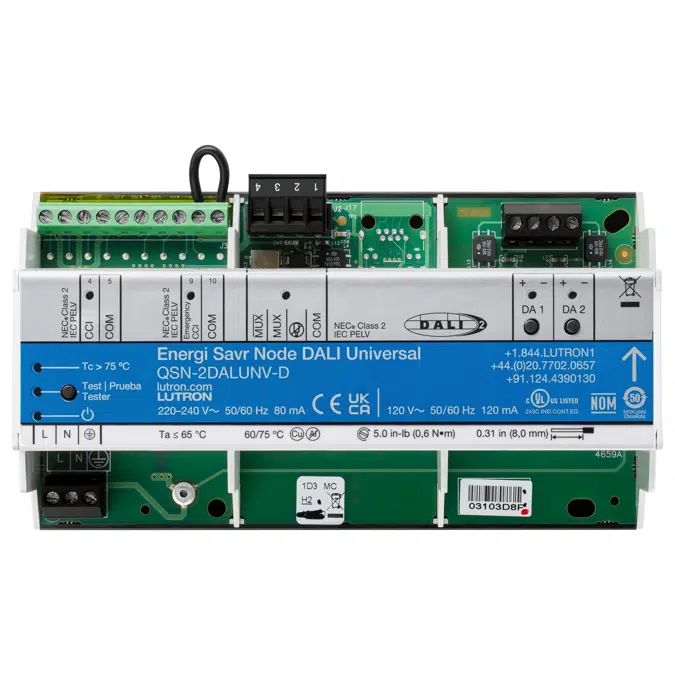

Energi Savr Node DALI Universal

Power

• QSN2-1DALUNV-D:

– 100 V~ 50 / 60 Hz 150 mA

– 120 V~ 50 / 60 Hz 120 mA

– 220-240 V~ 50 / 60 Hz 80 mA

– 277 V~ 50 / 60 Hz 70 mA

• QSN2-2DALUNV-D:

– 100 V~ 50 / 60 Hz 150 mA

– 120 V~ 50 / 60 Hz 120 mA

– 220-240 V~ 50 / 60 Hz 80 mA

– 277 V~ 50 / 60 Hz max 70 mA

• QSN2-2DALUNV-S:

– 120 V~ 50 / 60 Hz max 120 mA

– 277 V~ 50 / 60 Hz max 70 mA

• Lightning strike protection meets ANSI / IEEE standard 62.31-1980. Can withstand voltage surges of up to 6000 V~ and current surges of up to 3000 A

• DALI® Bus Output: 16 V- 128 mA guaranteed supply current, 250 mA maximum supply current per bus

Terminals (torque, wire gauge & type ratings)

• Mains wiring: 5 in-lbs (0.6 N•m) 18 AWG to 12 AWG (1.0 mm2 to 4.0 mm2)

• DALI® bus wiring: 5 in-lbs (0.6 N•m) 20 AWG to 12 AWG (0.5 mm2 to 4.0 mm2)

• QS link wiring: 5 in-lbs (0.6 N•m)

Power (terminal 1): 20 AWG to 12 AWG (0.5 mm2 to 4.0 mm2) (single wire, solid or stranded); 24 AWG to 18 AWG (0.25 mm2 to 1.0 mm2) (two wires, solid or stranded)

Data (terminals 3 and 4): 1 pair, twisted and screened, 20 AWG to 12 AWG (0.5 mm2 to 4.0 mm2) (single wire, solid or stranded); 24 AWG to 18 AWG (0.25 mm2 to 1.0 mm2) (two wires, solid or stranded)

• CCI and CCI emergency wiring: 5 in-lbs (0.6 N•m) 20 AWG to 16 AWG (0.5 mm² to 1.5 mm²) (single wire, solid or stranded); 24 AWG to 18 AWG (0.25 mm² to 1.0 mm²) (two wires, solid or stranded)

Standards

QSN2-1DALUNV-D, QSN2-2DALUNV-D

• Lutron Quality Systems registered to ISO 9001:2015

• IEC 60669-2-5

• DALI-2® certified - IEC 62386-101 and IEC62386-103 ed.2

• NOM Certified

• ICES-3(B) / NMB-3(B)

• FCC Part 15

• cULus Listed

• Evaluated by UL® for use in emergency lighting systems in accordance with UL924 when paired with a LUT-ELI-3PH (UL® file E234628)

QSN2-2DALUNV-S

• Lutron Quality Systems registered to ISO 9001:2015

• NOM Certified • ICES-3(B) / NMB-3(B)

• FCC Part 15

• cULus Listed

• Complies with requirements for use in other spaces used for environmental air (plenums) per NEC® 201 300.22(C)(3)

• Meets the Canadian National Building Code plenum requirements for a concealed space used as a plenum within a floor or roof assembly

Environment

• Ambient temperature operating range: 32 ºF to 104 ºF (0 ºC to 40 ºC)

• Relative humidity: less than 90% non-condensing

• For indoor use only
