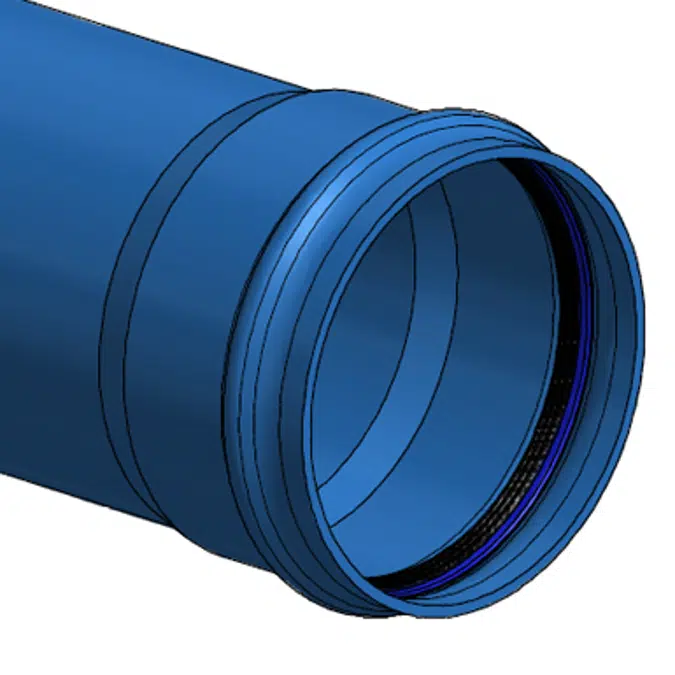

PN20 PVC-O TOM pipe - Water supply

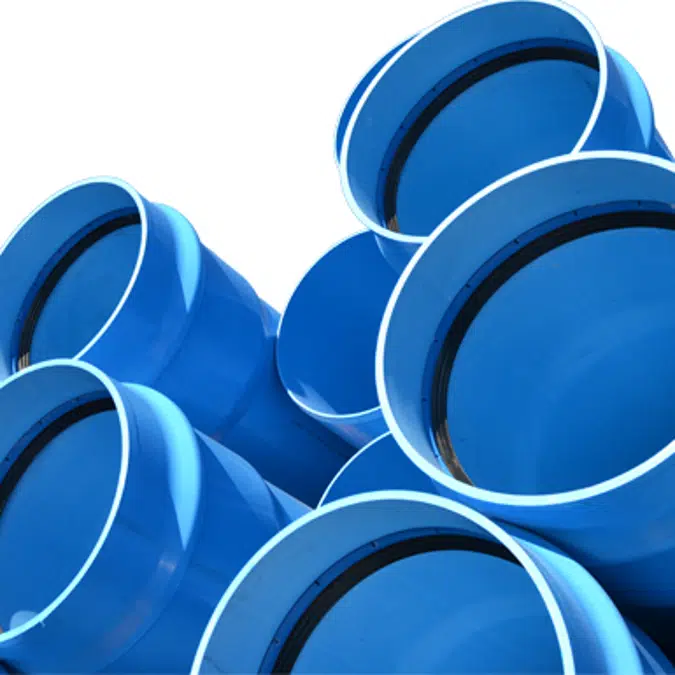

Molecor® is a Spanish company specialized in the development of Molecular Orientation Technology applied to the manufacture of TOM® Oriented PVC Pipes (PVC-O) for pressurized water pipelines. The TOM® PVC-O pipe is the optimum solution for the conveyance of water under pressure, due to benefits such as: high impact resistance, higher hydraulic capacity, better behavior against water hammer, high chemical resistance, complete watertight, lower pressure drop and easier installation. The TOM® Oriented PVC (PVC-O) pipe is an excellent alternative for water distribution networks due to its operating efficiency and low maintenance costs. Moreover, excellent physical, mechanical and chemical properties ensure reliability of supply and environmental protection.

Specification

The pipe is manufactured in a wide range of nominal pressures (12.5, 16, 20 and 25 bar) and diameters from 90 to 1000 mm.
TOM® is the best solution for the conveyance of water under pressure for irrigation systems, drinking water supply, reused water, industrial or fire protection lines, among other uses.

Technical specification

Unique ref.pn20_pvc_o_tom_pipe_water_supply
Product familyMolecor® PVC-O Pipes and Fittings for water under pressure
Product groupMolecor® PVC-O TOM® Pipe
TypeObject (single object)
Date of publishing2019-01-23
Edition number2

Links

Product urlhttp://molecor.com/en/pvc-o-pipes/technical-features
Installation instructionshttps://youtu.be/2IZONtCi2R0?t=2
Instruction videohttps://youtu.be/1rYOr7Sk0VE?t=3
Product certificationhttp://molecor.com/en/pvc-o-pipes/certifications
Technical descriptionhttp://molecor.com/sites/default/files/technicalreporten.pdf

Material mainPVC-O
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryEngineering & Infrastructure - Water
IFC classificationPipe Fitting
UNSPSC nameWater and wastewater treatment supply and disposal
UNSPSC code4710
Uniclass 2015 CodePr_65_52_07_58
Uniclass 2015 DescriptionOriented unplasticized polyvinyl chloride (PVC-O) pressure pipes and fittings
CSI MasterFormat 2014 Code40 05 31.13
CSI MasterFormat 2014 TitlePolyvinyl Chloride Process Pipe
OmniClass Number23-27 43 00
OmniClass TitlePipe Fittings
CSI UniFormat II CodeD3040
CSI UniFormat II TitleDistribution Systems
