FB SBBB Automatic Damper

Nordfab FB Ducting features a flat edge on the connecting ends. FB SBBB Dampers are easily connected to other duct components using FB Clips which can be secured around the flat edge on each end.

- Galvanised steel construction
- Damper should be connected to clean and dry compressed air
- Working pressure 5 to 8 bar
- Maximum temperature 80° C
- Voltage: 230 V AC (Coils for 24-110 V AC & DC optional)
- ATEX coil and solenoid optional
- Available in sizes Ø 080-400 mm, see article numbers below showing different control options

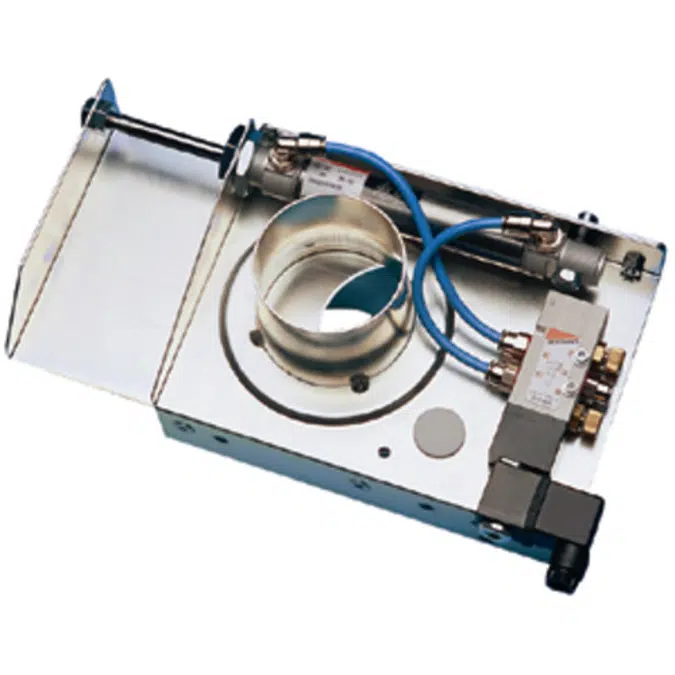

The SBBB is a circular compressed air powered automatic slide damper for rapid and tight closure. Since the damper is opened and closed automatically, extraction is always focused on the connections, extraction points, or machines currently in operation. This maximizes extraction power, with lower energy consumption as a bonus.

ORDER EXAMPLE:
Damper Automatic SBBB Galv 225FB 230VAC
